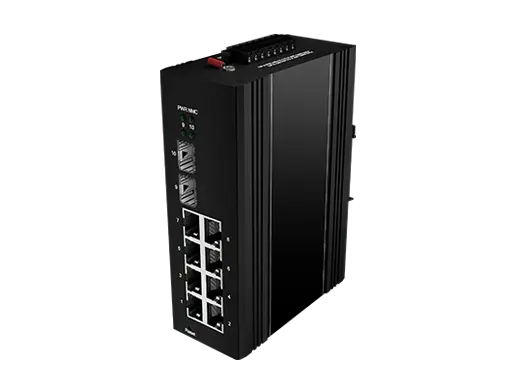

LA-IS7M-G0208P-Z is a managed industrial Ethernet switch, features 2 Gigabit optical ports and 8x10/100/1000Base-T ports. Engineered with a fan-less heat dissipation design and a wide operating temperature range, it offers exceptional industrial-grade quality, including resistance to extreme temperatures and lightning protection. The switch integrates comprehensive protocols for both switching and security and supports Ethernet Ring Protection Switching (ERPS), greatly enhancing networking flexibility as well as the reliability and security of industrial networks. It is specifically designed to meet the rigorous deployment requirements of rail transit, safe cities, intelligent transportation systems, and outdoor monitoring applications.
Features
● Input Voltage: DC48-58V
● Operating Temperature: -40℃ ~ +85℃
● Shell: IP40 protection, fan-less design
● Test Report: CE, RoHS, FCC
● Anti-static: 8KV-15KV
● MTBF: 100000 Hours
Fixed Port | 8x10/100/1000M RJ45, 2x1000m SFP |
Management Port | Support console |
Power Interface | Phoenix terminal, dual power redundancy |
LED Indicators | PWR, Link/ACT LED |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m (CAT5e, CAT6) |
Single Mode Optical Fiber | 20/40/60/80/100KM |
Multimode Optical Fiber | 550m |
Network Topology | |
Ring Topology | Support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Hybrid Topology | Support |
Electrical Specifications | |
Input Voltage | PoE: DC48-58V; non-PoE: DC12-58V |
Total Power Consumption | PoE <250W; non-PoE <10W |
PoE Support | |
PoE Port | 1-8 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1, 2, 3, 6 |
PoE Management | Support |
Layer 2 Switching | |
Switching Capacity | 36G |
Packet Forwarding Rate | 26.78Mpps |
MAC Address Table | 16K |
VLAN | Support 4K |
Buffer | 12M |
Forwarding Delay | <10us |
MDX/MIDX | Support |
Flow Control | Support |
Jumbo Frame | 10Kbytes |
Spanning Tree | Support STP/RSTP/MSTP |
Ring Protocol | Support ERPS |
Link Aggregation | Support 12 groups |
Multicast | Support IGMP Snooping |
Port Mirroring | Support |
Storm Control | Support |
Interface Counters | Support |
QINQ | Support |
802.1X | Support |
MAC Authentication | Support |
Port Isolation | Support |
Rmon | Support |
NTP Client | Support |
DHCP Client | Support |
DHCP Snooping | Support |
Ping/Tracert Detection | Support |
Dying Gasp | Support |
DDM | Support |
Port security | Support |
IP Source Guard | Support |
Device Scanning | Support |
Convergence | |
ACL | Support ACL 500 |
Support IP standard ACL | |
Support MAC expand ACL | |
Support IP expand ACL | |
QoS | Support QoS re-marking, priority mapping |
Support SP, WRR queue scheduling | |
Support engress rate-limited, egress rate-limit | |
Support Policy-based QoS | |
Management | |
CLI | Support |
Console | Support |
Telnet/SSH | Support |
WEB Management | Support |
Management IP | Support IPv4/IPv6 |
SNMP | Support SNMPv1/v2c/v3 |
User Management | Support |
System Log | Support |
Configuration File Download/Upload | Support |
Upgrade Firmware | Support |
Environment | |
Operating Temperature | -40℃~+85℃ |
Storage Temperature | -40℃~+85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Thermal Methods | Fan-less, natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product Size (W x H x D) | 48x104x143mm |
Installation Method | DIN-rail |
Weight | 0.58KG |
EMC & Ingress Protection | |
IP Level | IP40 |
Surge Protection of Power | IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us) |
RS | IEC 61000-4-3 Level 3 (10V/m) |
EFI | IEC 61000-4-4 Level 3 (1V/2V) |
CS | IEC 61000-4-6 Level 3 (10V/m) |
PFMF | IEC 61000-4-8 Level4(30A/m) |
DIP | IEC 61000-4-11 Level3 (10V) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free Fall | 0.5m |
Certification | |
Certificates | CE/FCC/RoHS |

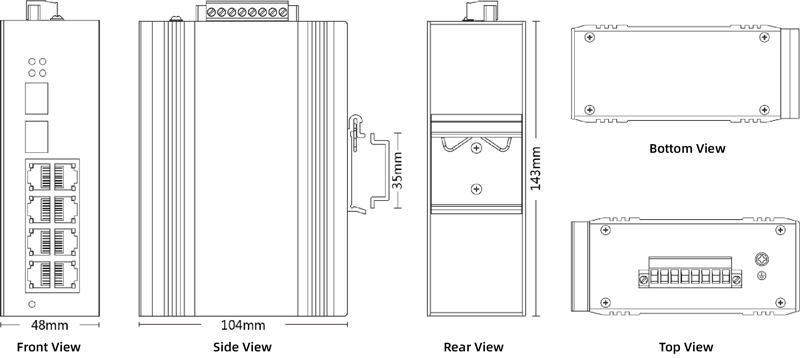

Dimension
Date | Version | Description | Download | ||
2025-03-10 | Industrial Managed PoE Switch 8x10/100/1000M RJ45, 2x1000M SFP |
