200Gb/s QSFP-DD ER4 40km Transceiver

LA-OT-200G-ER4
This product is a 200Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for optical communication applications.
Overview
Specifications
Connectivity Solutions
Models
Resources

This product is a 200Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for optical communication applications. The module converts 8 channels of 25Gb/s (NRZ) electrical input data to 4 channels of LAN-WDM optical signals, and multiplexes them into a single channel for 200Gb/s(PMA4) optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 200Gb/s(PMA4) optical input into 4 channels of WDM optical signals, and converts them to 8 channels of 25Gb/s (NRZ) electrical output data. The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE802.3ba. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. It can support up to 30km with 200G FEC and 40km with built-in PFEC. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


Features

● QSFP-DD MSA compliant

● 4 LWDM lanes MUX/DEMUX design

● Up to 40km transmission on single mode fiber (SMF) with built-in PFEC

● Operating case temperature: 0 to 70oC

● Maximum power consumption 12W

● Duplex LC connector

● RoHS compliant

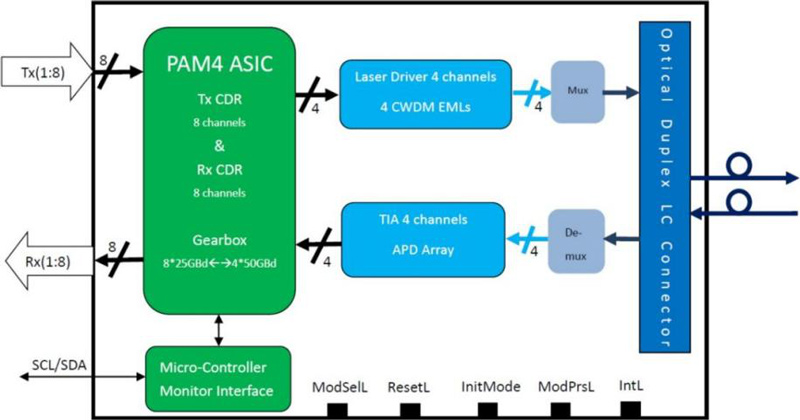

Transceiver Block Diagram

Transceiver Block Diagram of 200Gb/s QSFP-DD ER4 40km Transceiver

Figure 1. Transceiver Block Diagram


Pin Assignment and Deion

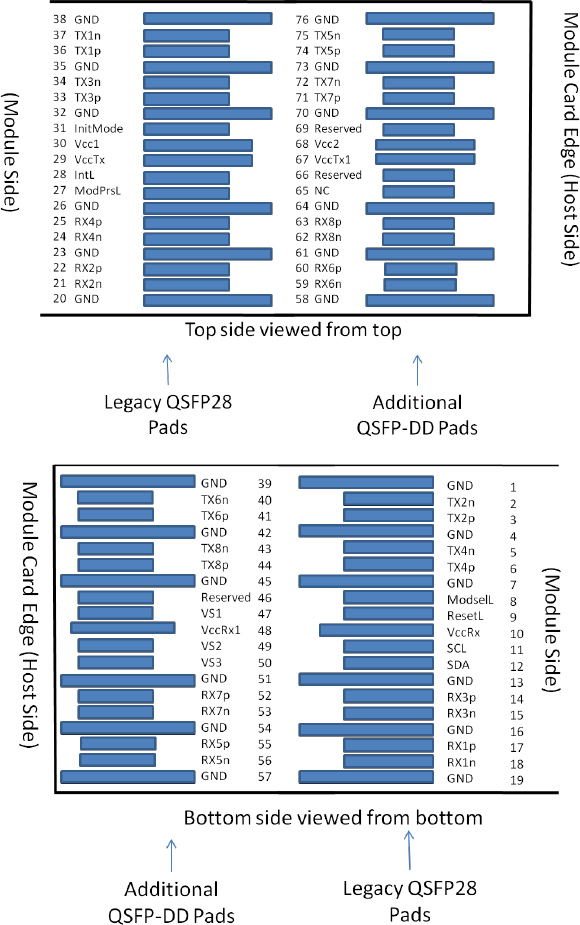

The electrical pinout of the QSFP-DD module is shown in Figure 2 below.



Figure 2. MSA Compliant Connector


Pin Definition

37

CML-I

Tx1n

Transmitter Inverted Data Input

3B


38


GND

Ground

1B

1

39


GND

Ground

1A

1

40

CML-I

Tx6n

Transmitter Inverted Data Input

3A


41

CML-I

Tx6p

Transmitter Non-Inverted Data

Input

3A


42


GND

Ground

1A

1

43

CML-I

Tx8n

Transmitter Inverted Data Input

3A


44

CML-I

Tx8p

Transmitter Non-Inverted Data

Input

3A


45


GND

Ground

1A

1

46


Reserved

For future use

3A

3

47


VS1

Module Vendor Specific 1

3A

3

48


VccRx1

3.3V Power Supply

2A

2

49


VS2

Module Vendor Specific 2

3A

3

50


VS3

Module Vendor Specific 3

3A

3

51


GND

Ground

1A

1

52

CML-O

Rx7p

Receiver Non-Inverted Data Output

3A


53

CML-O

Rx7n

Receiver Inverted Data Output

3A


54


GND

Ground

1A

1

55

CML-O

Rx5p

Receiver Non-Inverted Data Output

3A


56

CML-O

Rx5n

Receiver Inverted Data Output

3A


57


GND

Ground

1A

1

58


GND

Ground

1A

1

59

CML-O

Rx6n

Receiver Inverted Data Output

3A


60

CML-O

Rx6p

Receiver Non-Inverted Data Output

3A


61


GND

Ground

1A

1

62

CML-O

Rx8n

Receiver Inverted Data Output

3A


63

CML-O

Rx8p

Receiver Non-Inverted Data Output

3A


64


GND

Ground

1A

1

65


NC

No Connect

3A

3

66


Reserved

For future use

3A

3

67


VccTx1

3.3V Power Supply

2A

2

68


Vcc2

3.3V Power Supply

2A

2

69


Reserved

For Future Use

3A

3

70


GND

Ground

1A

1

71

CML-I

Tx7p

Transmitter Non-Inverted Data Input

3A


72

CML-I

Tx7n

Transmitter Inverted Data Input

3A


73


GND

Ground

1A

1

74

CML-I

Tx5p

Transmitter Non-Inverted Data Input

3A


75

CML-I

Tx5n

Transmitter Inverted Data Input

3A


76


GND

Ground

1A

1

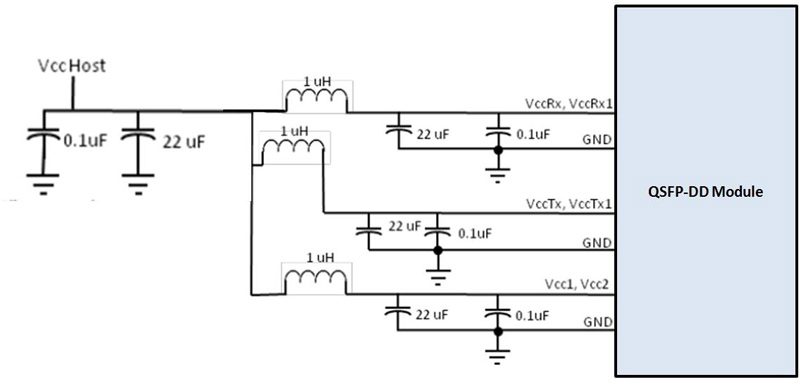

Recommended Power Supply Filter

Recommended Power Supply Filter of 200Gb/s QSFP-DD ER4 40km Transceiver

Figure 3. Recommended Power Supply Filter


Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Max

Units

Notes

Storage Temperature

TS

-40

85

degC


Operating Case

Temperature

TOP

0

70

degC


Power Supply Voltage

VCC

-0.5

3.6

V


Relative Humidity

(non-condensation)

RH

0

85

%


Damage Threshold,

each Lane

THd

-5.0


dBm



Recommended Operating Conditions and Power Supply Requirements

Parameter

Symbol

Min

Typical

Max

Units

Notes

Operating Case

Temperature

TOP

0


70

degC


Power Supply

Voltage

VCC

3.135

3.3

3.465

V


Data Rate, each Lane



26.5625


GBd

PAM4

Data Rate Accuracy


-100


100

ppm


Pre-FEC Bit Error Ratio




2.4x10-4



Post-FEC Bit Error Ratio




1x10-12


1

Link Distance

D

0.002


30

km

2

Link Distance

D

0.002


40

Km

3


Notes:

1. FEC provided by host system.

2. FEC required on host system to support maximum distance.

3. Built-in PFEC is required to support up to 40km

Electrical Characteristics

The following electrical acteristics are defined over the Recommended Operating Environment unless otherwise specified.


Parameter

Test Point

Min

Typical

Max

Units

Notes





12

SupplyCurrent

3.64

SignalingRate,eachLane

26.5625± 100ppm

Differential InputVoltageTolerance

900



1


Termination

Mismatch

10

DifferentialInputReturnLoss


IEEE802.3-

Equation

dB









TP1

2015

(83E-6)




<span font-size:14px;"="" style="box-sizing: border-box">dB







Module Stressed

Input Test

TP1a

See IEEE 802.3bs 120E.3.4.1


2





Single-ended

Voltage Tolerance

Range (Min)

TP1a

-0.4 to 3.3

V






DC Common

Mode Input

Voltage

TP1

-350


2850





Receiver (each Lane)





Signaling Rate,

each lane

TP4

26.5625 ± 100 ppm

GBd






Differential

Peak-to-Peak

Output Voltage

TP4



900





Differential

Termination

Mismatch

TP4



10






Differential

Output

Return

Loss


TP4

IEEE 802.3-

2015

Equation

(83E-2)







Common to

Differential

Mode

Conversion

Return Loss


TP4

IEEE 802.3-

2015

Equation

(83E-3)







Transition

Time,

20%

to

80%

TP4

9.5







Near-end

Eye

Symmetry

Mask

Width (ESMW)

TP4


0.265






Near-end

Eye

Height,

Differential

TP4

70







Far-end Eye

Symmetry

Mask

Width (ESMW)

TP4


0.2






Far-end

Eye

Height,

Differential

TP4

30







Far-end

Pre-cursor

ISI Ratio

TP4

-4.5


2.5





Common

Mode

Output

Voltage (Vcm)

TP4

-350


2850






Notes:

1. With the exception to IEEE 802.3bs 120E.3.1.2 that the pattern is PRBS31Q or scrambled idle.

2. Meets BER specified in IEEE 802.3bs 120E.1.1.

3. DC common mode voltage generated by the host. Specification includes effects of ground offset voltage.


Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Units

Notes


Wavelength

Assignment

L0

1294.53

1295.56

1296.59

nm


L1

1299.02

1300.05

1301.09

nm


L2

1303.54

1304.58

1305.63

nm


L3

1308.09

1309.14

1310.19

nm


Transmitter

Data Rate, each Lane


53.125 ± 100 ppm

GBd


Modulation Format


PAM4



Side-mode

Suppression Ratio

SMSR

30



dB


Total Average

Launch Power

PT



14.7

dBm


Average Launch Power,

each Lane

PAVG

-0.1


5.6

dBm


Outer Optical

Modulation

Amplitude (OMAouter),

each Lane

POMA

3.4


6.4

dBm


Launch Power in

OMAouter minus

TDECQ, each Lane


3



dB


Transmitter and

Dispersion Eye Closure

for PAM4, each Lane

TDECQ



3.2

dB


Extinction Ratio

ER

6



dB


Difference in

Launch Power

between any

Two Lanes

(OMAouter)





4


dB


RIN15.1OMA

RIN

-132



dB/Hz


Optical Return

Loss Tolerance

TOL



15.1

dB


Transmitter Reflectance

RT



-26

dB


Average Launch

Power of OFF

Transmitter,

each Lane

Poff



-30

dBm


Receiver

Data Rate, each Lane


53.125 ± 100 ppm

GBd


Modulation Format


PAM4



Sensitivity, each lane

Sen1

MAX (-11.1, SECQ-12.5)

dBm

For 30km

Sensitivity, each lane

Sen2

MAX (-14.1, SECQ-15.5)

dBm

For 40km

Stressed Conditions for Stress Receiver Sensitivity (Note 8)

Stressed Eye Closure

for PAM4 (SECQ),

Lane under Test



3.4


dB


SECQ – 10*log10(Ceq),

Lane under Test





dB


OMAouter of

each Aggressor Lane



-8


dBm



Digital Diagnostic Functions

Parameter

Symbol

Min

Max

Units

Notes

Temperature Monitor

Absolute Error


DMI_Temp


-3


3


degC

Over operating temperature range

Supply Voltage

Monitor

Absolute Error

DMI _VCC

-0.1

0.1

V

Over full operating

range

Channel RX Power

Monitor Absolute Error


DMI_RX_Ch


-2


2


dB


1

Channel Bias

Current Monitor

DMI_Ibias_Ch

-10%

10%

mA


Channel TX Power

Monitor

Absolute Error

DMI_TX_Ch

-2

2

dB

1

The following digital diagnostic acteristics are defined over the normal operating conditions unless otherwise specified.


Notes:

4. Due to measurement accuracy of different single mode fibers, there could be an additional +/-1 dB fluctuation, or a +/- 3 dB total accuracy.

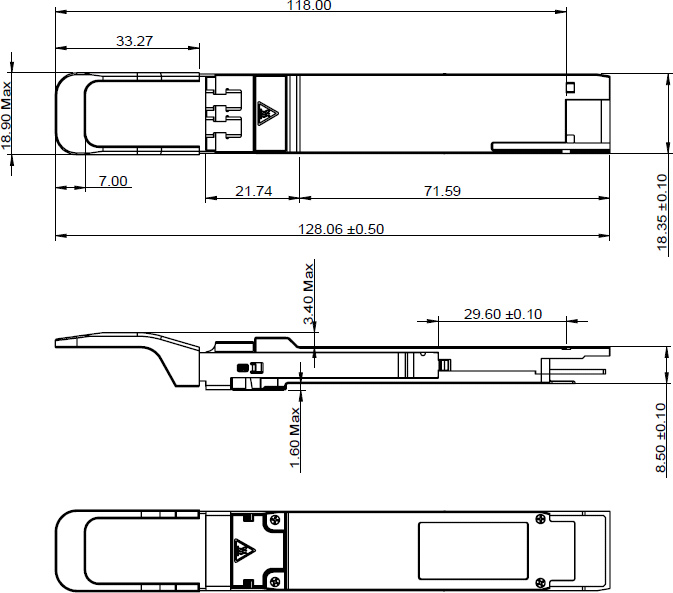

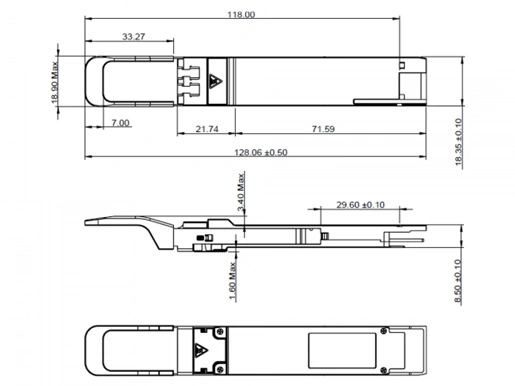

Outline Drawing (mm)

Outline Drawing of 200Gb/s QSFP-DD ER4 40km Transceiver


Applications

● 5G Network

● 200G Ethernet

● Enterprise networking
