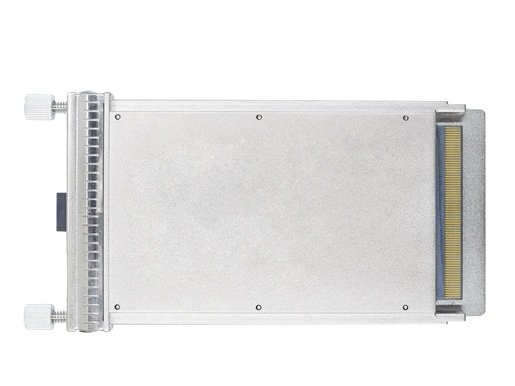

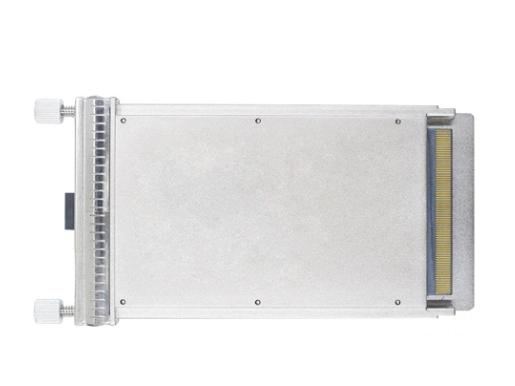

100Gb/s CFP ER4 40km

LA-CFP-ER4/OTU4
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-CFP-ER4/OTU4, 100G CFP2 ER4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.

Features

● Supports 103.1Gbps to 112Gbps bit rates
● Duplex LC connector
● Hot pluggable
● 4x28Gb/s DFB-based LAN-WDM transmitter
● 10x10G MLD electrical interface
● Applicable for 40km SMF connection
● Low power consumption, < 18W
● Digital Diagnostic Monitor Interface
● MDIO Communication Interface
● Compliant with 100GBASE-ER4 and OTU4
● Operating case temperature: Commercial:0 to 70 °C

Functional Diagram

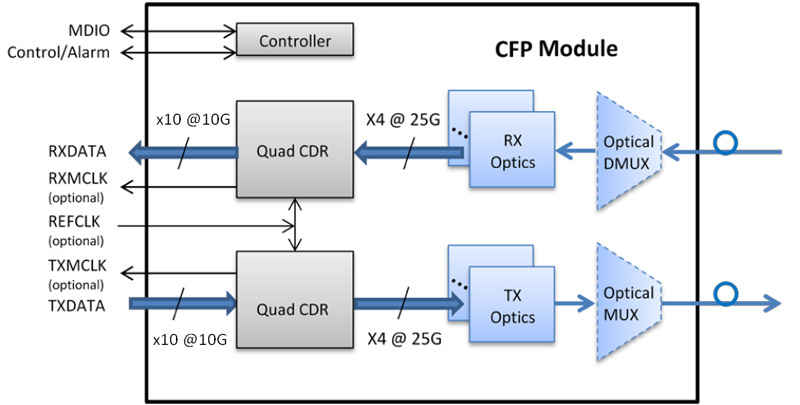

Functional Diagram of 100Gb/s CFP ER4 40km


Absolute Maximum Ratings

Parameter

Symbol

Min.

Max.

Unit

Note

Supply Voltage

Vcc

-0.5

4.0

V


Storage Temperature

TS

-40

85

°C


Relative Humidity

RH

0

85

%


Rx Damage Threshold,

per Lane

PRdmg

5.5


dBm



Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.


Recommended Operating Conditions

Parameter

Symbol

Min.

Typ

Max.

Unit

Note

Data Rate

DR


103.2

112

Gb/s


Supply Voltage

Vcc

3.14

3.3

3.46

V


Operating Case

Temp.

Tc

0


70

°C



Electrical Characteristics (Top=0~70℃, Vcc=3.2~3.4V)

(Tested under recommended operating conditions,unless otherwise noted)

Parameter

Symbol

Min

Typ

Max

Unit

Notes

Supply Current

Icc



5

A


Supply Voltage

Vcc

3.2


3.4

V


Transmitter

Signaling rate

per lane

DRPL



11.2

Gb/s


Input differential

impedance

Rin


100


Ω


Differential data

imput swing per lane

Vin,pp



760

mV


Data input rise

time tolerance

Tr

24



Ps

1

Data input fall

time tolerance

Tf

24



ps

1

Electrical input

eye mask defintion

{X1,X2}

{Y1,Y2}

{0.2,0.5}

{136,380}

UI

mV


Power Supply

Noise Tolerance

Vrip

Per CFP MSA Specification


Receiver

Signaling rate

per lane

DRPL



11.2

Gb/s


Differential data

output swing per lane

Vout,pp



760

mV


Data output rise

time tolerance

Tr

24

80


ps

1

Data output fall

time tolerance

Tf

24

80


ps

1

Electrical input

eye mask defintion

{X1,X2}

{Y1,Y2}

{0.2,0.5}

{136,380}

UI

mV


Power Supply

Noise Tolerance

Vrip

Per CFP MSA Specification



Notes:

1.20%~80%


Optical Characteristics (Top=0~70℃, Vcc=3.2~3.4V)

(Tested under recommended operating conditions,unless otherwise noted)

Parameter

Symbol

Unit

Min

Typ

Max

Notes

Transmitter

Signaling rate,

each lane


GBd

25.78125 ±100 ppm

100GBase-LR4,1

27.9525 ±20 ppm

OTU4,1

Four

Lane

Wavelength

Range

λ1

nm

1294.53

1295.56

1296.59


λ2

1299.02

1300.05

1301.09


λ3

1303.54

1304.58

1305.63


λ4

1308.09

1309.14

1310.19


Total

launch

power

Pout

dBm



10.5

100GBase-ER4



10

OTU4

Average

launch

power,

each

lane

Pavg

dBm

-2.9


2.9

100GBase-ER4,2

-6


4

OTU4,2

Optical

modulation

amplitude,

each

lane (OMA)2

OMA

dBm

-1.3


4.5


Difference in

launch

power

between

any

two

lanes

(OMA)


dB



5


Extinction ratio

ER

dB

4



100GBase-ER4

4


6.5

OTU4

Side-mode

suppression ratio

SMSR

dB

30




Transmitter

and

dispersion

penalty,

each lane

TDP

dB



2.2


Optical return

loss tolerance


dB



20


Transmitter

reflectance3


dB



–12


Transmitter

eye mask

 {X1, X2, X3, Y1, Y2, Y3}



{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}

100GBase-ER4

Optical Receiver

Characteristics

Receive

Rate

 for Each Lane


Gbps


25.78125

27.9525

3

Overload Input

Optical Power

Pmax

dBm

5.5




Average Receive

 Power for Each

Lane

Pin

dBm

-20.9


4.5

4

Receiver Sensitivity

(OMA)per lane

Psens1

dBm



-17.9


Stressed Sensitivity

(OMA) per lane

Psens2

dBm



-15.9


Return Loss

RL

dB

-26




Receiver

Electrical

3dB upper

cut off

frequency, per lane


GHz



31


Los De-Assert

Pd

dBm



-19


Los Assert

Pa

dBm



-21


Loss Hysteresis

Pd-Pa

dBm

1





Notes:

1. Transmitter consists of 4 lasers operating at 25.78Gb/s each for 100GBASE-LR, 27.95Gb/s each for OTU4

2. Minimum value is informative.

3. Receiver consists of 4 photodetectors operating at 25.78Gb/s each each for 100GBASE-LR, 27.95Gb/s each for OTU4

4. Minimum value is informative, equals min TxOMA with infinite ER and max channel ion loss.


Pin Description


Top View


Bottom View

148

GND

1

3.3V_GND

147

REFCLKn

2

3.3V_GND

146

REFCLKp

3

3.3V_GND

145

GND

4

3.3V_GND

144

N.C.

5

3.3V_GND

143

N.C.

6

3.3V

142

GND

7

3.3V

141

TX9n

8

3.3V

140

TX9p

9

3.3V

139

GND

10

3.3V

138

TX8n

11

3.3V

137

TX8p

12

3.3V

136

GND

13

3.3V

135

TX7n

14

3.3V

134

TX7p

15

3.3V

133

GND

16

3.3V_GND

132

TX6n

17

3.3V_GND

131

TX6p

18

3.3V_GND

130

GND

19

3.3V_GND

129

TX5n

20

3.3V_GND

128

TX5p

21

VND_IO_A

127

GND

22

VND_IO_B

126

TX4n

23

GND

125

TX4p

24

TX_MCLKn

124

GND

25

TX_MCLKp

123

TX3n

26

GND

122

TX3p

27

VND_IO_C

121

GND

28

VND_IO_D

120

TX2n

29

VND_IO_E

119

TX2p

30

PRG_CNTL1

118

GND

31

PRG_CNTL2

117

TX1n

32

PRG_CNTL3

116

TX1p

33

PRG_ALRM1

115

GND

34

PRG_ALRM2

114

TX0n

35

PRG_ALRM3

113

TX0p

36

TX_DIS

112

GND

37

MOD_LOPWR



Top View


Bottom View

111

GND

38

MOD_ABS

110

N.C.

39

MOD_RSTn

109

N.C.

40

RX_LOS

108

GND

41

GLB_ALRMn

107

RX9n

42

PRTADR4

106

RX9p

43

PRTADR3

105

GND

44

PRTADR2

104

RX8n

45

PRTADR1

103

RX8p

46

PRTADR0

102

GND

47

MDIO

101

RX7n

48

MDC

100

RX7p

49

GND

99

GND

50

VND_IO_F

98

RX6n

51

VND_IO_G

97

RX6p

52

GND

96

GND

53

VND_IO_H

95

RX5n

54

VND_IO_J

94

RX5p

55

3.3V_GND

93

GND

56

3.3V_GND

92

RX4n

57

3.3V_GND

91

RX4p

58

3.3V_GND

90

GND

59

3.3V_GND

89

RX3n

60

3.3V

88

RX3p

61

3.3V

87

GND

62

3.3V

86

RX2n

63

3.3V

85

RX2p

64

3.3V

84

GND

65

3.3V

83

RX1n

66

3.3V

82

RX1p

67

3.3V

81

GND

68

3.3V

80

RX0n

69

3.3V

79

RX0p

70

3.3V_GND

78

GND

71

3.3V_GND

77

RX_MCLKn

72

3.3V_GND

76

RX_MCLKp

73

3.3V_GND

75

GND

74

3.3V_GND


Pin

Name

I/O

Logic

Description

1

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

2

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

3

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

4

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

5

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

6

3.3V



3.3V Module Supply Voltage

7

3.3V



3.3V Module Supply Voltage

8

3.3V



3.3V Module Supply Voltage

9

3.3V



3.3V Module Supply Voltage

10

3.3V



3.3V Module Supply Voltage

11

3.3V



3.3V Module Supply Voltage

12

3.3V



3.3V Module Supply Voltage

13

3.3V



3.3V Module Supply Voltage

14

3.3V



3.3V Module Supply Voltage

15

3.3V



3.3V Module Supply Voltage

16

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

17

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

18

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

19

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

20

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

21

VND_IO_A

I/O


Module Vendor I/O A. Do Not Connect!

22

VND_IO_B

I/O


Module Vendor I/O B. Do Not Connect!

23

GND




24

TX_MCLKn

O


Freq = Optical rate/32. Utilized for optical waveform testing. Not for normal use.

25

TX_MCLKp

O


Freq = Optical rate/32. Utilized for optical waveform testing. Not for normal use.

26

GND




27

VND_IO_C

I/O


Module Vendor I/O C. Do Not Connect!


28

VND_IO_D

I/O


Module Vendor I/O D Do Not Connect!


29

VND_IO_E

I/O


Module Vendor I/O E. Do Not Connect!


30

PRG_CNTL1

I

LVCMOS w/PUR

Programmable Control 1 set over MDIO, Default: TRXIC_RSTn, TX & RX ICs reset, "0": reset; "1" or NC: enabled (i.e., not used).

31

PRG_CNTL2

I

LVCMOS w/PUR

Programmable Control 2 set over MDIO, Default: Hardware Interlock LSB, "00": ≤8W; "01": ≤16W; "10": ≤24W; "11" or NC: ≤32W (i.e., not used).

32

PRG_CNTL3

I

LVCMOS w/PUR

Programmable Control 3 set over MDIO, Default: Hardware Interlock LSB, "00": ≤8W; "01": ≤16W; "10": ≤24W; "11" or NC: ≤32W (i.e., not used).

33

PRG_ALRM1


O

LVCMOS

Programmable Alarm 1 set over MDIO, Default: HIPWR_ON, "1": module power up completed; "0": module not high powered up.

34

PRG_ALRM2


O

LVCMOS

Programmable Alarm 2 set over MDIO, Default: MOD_READY, "1": Ready; "0": not Ready.

35

PRG_ALRM3


O

LVCMOS

Programmable Alarm 3 set over MDIO, Default: MOD_FAULT, fault detected, "1": Fault; "0": No Fault.

36

TX_DIS

I

LVCMOS w/PUR

Transmitter Disable for all lanes, "1" or NC = transmitter disabled, "0" = transmitter enabled

37

MOD_LOPWR

I

LVCMOS w/PUR

Module Low Power Mode. "1" or NC: module in low power (safe) mode, "0": power-on enabled

38

MOD_ABS

O

GND

Module Absent. "1" or NC: module absent, "0": module present, Pull Up Resistor on Host

39

MOD_RSTn

I

LVCMOS w/PDR

Module Reset. "0" resets the module, "1" or NC = module enabled, Pull Down Resistor in Module

40

RX_LOS

O

LVCMOS

Receiver Loss of Optical Signal, "1": low optical signal, "0": normal condition

41

GLB_ALRMn

O

LVCMOS

Global Alarm. “0": alarm condition in any MDIO Alarm register, "1": no alarm condition, Open Drain, Pull Up Resistor on Host

42

PRTADR4

I

1.2V CMOS

MDIO Physical Port address bit 4

43

PRTADR3

I

1.2V CMOS

MDIO Physical Port address bit 3

44

PRTADR2

I

1.2V CMOS

MDIO Physical Port address bit 2

45

PRTADR1

I

1.2V CMOS

MDIO Physical Port address bit 1

46

PRTADR0

I

1.2V CMOS

MDIO Physical Port address bit 0

47

MDIO

I/O

1.2V CMOS

Management Data I/O bi-directional data (electrical specs as per 802.3ae and ba)

48

MDC

I

1.2V CMOS

Management Data Clock (electrical specs as per 802.3ae and ba)

49

GND




50

VND_IO_F

I/O


Module Vendor I/O F. Do Not Connect!

51

VND_IO_G

I/O


Module Vendor I/O G. Do Not Connect!

52

GND




53

VND_IO_H

I/O


Module Vendor I/O H. Do Not Connect!

54

VND_IO_J

I/O


Module Vendor I/O J. Do Not Connect!

55

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

56

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

57

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

58

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

59

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

60

3.3V



3.3V Module Supply Voltage

61

3.3V



3.3V Module Supply Voltage

62

3.3V



3.3V Module Supply Voltage

63

3.3V



3.3V Module Supply Voltage

64

3.3V



3.3V Module Supply Voltage

65

3.3V



3.3V Module Supply Voltage

66

3.3V



3.3V Module Supply Voltage

67

3.3V



3.3V Module Supply Voltage

68

3.3V



3.3V Module Supply Voltage

69

3.3V



3.3V Module Supply Voltage

70

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

71

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

72

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

73

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

74

3.3V_GND



3.3V Module Supply Voltage Return Ground, internally connected to Signal Ground

75

GND




76

RX_MCLKp



For optical waveform testing. Not for normal use.

77

RX_MCLKn



For optical waveform testing. Not for normal use.

78

GND




79

RX0p



SFI-5.0 interface

80

RX0n



SFI-5.0 interface

81

GND




82

RX1p



SFI-5.0 interface

83

RX1n



SFI-5.0 interface

84

GND




85

RX2p



SFI-5.0 interface

86

RX2n



SFI-5.0 interface

87

GND




88

RX3p



SFI-5.0 interface

89

RX3n



SFI-5.0 interface

90

GND




91

RX4p



SFI-5.0 interface

92

RX4n



SFI-5.0 interface

93

GND




94

RX5p



SFI-5.0 interface

95

RX5n



SFI-5.0 interface

96

GND




97

RX6p



SFI-5.0 interface

98

RX6n



SFI-5.0 interface

99

GND




100

RX7p



SFI-5.0 interface

101

RX7n



SFI-5.0 interface

102

GND




103

RX8p



SFI-5.0 interface

104

RX8n



SFI-5.0 interface

105

GND




106

RX9p



SFI-5.0 interface

107

RX9n



SFI-5.0 interface

108

GND




109

N.C.




110

N.C.




111

GND




112

GND




113

TX0p



SFI-5.0 interface

114

TX0n



SFI-5.0 interface

115

GND




116

TX1p



SFI-5.0 interface

117

TX1n



SFI-5.0 interface

118

GND




119

TX2p



SFI-5.0 interface

120

TX2n



SFI-5.0 interface

121

GND




122

TX3p



SFI-5.0 interface

123

TX3n



SFI-5.0 interface

124

GND




125

TX4p



SFI-5.0 interface

126

TX4n



SFI-5.0 interface

127

GND




128

TX5p



SFI-5.0 interface

129

TX5n



SFI-5.0 interface

130

GND




131

TX6p



SFI-5.0 interface

132

TX6n



SFI-5.0 interface

133

GND




134

TX7p



SFI-5.0 interface

135

TX7n



SFI-5.0 interface

136

GND




137

TX8p



SFI-5.0 interface

138

TX8n



SFI-5.0 interface

139

GND




140

TX9p



SFI-5.0 interface

141

TX9n



SFI-5.0 interface

142

GND




143

N.C.




144

N.C.




145

GND




146

REFCLKp



SFI-5.0 interface

147

REFCLKn



SFI-5.0 interface

148

GND





Notes:

1. Pin#75~148 belong to High Speed Electrical Pin,No Descriptions.


Package Dimensions

Package Dimensions of 100Gb/s CFP ER4 40km



Applications

● OTN OTU4

● 100GBASE-ER4 100G Ethernet

● Other Optical link


Date Version Description Download
2025-03-17 Datasheet_100G CFP ER4 OTU4 40km_LA-CFP-ER4_OTU4
How Can We Help You Today
Lastest News & Blog about Lanbras
OFC 2025 - Explore the Thriving and Ever
The 2025 Optical Fiber Communications Conference and Exhibition (OFC) is back to solidify its status as the premier global event for optical networking and communications. With over 13,500 expected re...
Mar 10, 2025
Learn More
MWC25 Barcelona - Where Technology and Commerce Converge
MWC Barcelona 2025 is the one time of year where everyone who’s anyone, in the world of connectivity, comes together under one roof. Tens of thousands of senior leaders from top global companies, int...
Feb 10, 2025
Learn More
INTERSEC DUBAI 2025
Intersec Dubai - The world’s leading trade fair for security, surveillance and fire protection.INTERSEC DUBAI 2025JAN 14–16 2025Dubai World Trade CenterIntersec will mark its 26th edition from 14–1...
Jan 05, 2025
Learn More
Follow us and the future of network.

Subscribe now, you can get over 100 valuable resources and white papers.

Follow us also can get the latest products and industry information in our members emails. Learn Details>>>

Lanao Communication Technology Limited.
Products and Solutions Inquiries
