| Part No. | LA-SWAI-G0105PB-S |

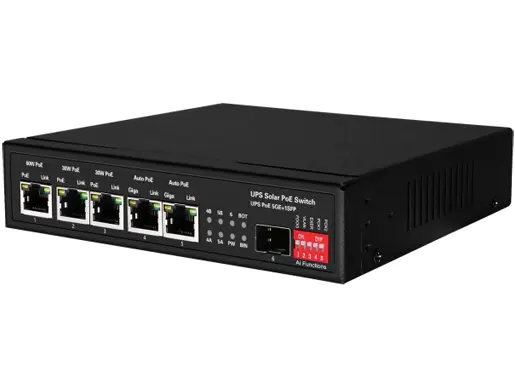

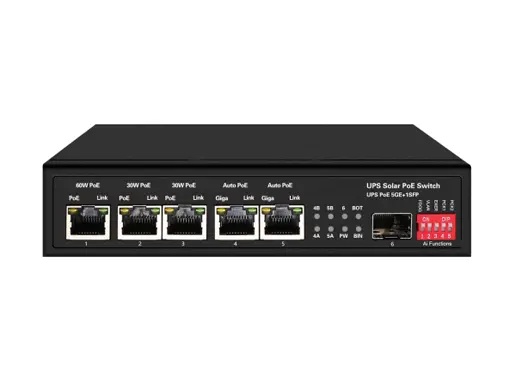

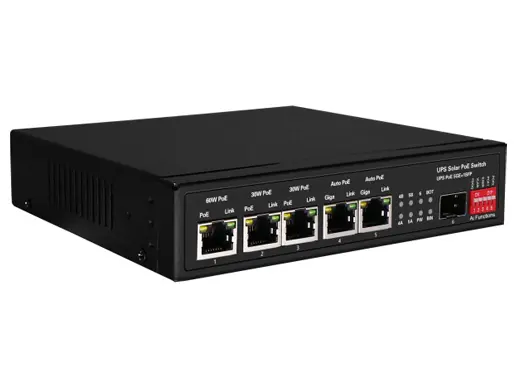

| Deion | 5+1 High-power Solar Energy PoE Switch |
| Port | 1*10/100/1000Base-TX 60W PoE port (Data/Power） |
| 2*10/100/1000Base-TX 30W PoE port (Data/power) |
| 2*10/100/1000Base-TX Auto PoE port (Data/power) |
| 1*1000M SFP |
| PoE Port | 1port: Ai version Hi-PoE, port output power MAX 60W |
| 2-3port: IEEE 802.3af/at, port output power MAX 30W |
| 4-5port: Auto AI version PoE port (supply power for 48V/24V devices), port output power MAX 25W |
| 1-5 port support PoE (first port output HiPoE_60W) |
| Function | Q_Lead-acid battery mode + L_Lithium battery mode |
| Network Protocol | IEEE 802.3 |
| IEEE 802.3i 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab1000BASE-T |
| IEEE 802.3x |
| IEEE 802.3z 1000BASE-X |
| IEEE 802.3af/at/PoE++ |
| Ai PSE |
| PoE Standard | IEEE802.3af/at/PoE++ |
| Port Specification | 10/100/1000BaseT(X)Auto |
| Transmission Mode | Store and Forward (full wire-speed) |
| Bandwidth | 12Gbps |
| Packet Forwarding | 8.64Mpps |
| MAC Address | 2K |
| Buffer | 2.5M |
| Transmission Distance | 10BASE-T: Cat3,4,5 UTP (≤250 meter) |
| 100BASE-TX: Cat5 or later UTP (150 meter) |
| 1000BASE-TX: Cat6 or later UTP (150 meter) |
| 1000BASE-SX: 62.5μm/50μm MMF(2m~550m) |
| 1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| Max. Support Transmission Distance 120KM for Single Mode Optical Fiber |
| Transmission Speed | Ethernet 10Mbps half-duplex, 20Mbps full duplex |
| Fast Ethernet 100Mbps half-duplex, 200Mbps full duplex |
| Gigabit Ethernet 2000Mbps full duplex |
| Power Pin | 48V power supply:12+36-; 24V power supply:45+78- |
| Power Input | Support 12V solar panel input(≤33V) or with12V batteries |
| Support 24V solar panel input(≤44V) or with 24V batteries |
| 12V battery DC input: DC 15-26V;24V battery DC input:26-32V |
| 12V/24V solar panel input power MAX 200W |
| Charging Function | Integrated fully automatic ging |
| Integrated battery protection function |
| Automatic Battery Voltage Recognition |
| Integrated Lithium Battery Automatic Activation System |
| Integrated Low Volume Start-up Protection System |
| Battery | Supporting 12V or 24V lead-acid batteries MAX 50AH, 5A |
| Supporting 12V or 24V lithium batteries MAX 50AH, 5A |
| LED Indicator | PW: Power LED; BIN: Battery ging indicator; BOT: Battery disging indicator; |
| 6: (SFP LED); 4A-5A: Port 4-5 48V PoE ON light; 4B-5B: Port 4-5 24V PoE ON light |
| CPU: System operation LED; VOUT: PoE output VOL normal indicator; |
| SIN: Solar panel input indicator; VIN: DC input indicator |
| Operating Temp. and | -20～+65°C; 10%～90% RH Non-condensation |
| Humidity |
| Storage Temp. and | -40～+70°C; 5%～90% RH Non-condensation |
| Humidity |
| Product Size (L*W*H) | 160mm*142mm*35mm |
| Packing Size (L*W*H) | 300mm*175mm*100mm |
| N.W. | 0.72kg (not including Solar energy panel, battery or power adapter) |
| Packaging | 25pcs/ctn, 23.5kgs, carton dim. 53.5*51*41cm |
| Installation | Rack-mount or wall mounting |
| Lightning Protection | 3KV 8/20us; IP30 |
| Certificate | CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; |
| Warranty | Whole device for 1 year (accessories not included) |
| Generator Control Panel |
| Battery | Lead-acid Battery | Lithium Battery |
| Battery Voltage | 12V | 24V | 12.6V | 25.2V |
| Changing Mode | PWM (Current and voltage limit-constant current- voltage limit-voltage and current limit-floating ge) | PWM (Current and voltage limit-constant current- voltage limit) |
| Self-consumption Supplement |
|
| Self-consumption Detection Voltage | <12.6V | <25.2V | 12.2V | 24.4V |
| Rated Charging Current | 5A | - |
| Floating Charge Current | 50mA-1000mA | - |
| Charging Ending | Floating ge timing reached | Rated voltage, ging current<10mA |
| Rated Disging Current | 6.5A | 3.6A | 8.5A | 4A |
| POE Output Current | MAX1.25A |
| POE Output Voltage | 48~56V |
| Maximum Photovoltaic Voltage | 32V | 44V | 32V | 44V |
| Maximum Charging Voltage | 14.7V | 29.6V | 12.6V | 25.2V |
| Floating Charge Voltage | 13.7V | 27.4V | - | - |
| Cut-off Disging Voltage | 10.1V | 20.2V | 8V | 16V |
| Recovery Disging Voltage | 12.4V | 25.8V | - | - |
| IIC Communication | IIC communication query and configuration of electricity, voltage, current, ging and disging time and operating status |
| Over-temperature Protection | Main board over temperature protection and battery over temperature(optional) |
| Input Protection | Over-current, over-voltage, delayed start-up and anti-reversal protection |
| Output Function | Over-current, over-voltage, short-circuit |
| Indicator | System normal operation indicator, battery indicator, normal input indicator, multi-function failure indicator |
| Operating Temperature | -30℃~+65℃ |
| Indicator |
| Indicator(front) | Status | Deion |
| Power LED: PW | Always ON | Normal |
| Always OFF | Power unconnected |
| Downlink LED | Orange(PoE) | Always ON | Powered devices connected and power supply normal |
| Green(Link) | Always OFF | No powered devices connected or no power supply |
| SFP LED: 6 | Always ON | SFP normally connected |
| Always OFF | SFP abnormally connected |
| Indicator(front) | Status | Deion | Indicator(front) | Status | Deion |
| 4B: 4 port 24V PoE | Always ON | 24V PoE power supplied | 5B: 5 port 24V PoE | Always ON | 24V PoE power supplied |
| Always OFF | 24V PoE no power supplied | Always OFF | 24V PoE no power supplied |
| 4A: 4 port 48V PoE | Always ON | 48V PoE power supplied | 5A: 5 port 48V PoE | Always ON | 48V PoE power supplied |
| Always OFF | 48V PoE no power supplied | Always OFF | 48V PoE no power supplied |
| BOT: Disging LED | Always ON | Battery in ging, electricity>15% | BIN: Charging LED | Always ON | Battery in ging, electricity<98% |
| Always OFF | Battery disging finished or not disging | Always OFF | Battery ging or not in ging |
| Flicker | 1/2S: electricity<15% | Flicker | To be fully ged, electricity≥98% |
| BOT, BIN OFF at once: ging finished |

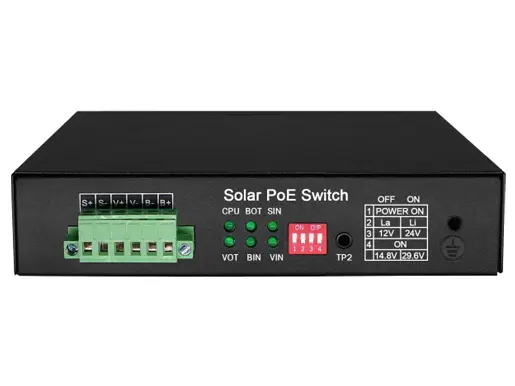

| Indicator(front) | Status | Deion | Indicator(front) | Status | Deion |
| CPU: System operation LED | Always ON | System crashed | SIN: Solar energy IN LED | Always ON | Solar energy input normal |
| Always OFF | System unsuccessfully started | Always OFF | Solar energy not input |
| Flicker | 1/2S: battery normal | Flicker | 1/2S: solar energy in delayed ging (time: 10mins) |
| 1/4S: battery failure | 1/4S: solar energy voltage input fault, ging stopped |
| BOT: Disging LED | Always ON | Battery in disging, electricity>15% | BIN: Charging LED | Always ON | Battery in ging, electricity<98% |
| Always OFF | Battery disging finished or not in disging |
| Always OFF | Battery ging finished or not in ging |
| Flicker | 1/2S: electricity<15% | Flicker | To be fully ged, electricity ≥98% |
| VOT: PoE voltage normal LED | Always ON | PoE voltage normal | VIN: DC IN LED | Always ON | DC IN normal |
| Always OFF | DC not input |
| Always OFF | PoE voltage abnormal | Flicker | DC IN voltage fault, ging stopped |
