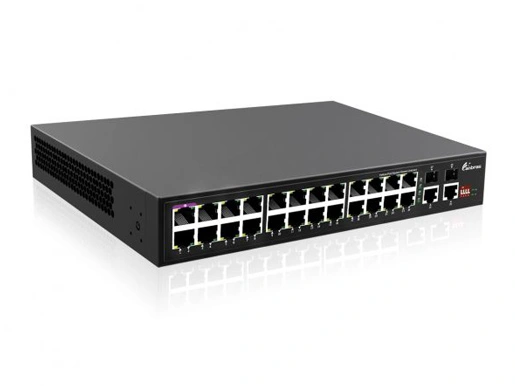

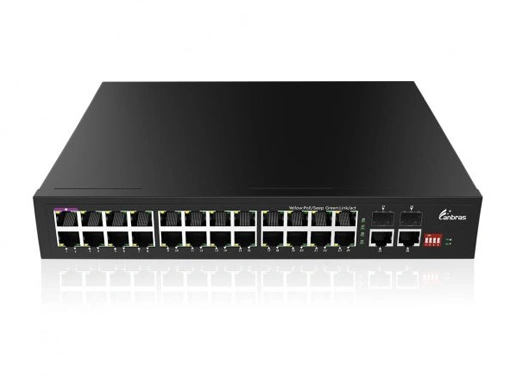

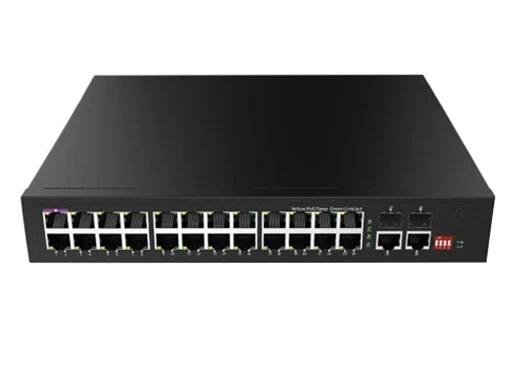

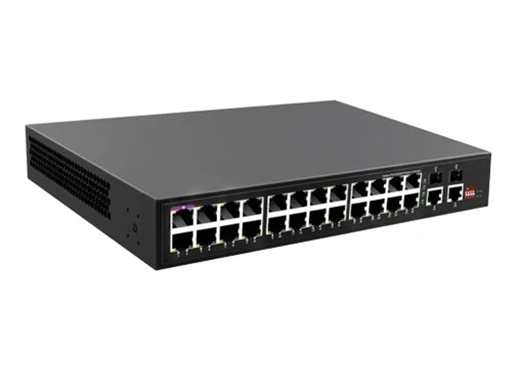

LA-SWAI-G0226P series is an unmanaged switch (supporting PoE function). It has 24 10/100/1000Mbps adaptive RJ45 ports and 2 SFP Gigabit optical ports & 2 Gigabit RJ45 ports. Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. Ports 1-24 can support PoE power supply, compliant with the IEEE802.3af/at standard, and can be used as a power-over-Ethernet device. It can automatically detect and identify the power-receiving device that meets the standard and power up via a network cable. Using store-and-forward mode, combined with QoS technology, to ensure that the bandwidth is effectively allocated to each port. It provides stable and reliable power and data transmission for high-power APs, network cameras, PTZ network dome cameras, PoE lighting and other security monitoring equipment.
PART NO | LA-SWAI-G0226P |
Provider Mode Ports | |
Fixed Port | 24*10/100/1000 Base-T with PoE |
2*1000Base-T & 2*1000Base-X Uplink | |
Power Interface | 100-220V/AC Interface |
LED Indicators | P, M, Link/ACT LED |
Cable Type & Transmission Distance | |
Twisted-pair | Non PoE: 0-100m (CAT5e, CAT6) |
PoE (1000Mbps): 0-100m (CAT5e, CAT6) | |
PoE (10Mbps): 0-250m (CAT5e, CAT6) | |
Mono-mode Optical Fiber | 20/40/60/80/100KM |
Multi-mode Optical Fiber | 550m |
Network Topology | |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Non-PoE Dialing Instructions | |
1: V Port | Ensure that the packets of the V port are forwarded preferentially when the network is congested |
2: Port Isolated | Port Isolated |
3: VLAN | VLAN |
4: Port Mirror | Port Mirror |
PoE Dialing Instructions | |
1: V Port (1-2port) | Ensure that the packets of the V port are forwarded preferentially when the network is congested |
When the power supply load is overloaded, ensure that the V port gives priority to power supply | |
2: Port Isolated | Port Isolated |
3: RPR | PoE remote PD restarts without sensing |
4: LDS | 250m long-distance switching (10Mbps) |
Electrical Specifications | |
Input Voltage | AC 100-240V 50/60Hz |
Total Power Consumption | Non PoE full load <10W |
PoE full load <280W | |
PoE Support (Optional) | |
PoE Port | 1-24 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1, 2, 3, 6 |
PoE Management | Support |
Layer 2 Switching | |
Switching Capacity | 56G |
Packet Forwarding Rate | 41.66Mpps |
MAC Address Table | 16K |
Buffer | 12M |
Forwarding Delay | <10us |
MDX/MIDX | Support |
Flow Control | Support |
Jumbo Frame | Support 10Kbytes |
Port Mirroring | Support |
Storm Control | Support |
Environment | |
Operating temperature | POE: -25℃~+60℃ |
Non POE: -25℃~+70℃ | |
Storage temperature | -40℃~+70℃ |
Relative humidity | 5%~95% non-condensing |
Thermal methods | Non PoE:fanless design, natural heat dissipation |
PoE:natural cooling by fan | |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product Size | 300*235*44mm |
Installation Method | Rack mount |
Weight | Non PoE: 2.2kg |
PoE: 3.0kg | |
EMC & Ingress Protection | |
Surge Protection of Power | IEC 61000-4-5 Level X (6KV) (8/20us) |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV) (10/700us) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free Fall | 0.5m |
Accessories | |
Accessories | Equipment, power cord, certificate, user manual, dust plug |
Ordering Information | |
---|---|
LA-SWAI-G0226PC | 26 x 10/100/1000Mbps RJ45 with PoE + 2 x Gigabit SFP Uplink, AC 100-240V 50/60HZ. |
LA-SWAI-G0226P | 24 x 10/100/1000Mbps RJ45 with PoE + 2 x Gigabit SFP & 2 x 10/100/1000Mbps RJ45 Uplink, AC 100-240V 50/60HZ. |
