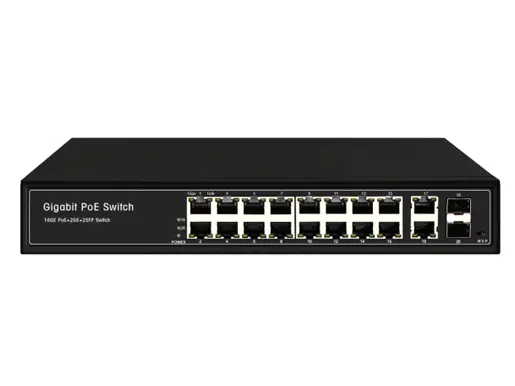

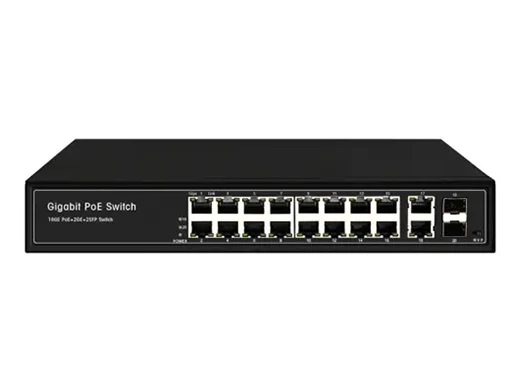

Unmanaged 16GE PoE + 2GE RJ45 +2GE SFP Switch

LA-SWAI-G020216PB-S300w
20-Port Gigabit PoE switch, using high-quality high-speed network IC and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standard.
Overview
Specifications
Connectivity Solutions
Models
Resources
20-Port Gigabit PoE switch, using high-quality high-speed network IC and the most stable PoE chip, The PoE port meets the 802.3af or 802.3at standard. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.


16 Gigabit PoE Ports + 2 Gigabit RJ45 Ports + 2
Gigabit SFP Ports Uplink;
Comply with IEEE 802.3, IEEE 802.3u,
IEEE802.3ab, IEEE802.3z standards;
Port 1 supports BT 90W;
Ethernet port 10/100/1000M rate auto adaptive;
Support Port Auto-flip (Auto MDI/MDIX);
AI DIP Function
N: Standard normal;
V: Port isolation;
P: PPTV, Flow control
Model No.LA-SWAI-G020216PB-S300w
Product NameUnmanaged 20 Ports Full Gigabit PoE Switch

16*10/100/1000Base-TX PoE port(Data/Power) 2*10/100/1000Base-TX uplink RJ45 port (Data)
Fixed Port2*1000M SFP

1-2 ports support IEEE802.3af/at/poe++/bt, max. 90W PoE out 3-16 ports support IEEE802.3af/at, max. 30W/port, PoE out
PoE Ports
PoE Pinaf/at: 12+ 36-; af/at/poe++/bt: 12+ 45+ 36- 78-
PoE BudgetMax. 300W

N: Standard normal V: Port isolation
DIPP: Flow control mode
Bandwidth56Gbps
Packet Forwarding41.67Mpps
MAC8K
Buffer4M

10BASE-T: Cat3, 4, 5 UTP (≤250 meters)

100BASE-TX: Cat5 or later UTP (150 meters) 1000BASE-TX: Cat6 or later UTP (150 meters)
Transmission DistanceSFP: 1000M single and multimode optical module with maximum distance ≤ 120km

POWER: Power LED

19-20: SFP connection indicator
LED IndicatorUplink: 10/100M=Green Link, 1000M=Orange Link Downlink: 10/100M=Green Link, 1000M=Orange Link
PowerBuilt-in power AC: 100-240VAC, 50-60Hz, 3.7A, Max. 308W
Operating Temperature/Humidity-10~+55°C; 5%~90% RH Non-condensation
Storage Temperature/Humidity-40~+75°C; 5%~95% RH Non-condensation
Product/Packing Size (L*W*H)293mm*190mm*45mm /410mm*278mm*95mm
N.W/G. W (kg)1.7kgs/2.4kgs
Package490*425*570mm/25.45KGs/10PCs
Lightning Protection Level6KV 8/20us; IP30
InstallationRack-mount
CertificateCE-EMC EN55032; CE-LVD EN62368; FCC Part 15 Class B; RoHS
Warranty1 year


  • Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
  • Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
  • Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.

  • Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
