Ultra-compact Gigabit Media Converter

LA-MC1N-G0101Mini
This is the ultra-compact plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-MC1N-G0101Mini is the ultra-compact plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-compact size (79*23*18mm) and ultra-light weight (57g).


This ultra-compact media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.  So, this Ultra-compact media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available. For applications not utilizing USB power, this converter is also available with a 5V AC/DC power adapter, providing compatibility with electrical outlet types.

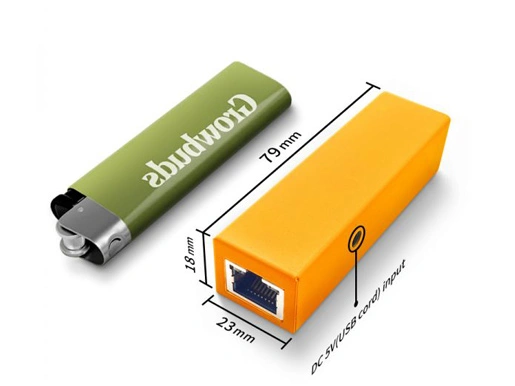

● Ultra-compact size (79*23*18mm) and ultra-light weight (57 g)

● 10/100/1000Base-T to 1000Base-X

● SFP slot for flexible long-distance transmission

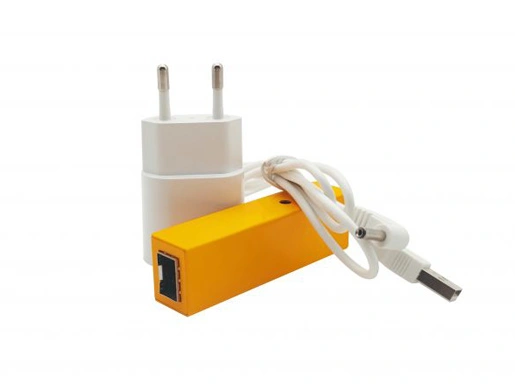

● USB powered for easy portability or used with the included power adaptor

● Auto-negotiation

● Auto-MDI/MDIX

● Plug-and-Play

● Lower jitter

● Lower latency

● Ultra low power dissipation<1.2W

● Support Jumbo frame 10Kbytes

● Support watchdog, automatically reboot if frozen

● Operation temperature: -20℃~70℃


Port Interface

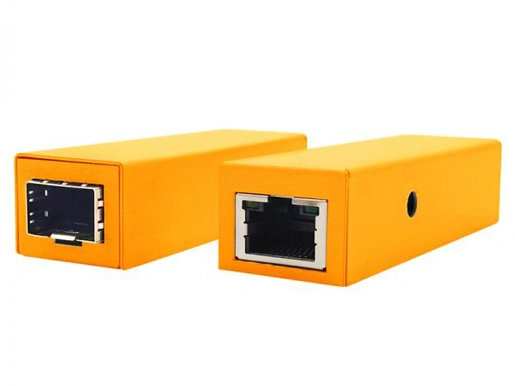

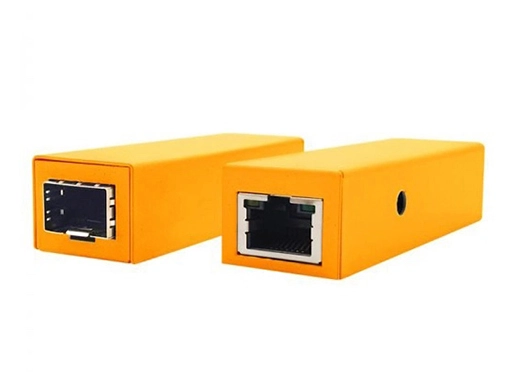

Fixed port1*1000 Base-X SFP, 1*10/100/1000 Base-T
Power interfaceDC jack
LED Indicators
Green LEDlink/act indicator
Yellow LED1000M link indicator
Cable-type &Transmission Distance
Twisted-pair0-100m(CAT5e,CAT6)
SFP slotDepending on the SFP module
Electrical & Layer 2 Specifications
Input voltageDC 5 V
Total Power consumptionFull load≤1.2W
MDX/MIDXSupport
Jumbo FrameSupport 10Kbytes
WatchdogSupport
Environment
Operating temperature-20℃~70℃
Storage temperature-40℃~85℃
Relative humidity5%~95% (non-condensing)
Thermal methodsFan-less,natural cooling
MTBF100,000 hours
Protection & Certification
Surge protection of Ethernet portIEC 61000-4-5 Level 3(2KV)(10/700us)
ESDIEC 61000-4-2 Level 4 (8K/15K)
Free fall0.5m
CertificationCE/FCC/RoHS
Mechanical Dimensions
Product size79*23*18mm
Installation Methoddesktop
Weight57 g

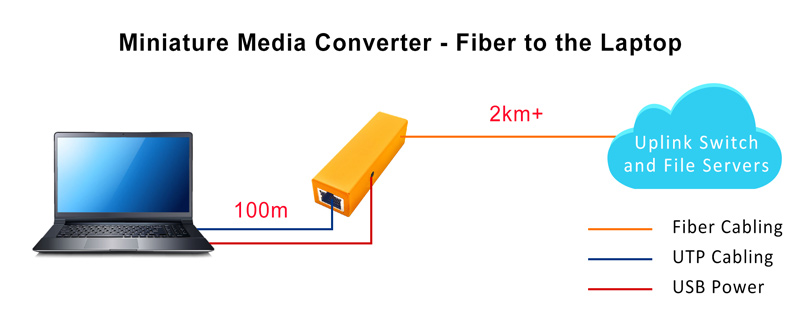

Connectivity Solutions of Ultra-compact Gigabit Media Converter

Ordering Information
LA-MC1N-G0101MiniUltra-compact 10/100/1000Base-T to 1000Base-X media converter, 1*Gigabit SFP port + 1*10/100/1000M RJ45 port, without SFP module, DC 5V power supply


Date Version Description Download
2025-03-14 LA-MC1N-G0101Mini
