Name: Smart Light Pole Gateway
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

Features

● Industrial-grade AIOT main control chip

● Quad-core Cortex-A7 processor @1.2GHz clock

● Support eMMC memory and TF card expansion storage

● Expansion supports 4~16 RS485/RS232 interfaces

● 8-port full gigabit non-blocking switching, all support POE

● Standard HDMI output and 3.5mm audio output

● Support 4G/5G/WIFI

● Support GPS/Beidou positioning, Lora, Zigbee

● Support an expansion card slot, which can expand AI functions (customized functions)

● All front-facing outlets are easy to install and maintain

● Dimensions (LxWxH): 310x130x70mmSupport bt 60W High Power

Processor	Quad-core Cortex-A7 processor @1.2GHz clock
DRAM	8GB
FLASH	4GB
External Storage	Support TF expansion card
Real-time Clock	Support backup battery for more than 3 years
Operating Temperature	-40~75℃
Installation Method	Wall-mounted ear mounting
Power Input	AC100-240V 50/60HZ
LAN Interface	8 channels 10/100/1000M
SFP Interface	2 channels 1000M fiber
AC Output	Support 3 channels AC outputs
DC Output	Supports DC12V and DC24V 3 channels outputs each
POE	Support AF/AT mode
RS485/S232	4 channels (expandable to 16 channels)
Uplink	Support WIFI/4G/5G
Downlink	Support Lora/Zigbee
Switching Value	2 channels DI, 1 channel DO
Analog	Support
USB	Support USB HOST
HDMI	Support
Audio Interface	Support
BDS/GPS	Support
Display Screen	Support OLED display screen
Reset	Support
Power-off Alarm	Support
Data Retention	Local data: over 48 hours, alarm data: over 120 days
AI Analysis	Support AI expansion card
Cloud Edge Collaboration	Support event linkage
Northbound Protocol	Support HTTP/MQTT/WebSocket
Southbound Protocol	Support Modebus/MQTT

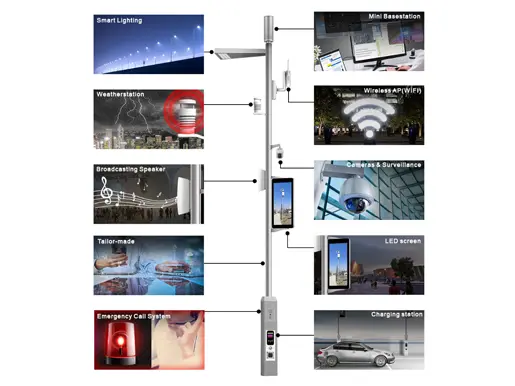

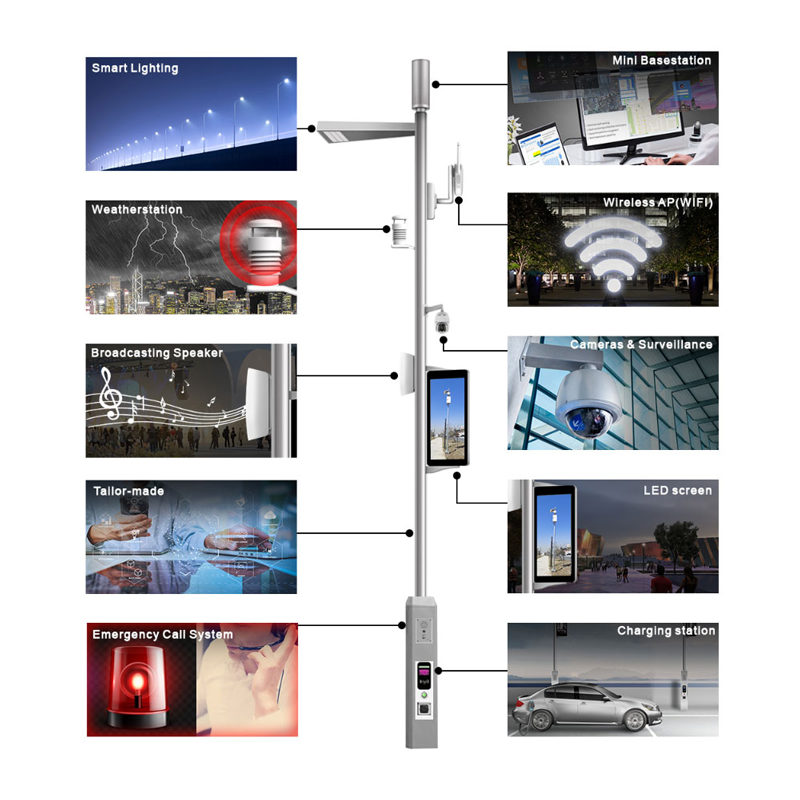

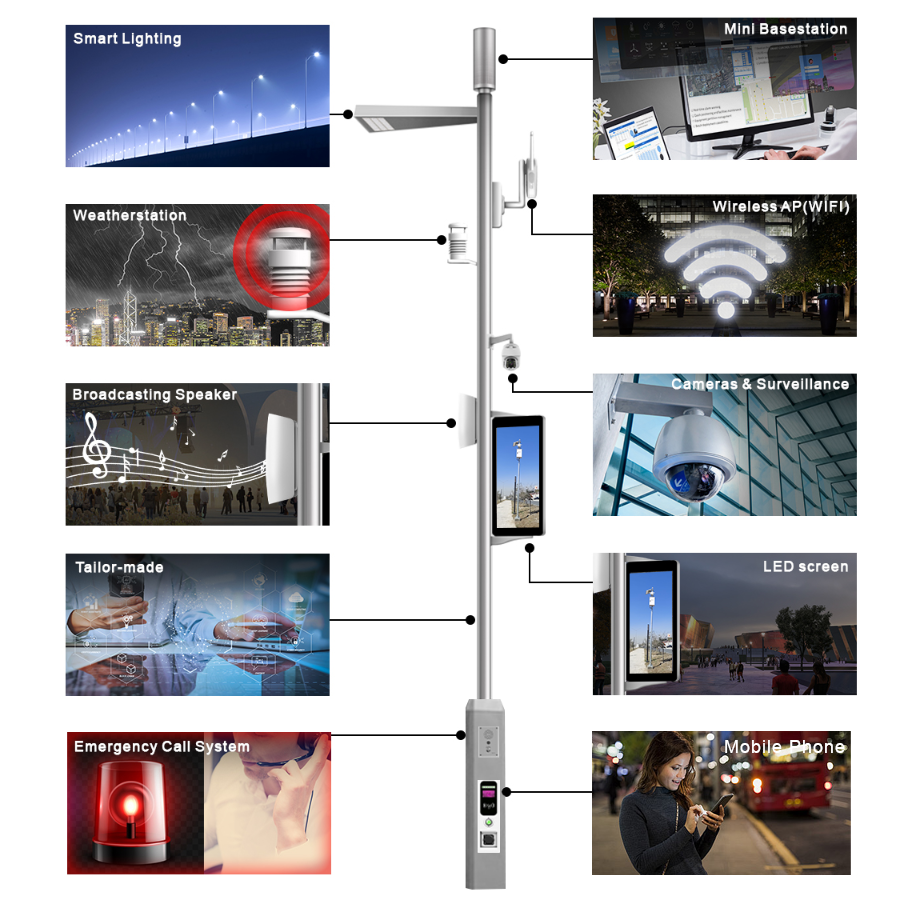

Connectivity Solutions of Smart Light Pole Gateway

Ordering Information
LA-GWAI-Z	Smart Light Pole Gateway

Date	Version	Description			Download
2025-03-14		Datasheet_Smart Light Pole Gateway_LA-GWAI-Z
