Smart Gateway

LA-SmartG
LA-SmartG is a high-performance, cost-effective, flexible and scalable IoT gateway system composed of a new generation of dual-core A7 processor platform + deeply optimized Linux system for the follow...
Overview
Specifications
Connectivity Solutions
Models
Resources

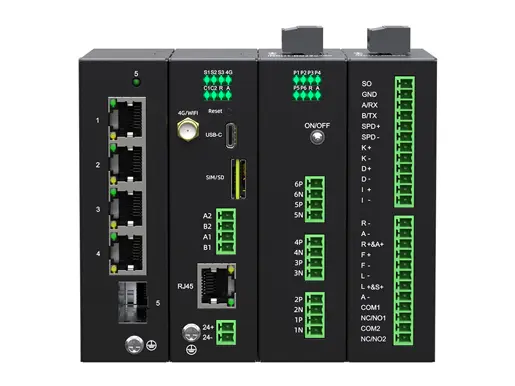

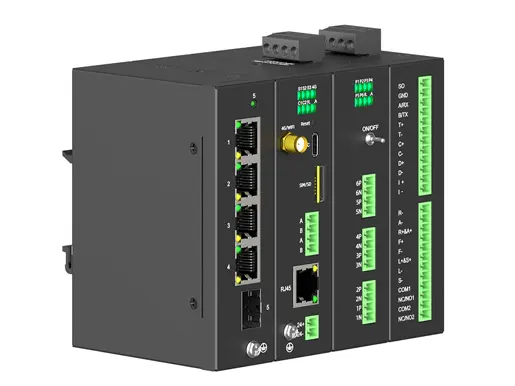

LA-SmartG is a high-performance, cost-effective, flexible and scalable IoT gateway system composed of a new generation of dual-core A7 processor platform + deeply optimized Linux system for the following occasions:

  • Industrial IoT

  • Smart City

  • Smart box

  • Smart Agriculture

  • Intelligent power management, etc.

The terminal platform mainly consists of four modules:

● Main control unit: realizes the IoT gateway function

● Broadband switching unit: a cloud platform that can remotely control and configure Ethernet interfaces.
● Intelligent cabinet management (IO) unit: collecting cabinet information, such as door opening and closing, water intake, temperature and controlling necessary mechanisms - alarm indication, fan, etc.

● Power supply management unit: implements power control of other equipment, collection of power consumption information


* All of these modules are managed by the main module, and accept the unified scheduling, management and remote data visualization of the cloud platform.

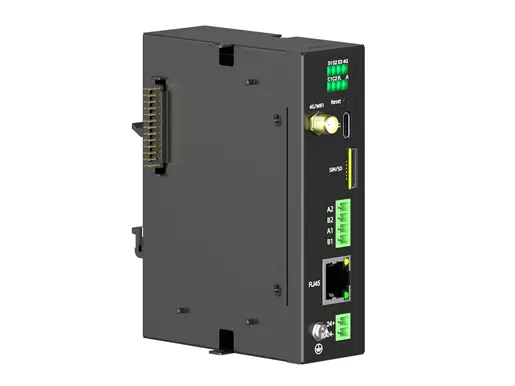

Main Control Module Specification

LA-SmartG-MC

Parameter

Note

Processor

Dual-core Cortex-A7@1GHz


Storage

1GBit

N Flash

RAM

64MByte

DDR2

RS485

1CH


RS232/485

1CH


Ethernet Port

1CH

10M/100Mbps

Debug/Test Port

USB TYPE-C


Antenna Interface

2*SMA


4G Network

Support


GPS

Support


LORA

Support 1CH


Hardware RTC

Support


Hardware Watchdog

Support


Digital Interface

2CH Optocoupler Isolation

Input/Output customization

Power Supply

24VD


Installation Method

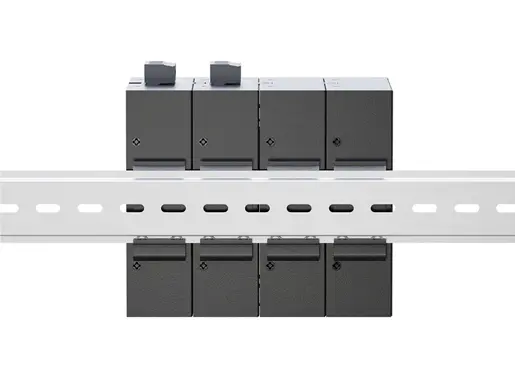

35mm Industrial Din-rail



Main Module Features

● Support 2 on the left, 5 on the right, expansion up to 7 modules

● Built-in temperature or temperature/humidity detection

● Support module auto-discovery

● Support module auto-configuration

● Built-in large-capacity energy storage capacitor to ensure that data is not lost when the system is powered off

● RS232/485 auto adaptation

● Industrial-grade interface protection

● Power supply directly from the debug port (When connecting USB to computer, 24VDC can not be powered on.)


Power Module Specification

LA-SmartG-PM

Type A

Type B

Number of Management Channels

6CH

2~3CH

Voltage Control Capability

24~48VDC or 24VAC

220VAC

Different Voltage Automatic Adaptation

Support

Not Involving

Energy Metering

Independent Per Channel

Support

Independent Per Channel

Overcurrent Protection

Support

Independent Per Channel

Support

Indicator Light

Support

Support

Input Voltage Detection

Support


Flow Capacity

Each Channel

3A@12/24,2A@36/48

<2%

Load Power/Channel

About 60W

35mm Industrial Din-rail

Measurement Accuracy Error

<2%

Support

Installation Method

35mm Industrial Din-rail

Support


Smart Box Management Module Specification

LA-SmartG-SBM

Parameter

Note

Auto-recloser Communication

Support


Lightning Arrester Remote Signaling

Support


Lightning Strike Count

Optional


Smart Fan Control

Support


Immersion Detection

Optional


Door Open Detection

Support


Internal Lighting

Support


Strobe Warning Light

Support


Automatic Heating

Optional


Running Light

Support

2

Reserved Relay

Support

2, Stay Open/Closed Optional

Installation Method

35mm Industrial Din-rail



Broadband Switch Module Specification

LA-SmartG-BS

Parameter

Note

Copper

4 * 10/100/1000Mbps


SFP

1


Port Status Monitoring

Support


Port Enable Control

Support


Device Access Authentication

Support

Black and White List

Port Remote Configuration

Support


Installation Method

35mm Industrial Din-rail

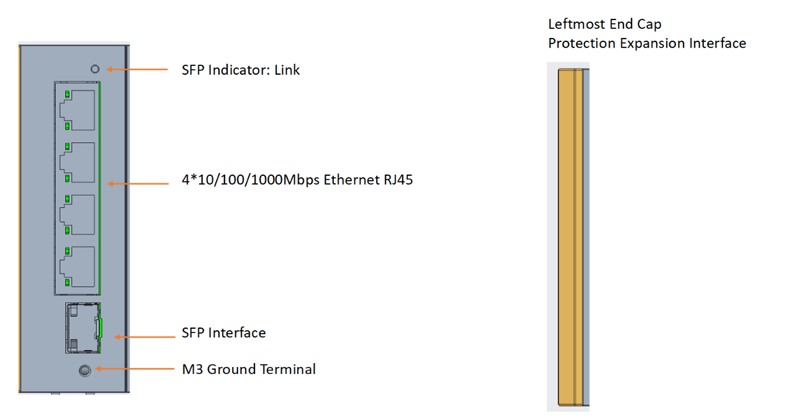

Broadband Switch Module

Broadband Switch Module of Smart Gateway

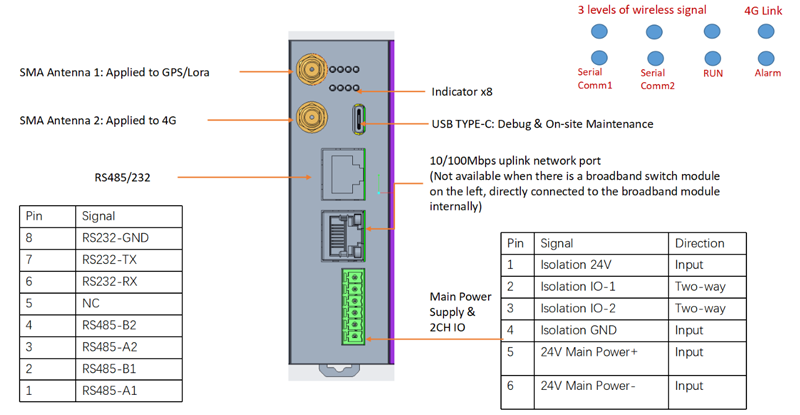

Main Control Module

Main Control Module of Smart Gateway

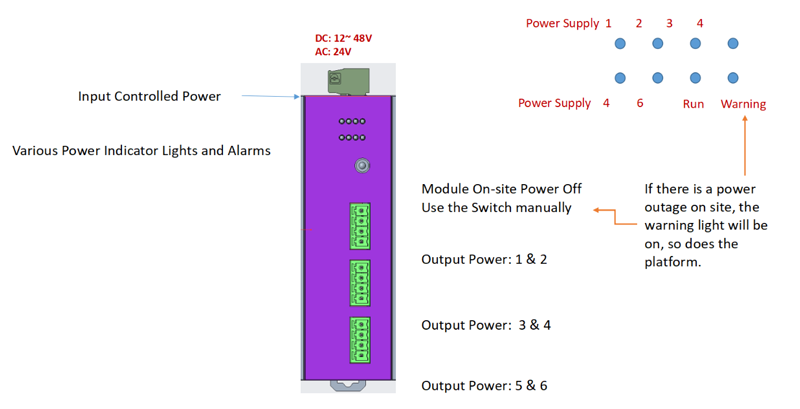

Power Management Module Type A

Power Management Module Type A of Smart Gateway

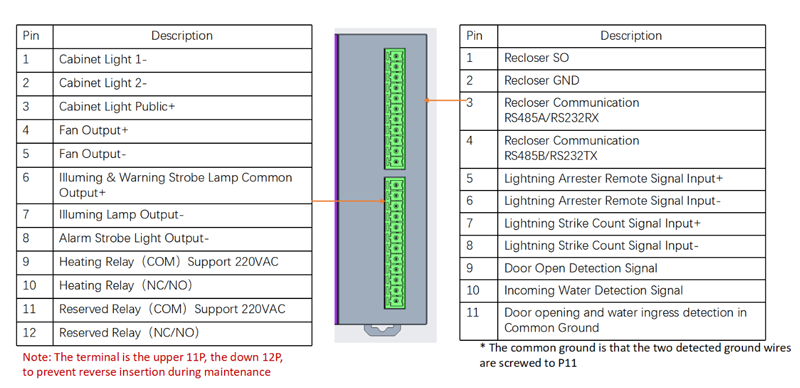

Smart Box Management Module

Smart Box Management Module of Smart Gateway

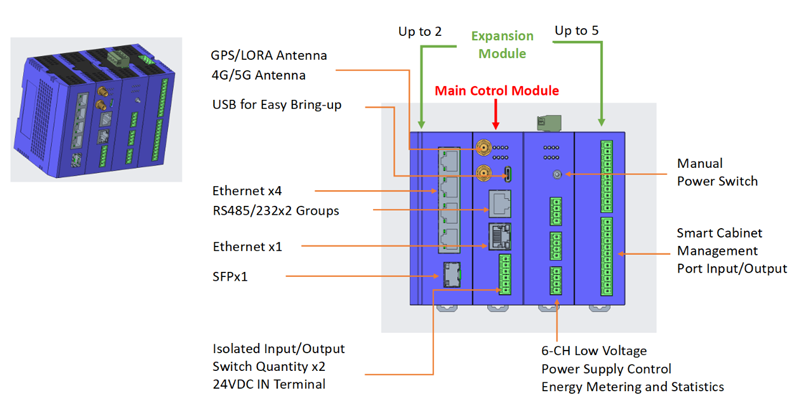

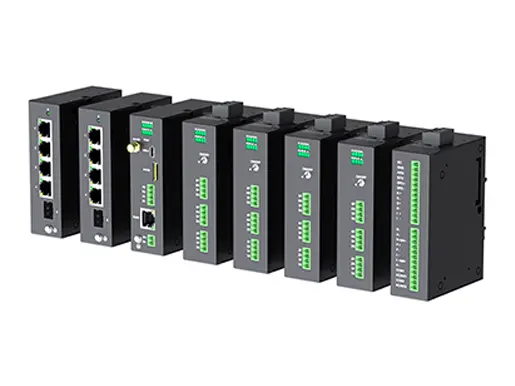

System Configuration

System Configuration of Smart Gateway

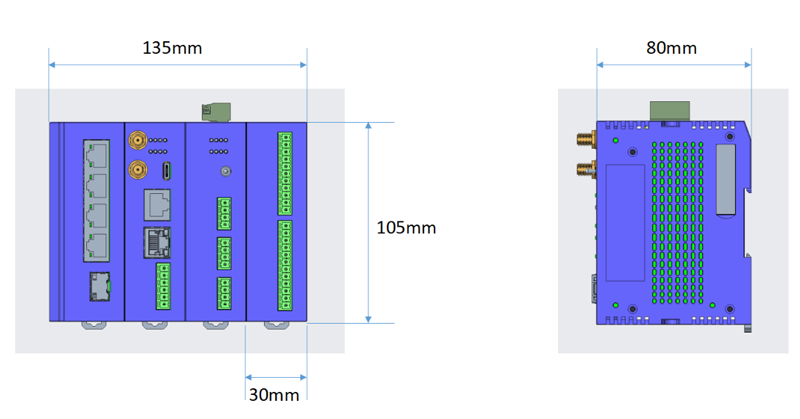

Standard Configuration Size

Standard Configuration Size of Smart Gateway

Date Version Description Download
2025-03-14 Datasheet_Smart Gateway_LA-GWAI-Z_V2.0
