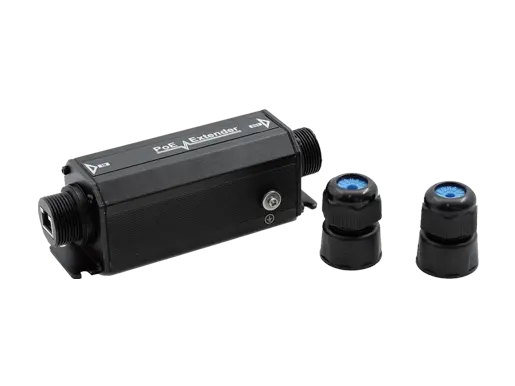

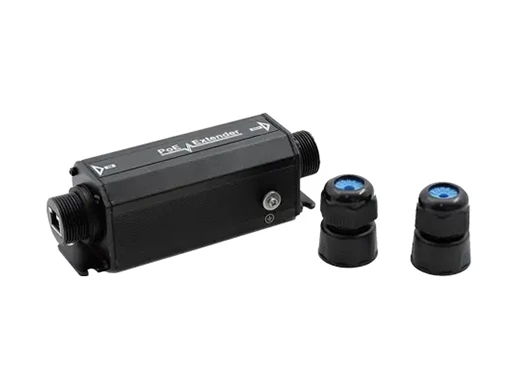

Outdoor Waterproof Gigabit PoE Extender IEEE802.3af/at/bt PoE++ 90w

LA-OPE-G11-90B-X
LA-OPE-G11-90B-X is Power over Ethernet (PoE) Extender, extend Ethernet and PoE to IP cameras at greater distances outdoor, greatly simplifies the deployment of IP cameras.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-OPE-G11-90B-X is Power over Ethernet (PoE) Extender, extend Ethernet and PoE to IP cameras at greater distances outdoor, greatly simplifies the deployment of IP cameras, wireless access points and equipment more than 100m from network points.

Features
● Provide 10/100/1000Mbps Ethernet ports
● Compatible with IEEE 802.3af and IEEE 802.3at, IEEE 802.3bt (4Pairs 90W)

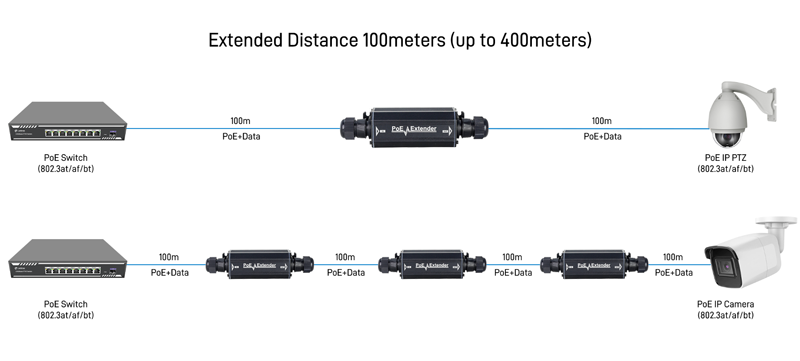

● Extends the range of PoE and Ethernet an additional 100meters
● No additional power supply is required
● Full-rate network throughout the whole extended distance
● Surge protection (6KV) for power port and data ports
● Plug-and-play

Ethernet Ports
PoE Input Port1x10/100/1000Base-Tx RJ-45
PoE Output Port1x10/100/1000Base-Tx RJ-45
Power over Ethernet
PoE Input & OutputCompatible with IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE802.3bt 4Pairs(90W)
Note: The actual output power depends on the input power.
Pin Assignment and Polarity1, 2, 3, 6; 4, 5, 7, 8
Structure
ConnectorsWaterproof RJ45, EIA 568A and 568B
Network CablesOutdoor type shielded CAT5 (or higher)
Dimensions185x45x45mm
MountingWall mount
Environment
Operating Temperature-25 to 55℃
Storage Temperature-30 to 70℃
Operating HumidityMaximum 90%, non-condensing
Storage HumidityMaximum 95%,Non-condensing
Regulatory ComplianceIEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++)
Certification
CertificatesCE, FCC, RoHS


Connectivity Solutions of Outdoor Waterproof Gigabit PoE Extender IEEE802.3af/at/bt PoE++ 90w

Ordering Information
LA-OPE-G11-90B-XOutdoor Waterproof Gigabit PoE Extender IEEE802.3af/at/bt PoE++ 90w
