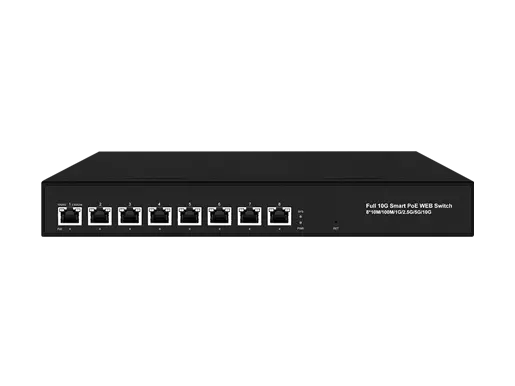

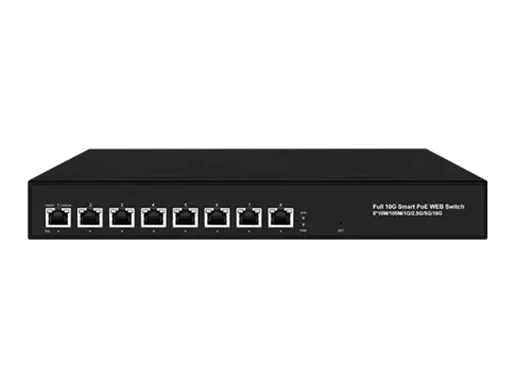

| Fixed Port | 8*10M/100M/1G/2.5G/5G/10Gbps RJ45 PoE |
| PoE Ports | 1 port: IEEE802.3af/at/bt (HiPoE) Max 90W/port |
| 2-8 ports: IEEE802.3af/at Max 30W/port |
| Console Ports | 1*Console port |
| Reset Key | 1 |
| PoE Pin | Af/at/bt: 12+ 45+ ; 36- 78- |
| Af/at: 12+ 36- |
| PoE Bridge | Max 150w |
| CPU | Cortex-A9 1GHz |
| DDR | 4G DDR3 |
| FLASH | 512MBytes |
| RAM | 512MBytes |
| Bandwidth | 160Gbps |
| Packet Forwarding | 115.84Mpps |
| MAC | 16K |
| Buffer | 4.1 Mbit SRAM Packet Buffer |
| Jumbo Frame | Jumbo packets up to 9216 bytes |
| VLAN Address | 4K |
| Link Aggregation | Supports 128 trunk groups with up to 8 members per group |
| L3 Routing | IPV4 supports 1024; IPV6 supports 512； |
| QoS Queue | 8 |
| Transmission Distance | 10BASE-T: Cat3,4,5 UTP(≤250 meter) |
| 100BASE-TX: Cat5 or later UTP(150 meter) |
| 1000BASE-TX: Cat6 or later UTP(150 meter) |
| SFP:100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
| LED Indicator | PWR:Power LED |
| 1-8: PoE - Work LED; Link_Network Connection LED |
| PoE port: Orange PoE LED, green network connection LED |
| Power | Max 180W（AC 100~240V 50/60HZ Max 2.2A） |
| Operating Temperature/Humidity | -10~+55°C; 5%~90% RH Non coagulation |
| Storage Temperature/Humidity | -40~+75°C; 5%~95% RH Non coagulation |
| Product /Packing | 335mm*195mm*45mm |
| size（L*W*H） | 410mm*278mm*95mm |
| N.W/G.W（kg） | 1.76kg/2.4kg |
| Lightning | 6KV 8/20us; |
| Protection level | IP30 |
| Installation | Rack-mount (optional machine hanger spare parts) |
| Certificate | CE-EMC EN55032; CE-LVD EN62368; |
| FCC Part 15 Class B; RoHS |
| Warranty | Whole device for 1 year (Accessories not included) |
| Port |
| Port Shutdown | Support |
| Port Speed | Support auto-negotiation, full-1000, full-100, half-100, full-10, half-10 |
| Flow Control | support full-duplex IEEE 802.3x, half-duplex back pressure |
| Storm Control | Supports rate limit for broadcast, multicast, and DLF packets |
| Storm Constrain | Support the detection of broadcast packets, multicast packets, |
| or unicast packets on the port, shutdown the port if the rate is over the threshold. |
| Port Mirror | Support |
| Port Rate Limit | Support port ingress and egress rate limit |
| Link Aggregation | Support manual link aggregation |
| Support LACP dynamic link aggregation |
| Supports up to 32 aggregation groups, each group up to 8 ports |
| Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy |
| Port Isolate | Support |
| Jumbo Frame | Support up to 16KB packet |
| Redundant Port | Support |
| MAC |
| MAC Table Capacity | 16K |
| MAC Table Management | Support |
| Forwarding mode | Support IVL forwarding mode |
| Static MAC Address | Support |
| MAC Address Binding | Support |
| MAC Address Filtering | Support |
| MAC Learning Control | Control the MAC learning based on port |
| VLAN |
| Number of VLANs | 4K |
| 802.1q-based VLAN | Support |
| MAC-based VLAN | Support |
| IP-based VLAN | Support |
| Protocol-based VLAN | Support |
| Voice VLAN | Support |
| VLAN Mapping | Support 1:1 mapping |
| QinQ | Support basic QinQ |
| Support flexible QinQ |
| Reliability |
| Spanning Tree Protocol | Support STP/RSTP/MSTP |
| Port Loop Detection | Support |
| EAPS | Support |
| ERPS | Support G.8032/Y.1344 |
| LLDP | Support LLDP & LLDP-MED |
| UDLD | Fully compatible with CISCO's UDLD protocol |
| VLLP (VRRP Layer-2 Loop Protection) | Support, Only used with VRRP |
| L3 |
| ARP | Support static and dynamic ARP |
| Static Route | Support |
| VLAN Interface | Support 32 VLAN interfaces |
| RIP | Support RIP v1/v2 |
| OSPF | Support OSPFv2 |
| Policy Route | Support |
| VRRP | Support |
| Multicast |
| Static Multicast MAC Address | Support |
| IGMP SNOOPING | Support IGMP SNOOPING v1/v2/v3 |
| Support IGMP Querier |
| Support IGMP SNOOPING Filter |
| MVR | Support |
| GMRP | Support |
| ACL |
| Standard IP-based ACL | Support |
| Extended IP based ACL | Support |
| MAC IP-based ACL | Support |
| MAC ARP-based ACL | Support |
| ACL Port Filtering | Support |
| Time-based ACL | Support |
| QoS |
| Port Queue Number | 8 |
| Port Queue Scheduling Mode | Support WRR，RR，WDRR，SP |
| Port-based Classification | Support |
| 802.1p-based Classification | Support |
| DSCP-based Classification | Support |
| ACL-based Classification | Support |
| QoS Policy | Support packets mapping to queue |
| Support COS or DSCP Remarking |
| Support rate limits of data flow |
| Support data flow statistics |
| Support mirroring of data flow |
| DHCP |
| DHCP Client | Support |
| DHCP Snooping | Support |
| DHCP Relay | Support |
| DHCP Server | Support |
| DHCP option 82 | Support |
| Management |
| CLI Management | Support Console, Telnet and SSH |
| WEB Management | Support HTTP and HTTPS |
| SNMP Management | Support SNMP v1, v2c |
| Support SNMP TRAP |
| Support lots of standard and private MIBs |
| User Management | Support multiple user management |
| Log Management | Support local log management |
| Support SYSLOG |
| RMON | Support RMON 1, 2, 3 and 9 groups |
| Cluster Management | Support NDP |
| Support NTDP |
| Support manual and automatic joining of cluster groups |
| Support cluster unified management |
| Configuration File | Support uploading and downloading configuration file |
| Upgrade software | Support |
| Clock Management | Support local clock management |
| Support SNTP |
| Security |
| Switch Management Security | Support enabling and disabling TELNET, WEB and SNMP services |
| Support TELNET, WEB and SNMP services to bind to standard IP ACLs |
| Support for limiting the number of TELNET connections |
| CPU Protection | The switch's own security protection prevents large data streams from attacking the switch itself. |
| AAA | Support 802.1x |
| Support RADIUS |
| Supports authentication, authorization, and accounting through RADIUS server |
| Support port-based and MAC-based 802.1x |
| Support 802.1x guest VLAN |
| IP MAC Binding | Support static configuration of IP, MAC and port binding |
| DHCP SNOOPING | Support dynamic ARP binding to prevent ARP spoofing |
| Support dynamic IP, MAC and port binding |
| Support fixed port to connect to DHCP server to prevent private connection to DHCP server |
| Prevent ARP Spoofing | Support manually configuring MAC ARP-based ACL rules to prevent ARP spoofing. |
| Support the DHCP SNOOPING function. During the process of obtaining an IP address by DHCP, the switch dynamically binds ARP to the port to prevent ARP spoofing. |
| Debugging |
| PING | Support |
| TRACEROUTE | Support |
| TELNET Client | Support |
