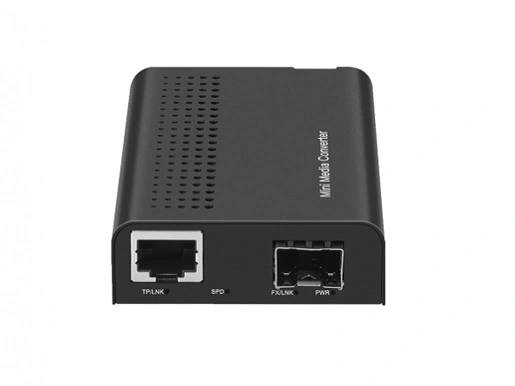

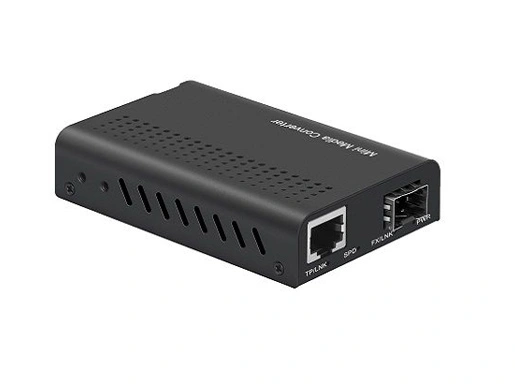

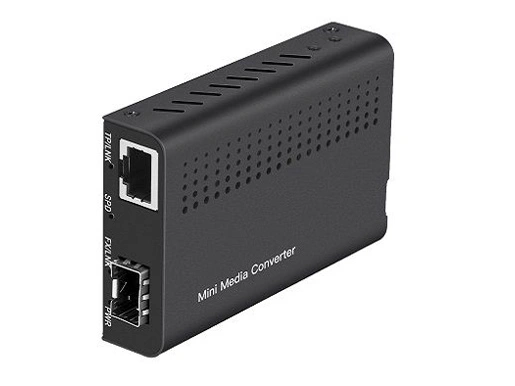

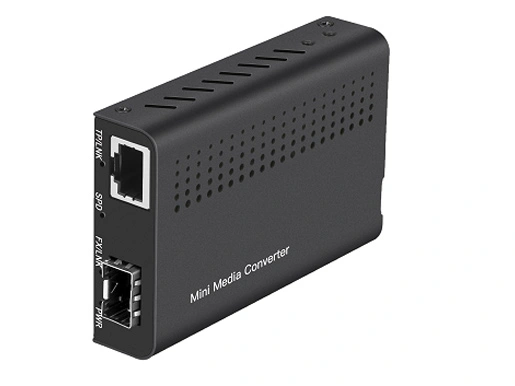

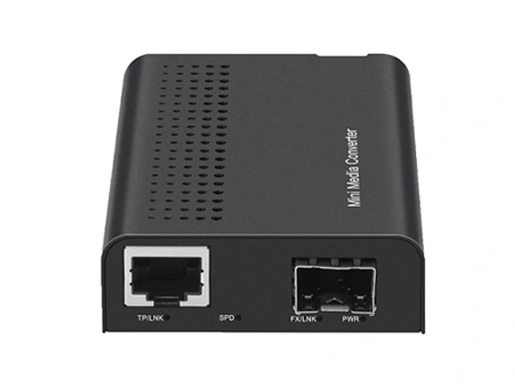

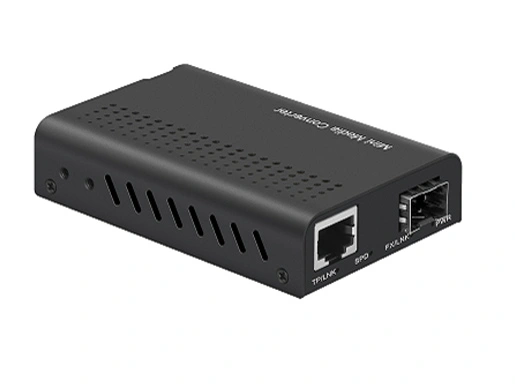

Miniature Full Gigabit 10/100/1000Base-TX to 100/1000Base-FX Media Converter

LA-MC2N-G0101
LA-MC2N-G0101 is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-MC2N-G0101 is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. 1x10/100/1000Base Fiber Media Converter, SFP Fiber Media Converter, Options in single mode dual fiber, multimode dual fiber and single mode single fiber.


We also supply Media Converter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.

PART NOLA-MC2N-G0101
Transmission DistanceRJ45, Twisted-pa 100M standard CAT5/CAT5e cable
SFP, Distance depend on plug-in Fiber Transceiver Fiber: MM 500m/2km, SM 20/40/60/80/120km
Store-and-Forward Mode1518Bytes
Pass Through Mode9KBytes
LFP ModeSupport
DIP SwitchesStore and Forward (optional) Pass Through (optional)
ConnectorSmart Pass Through (optional)
Operation ModeModified Cut Through (optional)
Power RequirementOne UTP RJ-45 connector, one SC/ST connector, one DC-inlet connector
Environmental RequirementFull duplex or half duplex mode
Mechanical StructureOperating Voltage DC 5~12V Rated Current: 0.5/0.25A
WarrantyPower Consumption: Full-load<3W
EmissionsOperating Temperature: 0℃~50℃
Storage Temperature: -10℃~70℃


Ordering Information
LA-MC2N-G0101DESCRIPTION: Miniature Full Gigabit 10/100/1000Base-TX to 100/1000Base-FX Media Converter


Date Version Description Download
2025-03-14 LA-MC2N-G0101
