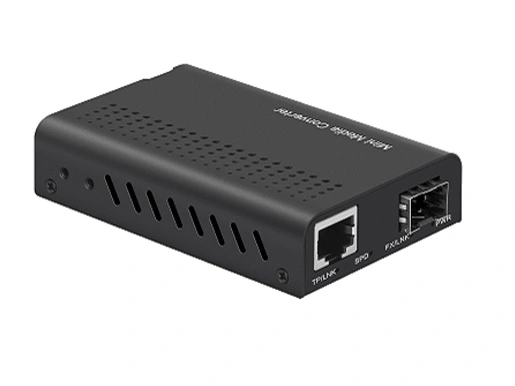

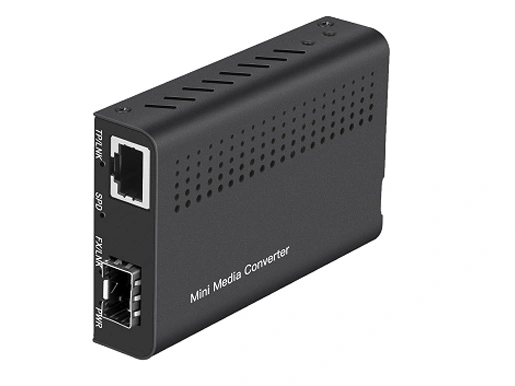

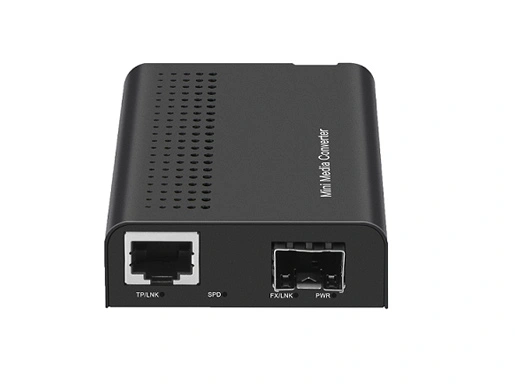

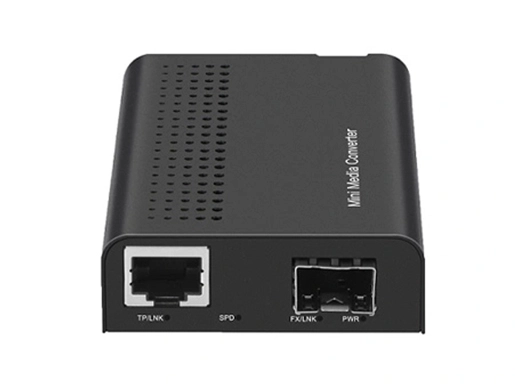

Miniature Fast Ethernet 10/100Base-TX to 100Base-FX Media Converter

LA-MC2N-F0101
LA-MC2N-F0101 is a Fast Ethernet stand-alone Mini media converter that provides the cost effective, entry-level media conversion between 10/100Base-TX ports and 100Base-FX ports.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-MC2N-F0101 is a Fast Ethernet stand-alone Mini media converter that provides the cost effective, entry-level media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. 10/100Base Fiber Media Converter, SFP Fiber Media Converter, Options in single mode dual fiber, multimode dual fiber and single mode single fiber.


We also supply Media Converter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.

PART NOLA-MC2N-F0101
Transmission DistanceRJ45, Twisted-pa 100M standard CAT5/CAT5e cable
SFP, Distance depend on plug-in Fiber Transceiver Fiber: MM 500m/2km, SM 20/40/60/80/120km
Forwarding ModeStore-and-Forward
Forwarding Frame Length2046Bytes
LFP ModeSupport
DIP SwitchesLFP function (optional) Pass Through (optional)
Power RequirementOperating Voltage DC 5~12V Rated Current: 0.5/0.25A
Power Consumption: Full-load<3W
Environmental RequirementOperating Temperature: 0℃~50℃
Storage Temperature: -10℃~70℃
Relative Humidity: 5%~95% (non-condensation)
MTBF: 50,000 h
Enclosure: Metal
Mechanical StructureDimensions: 102mm(D)×59mm(W)×20mm(H) Weight: 120g
Warranty1 Year
EmissionsFCC Class A, CE Class A


Ordering Information
LA-MC2N-F0101DESCRIPTION: Miniature Fast Ethernet 10/100Base-TX to 100Base-FX Media Converter


Date Version Description Download
2025-03-14 LA-MC2N-F0101
