LA-MC1N-G0101Micro 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards.
Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.
P/N | LA-MC1N-G0101Micro |
Access mode | 10/100/1000Mbps Gigabit Ethernet |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast |
Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet | |
Fiber Port | SFP - 100/1000M adaptive |
Wavelength | 850nm/1310nm/1550nm (Based on SFP Module used) |
Transmission distance | Fiber Cable: Depends on SFP Module |
Category-5 twisted pairs: 100m | |
Port | One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs |
One Optical port: SFP | |
Conversion means | Media conversion |
LFP | Not Support |
BER | <10-9 |
MTBF | 100,000 hours |

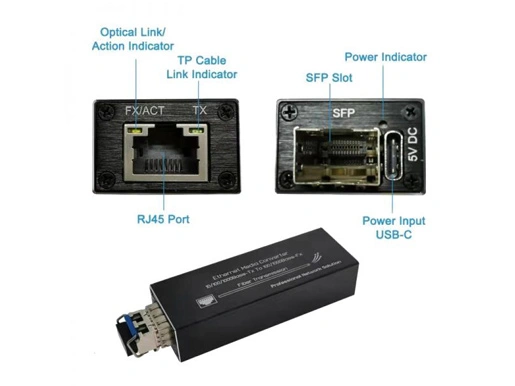

LED indicator | PWR (Power supply) |
TX (LINK100/1000, TP cable rate 100/1000M) | |
FX/ACT (Optical link action /TP cable packet forwarding action) | |
Power supply | DC 5~15V (Type-C) |
Power consumption | <3W |
Operating temperature | 0~45ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Weight | 46g |
Dimensions (W x D x H) | 78 x 27 x 18 mm |
Features
Smallest media converters available; tuck the unobtrusively behind a PC
10/100 /1000Base-T to 100/1000Base-X SFP
SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
USB-powered for portability, or use 5~15VDC
wide range power input
Ultra-compact and weigh less than 2 ounces
Support 9k jumbo frame
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
Including a Power Supply
Ordering Information | |
---|---|
LA-MC1N-G0101Micro | Ultra-compact 10/100/1000Base-T to 1000Base-X media converter, 1*Gigabit SFP port + 1*10/100/1000M RJ45 port, without SFP module, DC 5V power supply |
Date | Version | Description | Download | ||
2025-03-14 | LA-MC1N-G0101Micro |
