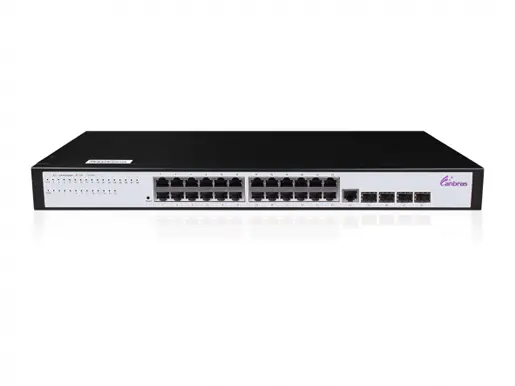

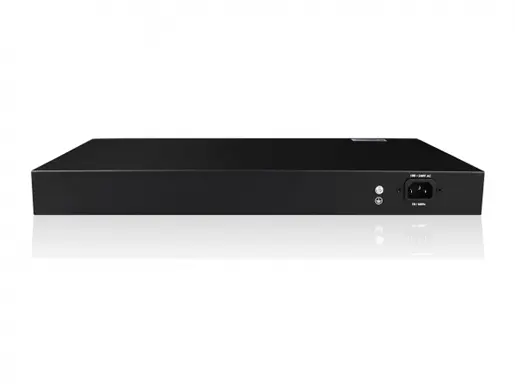

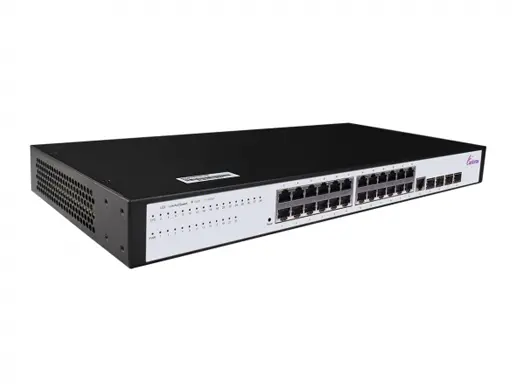

Managed Ethernet Switch with 24×GE TX ports, 4×100/1000M SFP ports

Managed Ethernet Switch with 24×GE TX ports, 4×100/1000M SFP ports

LA-SWM2-DCG0424
LA-SWM2-DCG0424 is a new-generation intelligent gigabit access switch designed for carrier's IP MAN and enterprise networks.
GET A QUOTE
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-SWM2-DCG0424 is a new-generation intelligent gigabit access switch designed for carrier's IP MAN and enterprise networks. Based on the new-generation high-performance hardware and platform, supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenarios.

PART NOLA-SWM2-DCG0424
Interface24×GE TX ports, 4×100/1000M SFP ports
Console1 RJ45 port, 1 RST button
Backplane56 Gbps
Forwarding rate42 Mpps
Total output BTU (1000BTU/H=293W)85.32
Fan numberno
Noise@25°C(dBA)0
MTBF(H)>50,000
Forwarding modeStore-forward
Flash (MB)16
DRAM (MB)128
MAC4K
Buffer size(MB)4.1
Jumbo frame9K
Total SVI10
Power supplyAC:100V-240V,50Hz卤10%, 25W
Power consumption
No-load<7W
Full-load20W
Chassis
Dimensions(W x D x H) (mm)440*210*44
Weight(KG)(empty)2
Package
Dimensions(W x D x H) (mm)555*295*88
Weight(KG)3


Ordering Information
LA-SWM7-DCS2528-CEthernet switch with 24 GE TX ports and 4 GE SFP ports (1 console port, 24 GE TX ports, 4 100/1000M SFP ports, 1 standard AC220V power supply, fanless, 1U, 19-inch rack-mounted installation)
100M Optical Modules
LA-SFP-LX-SM1310/1550-80BIDI100M SFP single-mode, single fiber (80Km, TX1310/RX1550, LC, DDM)
100M SFP single-mode, single fiber (80Km, TX1550/RX1310, LC, DDM)
LA-SFP-LX-SM1310/1550-40BIDI100M SFP single-mode, single fiber (40Km, TX1310/RX1550, LC, DDM)
100M SFP single-mode, single fiber (40Km, TX1550/RX1310, LC, DDM)
LA-SFP-LX-SM1310/1550-20BIDI100M SFP single-mode, single fiber (20Km, TX1310/RX1550, LC, DDM)
100M SFP single-mode, single fiber (20Km, TX1550/RX1310, LC, DDM)
LA-SFP-ZX-80100M SFP single-mode (80Km, 1550nm, LC, DDM)
LA-SFP-LX-40100M SFP single-mode (40Km, 1310nm, LC, DDM)
LA-SFP-LX-15100M SFP single-mode (15Km, 1310nm, LC, DDM)
LA-SFP-SX-1310100M SFP multi-mode (2Km, 1310nm, LC, DDM)
GE Optical Modules
GSFP-LX-SM1490/1550-120GE SFP single-mode, single fiber (120Km, TX1490/RX1550, LC, DDM) GE SFP single-mode, single fiber (120Km, TX1550/RX1490, LC, DDM)
GSFP-LX-SM1490/1550-80BIDIGE SFP single-mode, single fiber (80Km, TX1490/RX1550, LC, DDM)
GE SFP single-mode, single fiber (80Km, TX1550/RX1490, LC, DDM)
GSFP-LX-SM1310/1550-40BIDIGE SFP single-mode, single fiber (40Km, TX1310/RX1550, LC, DDM)
GE SFP single-mode, single fiber (40Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1310/1550-20BIDIGE SFP single-mode, single fiber (20Km, TX1310/RX1550, LC, DDM)
GE SFP single-mode, single fiber (20Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1310/1550-10BIDIGE SFP single-mode, single fiber (10Km, TX1310/RX1550, LC, DDM)
GE SFP single-mode, single fiber (10Km, TX1550/RX1310, LC, DDM)
GSFP-ZX-120-DGE SFP single-mode (120Km, 1550nm, LC, DDM
GSFP-ZX-80-DGE SFP single-mode (80Km, 1550nm, LC, DDM)
GSFP-LX-40-DGE SFP single-mode (40Km, 1310nm, LC, DDM)
GSFP-LX-20-DGE SFP single-mode (40Km, 1310nm, LC, DDM
GSFP-LX-10-DGE SFP single-mode(10Km,1310nm,LC,DDM)
GSFP-SX-DGE SFP multi-mode(500m,850nm,LC,DDM)
GSFP-TX-BGE-SFP-to-RJ45 module


Date Version Description Download
2025-03-10 LA-SWM2-DCG0424
