Name: Layer2 Managed PoE Switch 32x10/100/1000Base-T, 4xGigabit SFP
Brand: Lanao Communication Technology Limited.
Availability: InStock

Layer2 Managed PoE Switch 32x10/100/1000Base-T, 4xGigabit SFP

CSL3LM-04S32GP-L

Overview

Specifications

Connectivity Solutions

Models

Resources

Overview

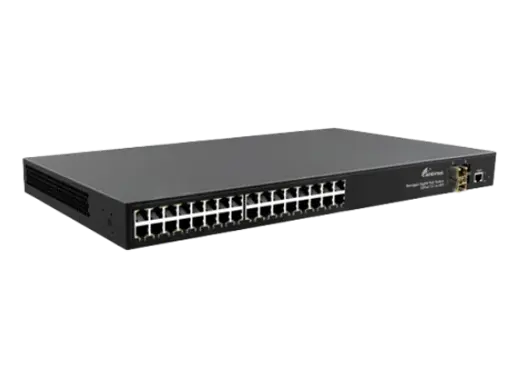

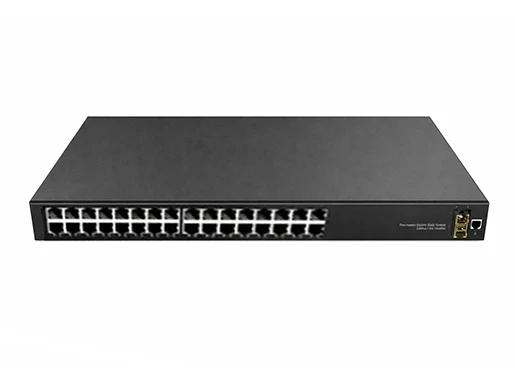

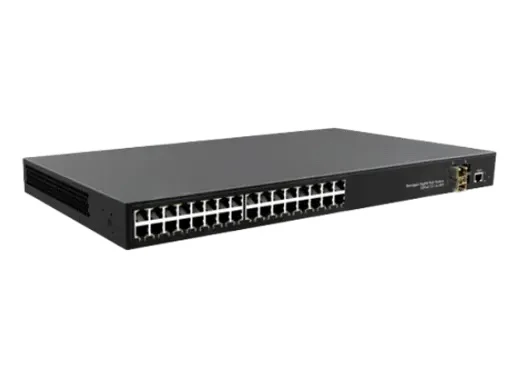

CSL3LM-04S32GP-L is a Layer2 full Gigabit Managed PoE Switch, which features 32-port 10/100/1000Base-T RJ45 PoE and 4*1G SFP ports. It supports powerful Layer 2 management with a high-performance switching architecture and offers wire-speed transportation capability to meet the converged applications for enterprise customer's networks. It provides comprehensive end to end QoS as well as flexible and rich management, security settings, total power consumption up to 440 watts, rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.

Features

Port Aggregation, VLAN, QinQ, Port Mirroring, QoS, Multicast IGMP snooping
Layer 2 ring network protocol, STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
Security: support Dot1x, port authentication, mac authentication, RADIUS service; Support port-security, ip source guard, IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation
Management: support LLDP, user management and login authentication; SNMPV1/V2C/V3; web management, HTTP1.1, HTTPS; Syslog and alarm grading; RMON alarm, event and history record; NTP, temperature monitoring; Ping, Tracert and optical transceiver DDM function; TFTP Client, Telnet Server, SSH Server and IPv6 Management, PoE management
Firmware update: configure backup/restore through Web GUI, FTP and TFTP

Specifications

Provider Mode Ports
Fixed Port	4xGigabit Base-X SFP, 32x10/100/1000Base-T PoE
Management Port	Support Console
LED Indicators	Yellow: PoE/Speed; Green: Link/ACT
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e, CAT6)
Mono-mode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
PoE Support
PoE	Complies with IEEE 802.3at, IEEE802.3af standard PoE 1-32Port max output power each 30w (PoE+) per port Support 1/2(+) 3/6(-) End-span Smart and standard PoE Chipset to detect PD equipment automatically Never burn the PD equipment Support Non-standard PD
Electrical Specifications
Input Voltage	AC100-240V, 50/60Hz
Total Power Consumption	Total power≤440W (PoE Budget 400w)
Layer 2 Switching
Switching Capacity	72G
Packet Forwarding Rate	107.136Mpps
MAC Address Table	16K
Buffer	12M
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	Support 10Kbytes
Port Aggregation	Support GE port, 2.5GE aggregation Support static and dynamic aggregation
Port Features	Support IEEE802.3x flow control, Port traffic statistics, port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access, trunk and hybrid mode
VLAN Classification	Mac Based VLAN IP Based VLAN Protocol Based VLAN
QinQ	Basic QinQ (Port-based QinQ) Flexible Q in Q (VLAN-based QinQ) QinQ (Flow-based QinQ)
Port Mirroring	Many to one (Port Mirroring)
Layer 2 Ring Network Protocol	Support STP, RSTP, MSTP Support G.8032 ERPS protocol, single ring, sub ring and other ring
DHCP	DHCP Client DHCP Snooping
Multicast	IGMP snooping
ACL	IP Standard ACL MAC extend ACL IP extend ACL
QoS	QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Policy-based QoS
Security	Support Dot1x, port authentication, MAC authentication and RADIUS service Support port-security Support IP source guard, IP/Port/MAC binding Support ARP-check and ARP packet filtering for illegal users Support port isolation
Management and Maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON (Remote Monitoring) alarm, event and history record Support NTP Support temperature monitoring Support Ping, Tracert Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support FTP, TFTP, WEB upgrading
Environment
Temperature	Operating: -10℃~+50℃; Storage: -40℃~+75℃
Relative Humidity	5%~90% (non-condensing)
Thermal Methods	Support fan speed control
MTBF	100,000 hours
Mechanical Dimensions
Product Size	44030044mm
Installation Method	Rack-mount
Net Weight	4.5kg
EMC & Ingress Protection
Surge Protection of Power Port	IEC 61000-4-5 Level X(6KV/4KV) (8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 4(4KV/2KV) (10/700us)
ESD	IEC 61000-4-2 Level 4 (8K/15K)
Free Fall	0.5m
Certificates
Security Certificate	CE, FCC, RoHS
