LA-SWM2R-G0424-AC5L is a highly reliable Layer 2+ managed Ethernet switch featuring 24x10/100/1000M RJ45 ports and 4x1G/2.5GBase-X SFP ports. This switch offers comprehensive end-to-end QoS and a range of flexible management and security settings, making it an ideal solution for small to medium-sized enterprise networks that require high speed, security, and intelligence at a cost-effective price. It supports G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, IPv4/IPv6 static routing, a DHCP server, and robust Layer 2 management and security functions. These features ensure effective data traffic control for ISPs and enterprises, supporting applications such as VoIP, video streaming, and multicast.
Features
● 24x10/100/1000M RJ45 + Uplink 4x1G/2.5G SFP, 1*RJ45 console port
● Layer 3 features: Support IPv4/IPv6 static routing, DHCP server
● Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP ● snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
● Management and maintenance: IPv4 and IPv6 management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP
● Support G.8032 ERPS protocol, recovery time ≤20ms
● Support 4KV Power surge protection, IEC 61000-4-5 Level X (8/20us)
● Support 4KV Ethernet ports surge protection, IEC 61000-4-5 Level 4 (10/700us)
● Support fan speed control
● Operation temperature: 0 ℃ ~+ 50℃
Model No. | LA-SWM2R-G0424-AC5L |
Fixed Port | 24x10/100/1000M RJ45, 4x1G/2.5G SFP |
Management Port | 1xRJ45 Console port (115200, 8, N, 1) |
Standard | IEEE 802.3 10Base-T Ethernet |
IEEE 802.3u 100Base-TX Ethernet | |
IEEE 802.3ab 1000Base-T Ethernet | |
IEEE 802.3z 1000Base-X Ethernet | |
IEEE802.3x Flow Control and Back Pressure | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
IEEE 802.1Q VLAN | |
ITU-T G.8032 ERPS | |
IEEE 802.1X Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3ad LACP | |
LED Indicators | |
PWR (Power Indicator) | Off: the device is power off or failed; On: the device power on is normal |
SYS (System Status Indicator) | Blinking: device initialization; On: device on normal operation |
1-24 (Copper Ports Indicators) Green | Off: ports link down; On: ports link up; Blinking: data on TX/RX |
1-24 (Copper speed indicators) Yellow | Off: ports on 10/100M; On: ports on 1000M |
25-28 (Fiber Ports Indicators) Green | Off: ports link down; On: ports link up; Blinking: data on TX/RX |
Power Parameter | |
Input Voltage | AC100 ~240V, 50/60Hz |
Total Power Consumption | Full loading≤24W |
Over-Current Protection | Support |
Layer 2 Functions | |
Port Aggregation | Support GE port aggregation |
Support 2.5GE aggregation | |
Support 10GE aggregation | |
Support static aggregation | |
Support LACP dynamic aggregation | |
Up to 64 aggregation groups and up to 8 ports per group | |
Port Features | Support IEEE802.3x flow control |
Support interface counters | |
Support port isolation, port mirroring (One-to-One, Many-to-One) | |
Support loop detection (Port-based; VLAN-based) | |
Support broadcast storm suppression (broadcast; unknown multicast; unknown unicast) | |
Mac-Address Table Management | Support static Mac-address management |
Support dynamic Mac-address Management | |
Support filtering Mac-address | |
Support MAC limit based on port and VLAN | |
Support MAC flapping based on port and VLAN | |
VLAN | Support access mode; Support trunk mode; Support hybrid mode |
VLAN classification | Mac Based VLAN; IP Based VLAN; Protocol Based VLAN |
GVRP | Normal mode; Fixed mode; Forbidden mode |
QinQ | Port-based QinQ |
VLAN-based QinQ (VLAN-stacking; VLAN-mapping) | |
Flow-based QinQ | |
LLDP | LLDP (Link Layer Discovery Protocol) |
Ring Network Protocol | Support IEEE802.1D-STP |
Support IEEE802.1W-RSTP | |
Support IEEE802.1S-MSTP | |
Support G.8032 ERPS protocol, single ring, sub-Ring and major ring | |
Recovery time ≤20ms | |
L2 Multicast | |
IGMP Snooping | Support IGMP snooping |
Group Address | Support group address |
Security Functions | |
ACL | IP Standard ACL |
MAC extend ACL | |
IP extend ACL | |
IPv6 ACL | |
QoS | Support QoS Class, remarking |
Support SP, WRR queue scheduling | |
Ingress port-based rate-limit | |
Egress port-based rate-limit | |
Support policy-based QoS | |
802.1x | Port access control |
Mac-address access control | |
RADIUS server | |
Port-Security | Port-security |
IP Source Guard | IP Port/MAC binding |
ARP-check | Support ARP-check and ARP packet filtering for illegal users |
Access control | Support Telnet/SSH/HTTP/HTTPS user access control |
Management & Maintenance Functions | |
User Management | Support password protection |
Support user authorization management | |
SNMP | Supporting SNMP V1/V2C/V3 version |
Web Management | Web Management |
Support HTTP V1.1 | |
Support HTTPS | |
CLI Management | Console/Telnet command line management |
RMON | Support RMON (Remote Monitoring) alarm |
Firmware Upgrade | Firmware upgrade |
Fault Detection | Ping/Tracerout |
Support optical transceiver DDM function | |
Cable Detection | Support copper port cable detection |
NTP | Network Time Protocol |
Syslog/Debug | Syslog/Debug; Syslog sends to three servers |
Configuration Import/Export | Support FTP/TFTP remote import/export |
Dual Partition Management | Support dual partition switching |
Application Protocol Functions | |
DHCP Snooping | DHCP snooping trust port |
Support remote-id/circuit-id configuration | |
DHCP option-82 | |
DHCP Client | Support DHCP client |
Telnet Server | Support telnet server |
Telnet Client | Support telnet client |
SSH Server | Support SSH server |
TACACS | Support TACACS (the terminal access controller accesses the control system) |
sflow | Support network traffic analysis |
TFTP | Support TFTP Client |
Layer 3 Functions | |
ARP | ARP table aging |
DHCP Server | |
IPv4 / IPv6 | static routing |
Switching Features | |
Switching Capacity | 68Gbps |
Packet Forwarding Rate | 101Mpps |
MAC Address Table | 16K |
VLAN | 4K |
Buffer | 12Mbit |
Forwarding Delay | <5us |
Jumbo Frame | Support 10Kbytes |
MDX/MIDX | Support |
Watchdog | Support |
Mechanical Structure | |
Installation Method | Desktop; Rack-mount |
Dimension (W x D x H) | 440x180x45mm |
Weight | 2.77kg |
Operating Environment | |
Operating Temperature | 0℃~+50℃ |
Storage Temperature | -10℃~+70℃ |
Relative Humidity | Operation humidity: 10%-90%RH; Storage humidity: 5%-95%RH |
Certification | CE/RoHS/FCC |
MTBF | > 100,000 hours |

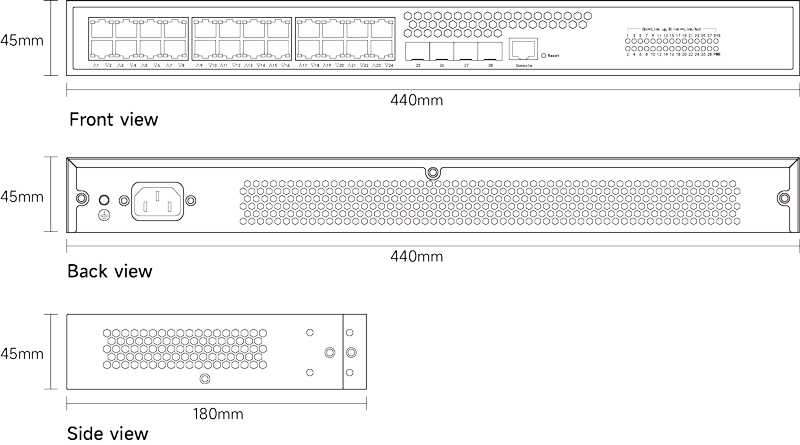

Dimension
Ordering Information | |
---|---|
LA-SWM2R-G0424-AC5L | L2+ Managed Ethernet switch 24x10/100/1000M RJ45, Uplink 4X1G/2.5G SFP ports AC100~240V Input |
