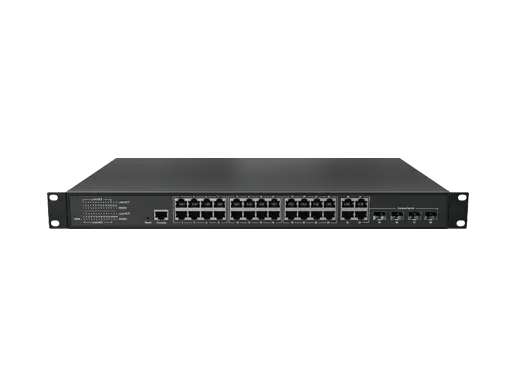

Layer 2+ Managed Ethernet Switch 24x10/100/1000M RJ45, 4x1000M Combo (RJ45/SFP)

LA-SWM2R-GC0424-AD-Z
LA-SWM2R-GC0424-AD-Z is a Gigabit Layer 2+ Managed Ethernet Switch, features 24x10/100/1000Mbps adaptive RJ45 ports and 4x1000Mbps combo ports.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-SWM2R-GC0424-AD-Z is a Gigabit Layer 2+ Managed Ethernet Switch, features 24x10/100/1000Mbps adaptive RJ45 ports and 4x1000Mbps combo ports, and ports 25-28 designated as uplink interfaces. Each RJ45 port supports auto MDI/MDIX and full line-speed forwarding, ensuring seamless connectivity. Utilizing a store-and-forward switching method and incorporating QoS technology, the device guarantees efficient bandwidth allocation to each port, providing both stable power delivery and reliable data transmission.


Features

● 24x10/100/1000Mbps RJ45 Ports, 4x10/100/1000Mbps Combo Ports, 1 x Console Port

● Input Voltage: AC100~240V / DC12V

● Working Temperature: -10℃~+55℃

● Shell: Fan-less design, natural cooling

● Certificates: CE/RoHS/FCC

● Anti-static: 8KV-15KV

● MTBF: 100,000hours


Provider Mode Ports
Fixed Port24x10/100/1000M RJ45, 4x1000M Combo (RJ45/SFP)
Management PortSupport Console

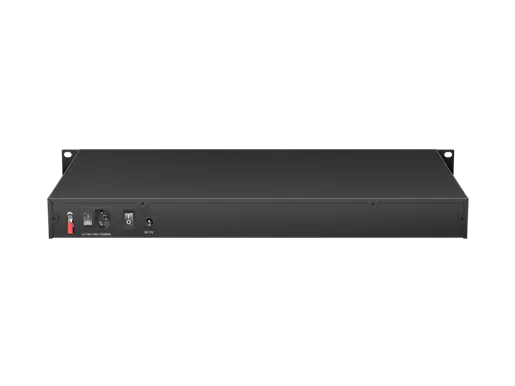

Power interfaceAC220V interface, DC12V Interface
LED IndicatorsPWR, SYS, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair0-100m (CAT5e, CAT6)
Single Mode Fiber20/40/60/80/100KM
Multimode Optical Fiber550m
Network Topology
Ring topologySupport
Star topologySupport
Bus topologySupport
Tree TopologySupport
Hybrid topologySupport
Electrical Specifications
Input VoltageAC100~240V / DC12V
Total Power Consumption≤20W
Layer 2 Switching
Switching Capacity56Gbps
Packet Forwarding Rate41.616Mpps
MAC Address Table8K
Buffer4.1M
Forwarding Delay<10us
MDX/MIDXSupport
VLAN256
GVRPSupport
Protocol VLANSupport
Voice VLANSupport
Surveillance VLANSupport
MAC VLANSupport
EtherChannel/802.3adSupport
LACPSupport
Interface SpeedSupport
Duplex ModeSupport
Flow ControlSupport
Jumbo FrameSupport
DHCP ClientSupport
SNTP ClientSupport
Port StatisticsSupport
Protected PortsSupport
EEESupport
Ethernet Ring Protection SwitchingSupport
LLDPSupport
LLDP 802.1 TLVSupport
MSTP/RSTP/STPSupport
STP BPDU FilterSupport
STP BPDU GuardSupport
STP Port FastSupport
IGMP SnoopingSupport
MLD SnoopingSupport
MVRSupport
Layer 3 Route
IPv4 Management AddressSupport
IPv6 Management AddressSupport
Static Routes IPv4Support 32
Static Routes IPv6Support 32
ARPSupport
Loopback InterfaceSupport
DHCP ServerSupport
DNS ServerSupport
DNS ClientSupport
Convergence
ACLSupport MAC standard/expand ACL
Support IPv4 standard/expand ACL
Support IPv6 standard/expand ACL
QoSSupport QoS re-marking, port trust
Support port rate limiting
Support egress rate-limited
Support SP, WRR queue scheduling
Support COS mapping, DSCP mapping, IP priority mapping
Management
User ManagementSupport
System LogSupport
Upgrade FirmwareSupport
Configuration File Download/UploadSupport
SNMPSupport SNMP V1/V2/V3
WEB ManagementSupport
ConsoleSupport
CLISupport
Telnet/SSHSupport
RMONSupport
Security
Management Channel ConfigurationSupport
AAA AuthenticationSupport
802.1X AuthenticationSupport
MAC-Based AuthenticationSupport
WEB-Based AuthenticationSupport
DoS Anti-attackSupport
Dynamic ARP CheckSupport
DHCP SnoopingSupport
IP Source GuardSupport
Port SecuritySupport
Protected PortsSupport
Storm ControlSupport
Equipment Diagnosis
Console LogSupport
RAM LogSupport
Flash LogSupport
Port MirroringSupport 1:1 or M:1
PingSupport
TracerouteSupport
Copper Port TestSupport
DDMSupport
UDLD ProtocolSupport
Environment
Operating Temperature-10℃~+55℃
Storage Temperature-40℃~+70℃
Operating Humidity10%~90% RH
Storage Humidity5%~90% RH
Thermal MethodsFan-less design, natural cooling
MTBF100,000 hours
Mechanical Dimensions
Product Size440x280x44mm
Installation MethodRack-mount
Weight3.6KG
EMC & Ingress Protection
Surge Protection of PowerCommon Mode: 4KV; Differential Mode: 2KV
Surge Protection of Ethernet portCommon Mode: 6KV; Differential Mode: 2KV
ESDContact: 8K; Air: 15K
Free fall0.5m
Certification
CertificatesCE, FCC, RoHS


Dimension

Dimension of Layer 2+ Managed Ethernet Switch 24x10/100/1000M RJ45, 4x1000M Combo (RJ45/SFP)
