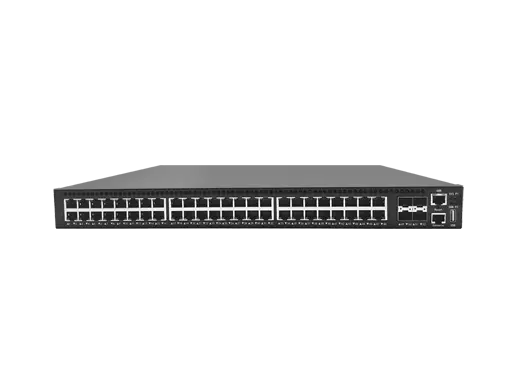

L3 Managed Switch 48xGE RJ45, 4x10G SFP+ Redundant Hot-swap Power Supply

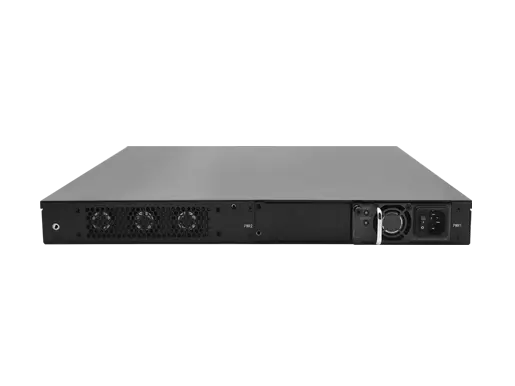

LA-SWM3-10G0448P-2HAC-L is a Layer 3 managed Gigabit PoE switch featuring advanced hardware architecture. They support redundant hot-swap AC power supply, which will not affect the normal operation of the switch, specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. The switch also provides fault detection and alarms for power and fans. The fan speed can be automatically adjusted based on temperature changes to better adapt to various environments. The series adopt the front-to-rear airflow to enhance the cooling efficiency. By using overcurrent, overvoltage, and overheating protection technologies, it can achieve device-level and link-level reliability protection.

It delivers full Gigabit access and unparalleled scalability to 10G performance. It provides high-density performance, Layer 3 routing protocol with 336Gbps switching capacity. It provides comprehensive end to end QoS as well as flexible and rich management , security settings, which can meet the high speed, secure and smart requirement for small and medium-size enterprise networks. The powerful network security features also make it perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. With total power consumption up to 760W(380W +380W) It offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.

Features
● 4*1G/2.5G/10G SFP+ ports uplink, 48*10/100/1000M RJ45 ports downlink, 1*RJ45 console port , 1*OOB port and 1* USB 2.0 port for switch basic management and setup
● Offer 500W + 500W redundant hot-swap power supply, Max PoE power budget 380W + 380W
● Complies with IEEE 802.3at, IEEE802.3af standard. Max output power consumption per port can reach 30W
● Automatic power and fan status monitoring and alarming mechanisms
● Automatic fan speed adjustment based on the change in temperature
● Self-protection mechanisms that protect power supply against overcurrent, overvoltage, and overtemperature conditions
● Layer 3 features: Supports static and dynamic routing, RIP, OSPF, BGP4, ECMP, VRRP
● Port aggregation: Supports GE ports, 2.5GE and 10GE port aggregation, static and dynamic aggregation
● VLAN : Supports access, truck , hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN
● GVRP: Supports normal mode, fixed mode and forbidden mode
● QinQ:  Supports port-based, VLAN-based and flow-based QinQ
● Port Mirroring: Many to one port mirroring
● Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
● Multicast: Supports IGMP snooping
● QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS
● Security: Support Dot1x，port authentication，mac authentication，RADIUS service; Support port-security, ip source guard，IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation
● Management : Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management，HTTP1.1，HTTPS; Syslog; RMON （Remote Monitoring）alarm, event and history record; NTP, temperature monitoring; Ping、Tracerout ,optical transceiver DDM and copper port cable detection function; Supports TFTP Client, Telnet Server, Telnet Client, SSH Server and IPv6 management; PoE management
● Firmware , configure backup/restore through Web GUI, FTP and TFTP

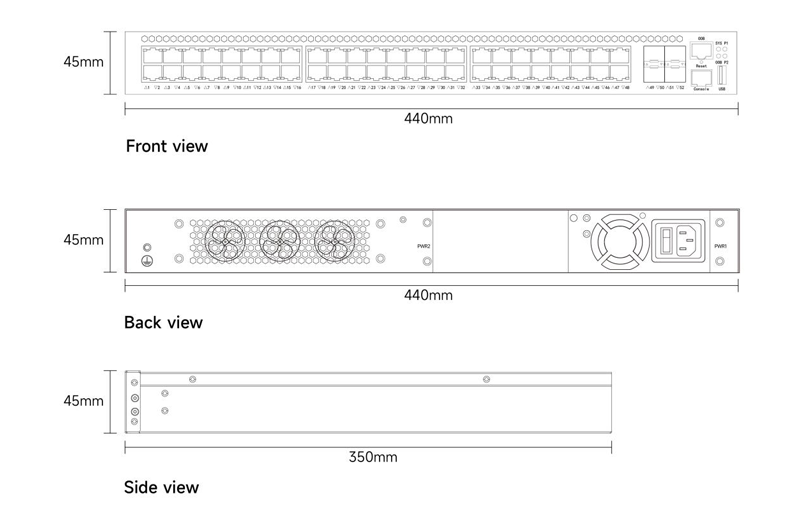

Dimension
