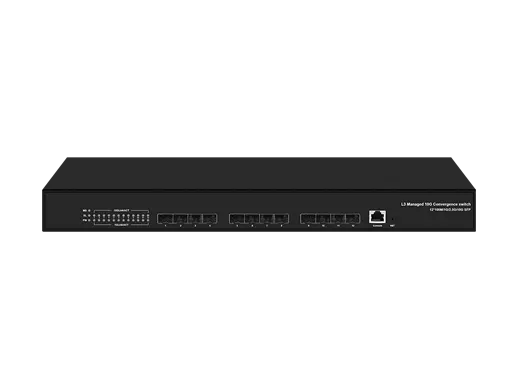

L3 Managed 10G Switch, 12x100/1000M/10G SFP+

LA-SWM3-10G1200-S
LA-SWM3-10G1200-S is a L3 managed 10G Switch, it is designed to meet the needs of modern enterprise and data center environments. Equipped with 12 SFP+ ports that support 100M/1G/10G speeds.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-SWM3-10G1200-S is a L3 managed 10G Switch, it is designed to meet the needs of modern enterprise and data center environments. Equipped with 12 SFP+ ports that support 100M/1G/10G speeds, it offers flexible connectivity options for a variety of devices, from high-speed servers to edge devices in complex networks. The switch's robust management features provide complete control over network traffic, ensuring efficiency, security, and scalability in demanding network environments.


Features

● 12x100/1000M/10G SFP+ ports

● Advanced Layer 2 and Layer 3 Switching

● Comprehensive Security Features

● Flexible Management Options

● High Availability and Redundancy

● Energy Efficient

Fixed Port12x100/1000M/10G SFP+
Console Port1 console port
Reset Key1
CPUCortex-A9 600Mhz
DDR8G DDR3
FLASH512Mbytes
RAM1024Mbytes
Bandwidth512Gbps
Packet Forwarding190.46Mpps
MAC16K
Buffer2Mbit SRAM Packet Buffer
Jumbo FrameJumbo packets up to 9 KB.
VLAN Address4K
Link AggregationSupports 128 trunk groups with up to 8 members per group
L3 RoutingIPV4 supports 768; IPV6 supports 384;
QoS Queue8
Transmission Distance10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(150 meter)
1000BASE-TX: Cat6 or later UTP(150 meter)
SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is≤120km (depending on the optical module)
LED IndicatorPWR: Power LED
SYS: System LED
1-12: 10G SFP connection indicator
PowerBuilt-in power AC: 100-240Vac 50-60Hz 0.6A  max 45W
Operating Temperature/Humidity-10~+55°C  5%~90% RH Non coagulation
Storage Temperature/Humidity-40~+75°C  5%~95% RH Non coagulation
Product /Packing size(L*W*H)440mmx200mmx45mm
515mmx300mmx95mm
N.W/G.W(kg)2.1kg/2.7kg
Lightning6KV 8/20us
Protection levelIP30
InstallationRack-mount (optional machine hanger spare parts)
CertificateCE-EMC EN55032; CE-LVD EN62368;
FCC Part 15 Class B; RoHS
WarrantyWhole device for 1 year (Accessories not included)
Port
Number of Fiber 10G or 1G ports
Port SpeedSupport negotiate, full-1000, full-100, half-100, full-10, half-10
Flow Controlsupport full-duplex IEEE 802.3x, half-duplex back pressure
Storm ControlSupports rate limit for broadcast, multicast, and DLF packets
Storm ConstrainSupport the detection of broadcast packets, multicast packets,
or uni cast packets on the port, shutdown the port if the rate is over the threshold.
Port MirrorSupport
Port Rate LimitSupport port ingress and egress rate limit
Link AggregationSupport manual link aggregation
Support LACP dynamic link aggregation
Supports up to 32 aggregation groups, each group up to 8 ports
Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy
Port IsolateSupport
Jumbo FrameSupport up to 16KB packet
Redundant PortSupport
MAC
MAC Table Capacity16K
MAC Table ManagementSupport
Forwarding ModeSupport IVL forwarding mode
Static MAC AddressSupport
MAC Address BindingSupport
MAC Address FilteringSupport
MAC Learning ControlControl the MAC learning based on port
VLAN
Number of VLANs4K
802.1q-based VLANSupport
MAC-based VLANSupport
IP-based VLANSupport
Protocol-based VLANSupport
Voice VLANSupport
VLAN MappingSupport 1:1 mapping
QinQSupport basic QinQ
Support flexible QinQ
Reliability
Spanning Tree ProtocolSupport STP/RSTP/MSTP
Port Loop DetectionSupport
EAPSSupport
ERPSSupport G.8032/Y.1344
LLDPSupport LLDP & LLDP-MED
UDLDFully compatible with Cisco's UDLD protocol
VLLPSupport, Only used with VRRP
(VRRP Layer-2 Loop Protection)
L3
ARPSupport static and dynamic ARP
Static RouteSupport
VLAN InterfaceSupport 32 VLAN interfaces
RIPSupport RIP v1/v2
OSPFSupport OSPFv2
Policy RouteSupport
VRRPSupport
Multicast
Static Multicast MAC AddressSupport
IGMP SNOOPINGSupport IGMP SNOOPING v1/v2/v3
Support IGMP Queerer
Support IGMP SNOOPING Filter
MVRSupport
GMRPSupport
ACL
Standard IP-based ACLSupport
Extended IP based ACLSupport
MAC IP-based ACLSupport
MAC ARP -based ACLSupport
ACL Port FilteringSupport
Time-based ACLSupport
QoS
Port Queue Number8
Port Queue Scheduling ModeSupport WRR, RR, WDRR, SP
Port-based ClassificationSupport
802.1p-based ClassificationSupport
DSCP - based ClassificationSupport
ACL - based ClassificationSupport
QoS PolicySupport packets mapping to queue
Support COS or DSCP Remarking
Support rate limits of data flow
Support data flow statistics
Support mirroring of data flow
DHCP
DHCP ClientSupport
DHCP SnoopingSupport
DHCP RelaySupport
DHCP ServerSupport
DHCP Option 82Support
Management
CLI ManagementSupport Console, Telnet and SSH
WEB ManagementSupport HTTP and HTTPS
SNMP ManagementSupport SNMP v1, v2c
Support SNMP TRAP
Support lots of standard and private Mobs
User ManagementSupport multiple user management
Log ManagementSupport local log management
Support SYSLOG
RMONSupport RMON 1, 2, 3 and 9 groups
Cluster ManagementSupport NDP
Support NTDP
Support manual and automatic joining of cluster groups
Support cluster unified management
Configuration FileSupport uploading and downloading configuration file
Upgrade SoftwareSupport
Clock ManagementSupport local clock management
Support SNTP
Security
Switch Management SecuritySupport enabling and disabling TELNET, WEB and SNMP services
Support TELNET, WEB and SNMP services to bind to standard IP ACLs
Support for limiting the number of TELNET connections
CPU ProtectionThe switch's own security protection prevents large data streams from attacking the switch itself.
AAASupport 802.1x
Support RADIUS
Supports authentication, authorization, and accounting through RADIUS server
Support port-based and MAC-based 802.1x
Support 802.1x guest VLAN
IP MAC BindingSupport static configuration of IP, MAC and port binding
DHCP SNOOPINGSupport dynamic ARP binding to prevent ARP spoofing
Support dynamic IP, MAC and port binding
Support fixed port to connect to DHCP server to prevent private connection to DHCP server
Prevent ARP SpoofingSupport manually configuring MAC ARP - based ACL rules to prevent ARP spoofing.
Support the DHCP SNOOPING function. During the process of obtaining an IP address by DHCP, the switch dynamically binds ARP to the port to prevent ARP spoofing.
Debugging
PINGSupport
TRACEROUTESupport
TELNET ClientSupport


Date Version Description Download
2025-03-11 L3 Managed 10G Switch, 12x100/1000M/10G SFP+
