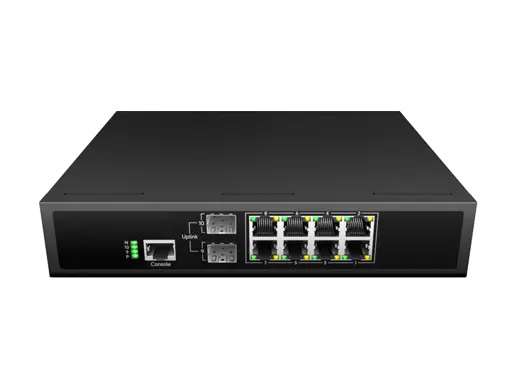

L3 Lite Managed Ethernet Switch 8x1G RJ45, 2x1G SFP

LA-SWM2R-G0208-Z
LA-SWM2R-G0208-Z is Layer 3 Lite managed switch with 8x10/100/1000Mbps adaptive RJ45 ports and 2x1000Mbps SFP optical interfaces. Each RJ45 port supports auto-rollover and wire-speed forwarding capabi...
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-SWM2R-G0208-Z is Layer 3 Lite managed switch with 8x10/100/1000Mbps adaptive RJ45 ports and 2x1000Mbps SFP optical interfaces. Each RJ45 port supports auto-rollover and wire-speed forwarding capabilities. The store-and-forward method is used, combined with QoS technology, to ensure that bandwidth is effectively allocated to each port and provides stable and reliable data transmission.


Features
● Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward
● Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
● Support port auto flip (Auto MDI/MDIX)
● Panel indicator monitoring the status and help failure analysis
● Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
● Support WEB, TELNET, CLI, SSH, SNMP, RMON management
● Surge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact

Provider Mode Ports
Fixed Port2*1000Mbp Base-X, 8*10/100/1000 Base-T
Management PortSupport Console
Power InterfaceAC triangular seat
LED IndicatorsPWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair0-100m (CAT5e, CAT6)
Mono-mode Optical Fiber20/40/60/80/100KM
Multi-mode Optical Fiber550m
Network Topology
Ring TopologySupport
Star TopologySupport
Bus TopologySupport
Tree TopologySupport
Hybrid TopologySupport
Electrical Specifications
Input VoltageAC100~240V, 50/60Hz
Total Power Consumption≤10W
Layer 2 Switching
Switching Capacity20Gbps
Packet Forwarding Rate14.88Mpps
MAC Address Table8K
Buffer4.1M
Forwarding Delay<10us
VLAN256
GVRPSupport
Protocol VLANSupport
Voice VLANSupport
Surveillance VLANSupport
MAC VLANSupport
Ethernet Channel/ 802 .3adSupport
LACPSupport
Interface SpeedSupport
Duplex ModeSupport
Flow ControlSupport
Jumbo FrameSupport
DHCP ClientSupport
SNTP ClientSupport
Port StatisticsSupport
Protected PortsSupport
EEESupport
Ethernet Ring Protection SwitchingSupport
LLDPSupport
LLDP 802.1 TLVSupport
MSTP / RSTP / STPSupport
STP BPDU FilterSupport
STP BPDU guardSupport
STP Port FastSupport
IGMP SnoopingSupport
MLD SnoopingSupport
MVRSupport
DHCP Interface Priority IP BindingSupport
Device ScanSupport
Layer 3 Route
IPV4 Management AddressSupport
IPV6 Management AddressSupport
Static Routes IPv4Support
Static Routes IPv6Support
ARPSupport
Loopback InterfaceSupport
DHCP ServerSupport
DNS ServerSupport
DNS ClientSupport
Convergence & Equipment Diagnosis
ACLSupport MAC standard/expand ACL
Support IPv4 standard/expand ACL
Support IPv6 standard/expand ACL
QoSSupport QoS re-marking, port trust
Support port rate limiting
Support egress rate-limited
Support SP, WRR queue scheduling
Support COS mapping, DSCP mapping, IP priority mapping
Equipment DiagnosisSupport Console/RAM/Flash Log
Support Port mirroring 1:1 or 1:M
Support Ping
Support Trace-route
Support Copper test
Support Optical transceiver DDM
Support UDLD protocol
Management & Security
CLI / ConsoleSupport
RMONSupport
WEB ManagementSupport
SNMPSupport SNMPv1/v2c/v3
User ManagementSupport
System LogSupport
Configuration File Download/
Upload Telnet/SSH
Support
Upgrade FirmwareSupport
SecuritySupport managing channel configuration
Support AAA/802/1X/MAC-Based/WEB-Based authentication
Support DoS attack prevention
Support dynamic ARP check
Support DHCP Snooping
Support IP Source Guard
Support port Security
Support port Isolation
Support storm control
Environment
Operating Temperature-10℃~+50℃
Storage Temperature-40℃~+85℃
Relative Humidity10%~90% (non-condensing)
Thermal MethodsFan-less design, natural heat dissipation
MTBF100,000 hours
Mechanical Dimensions
Product Size220*161*44mm
Installation MethodDesk-top
Weight0.97KG
EMC & Ingress Protection
Surge Protection of PowerIEC 61000-4-5 Level 4 (6KV/2KV)
Surge Protection of Ethernet portIEC 61000-4-5 Level 4 (4KV/2KV)
ESDIEC 61000-4-2 Level 4 (8K/15K)
Free Fall0.5m
Certificate
Security CertificateCE, FCC, RoHS

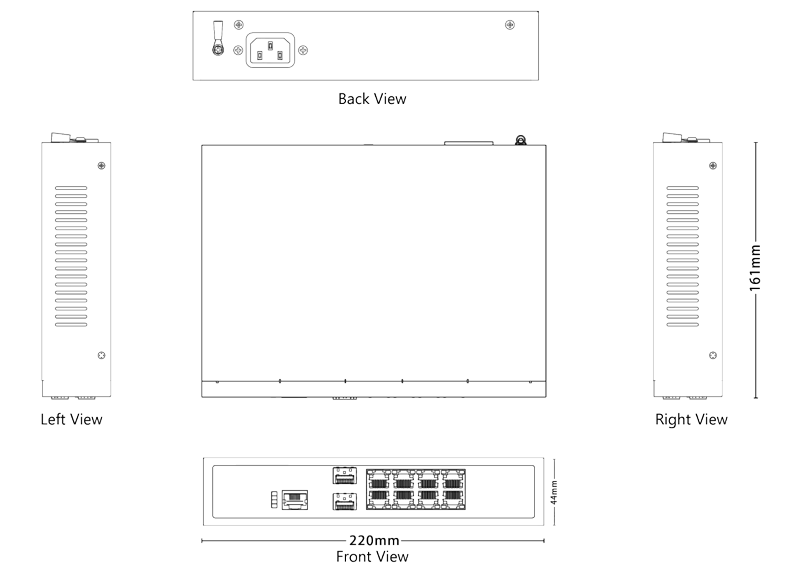

Dimension

Dimension of L3 Lite Managed Ethernet Switch 8x1G RJ45, 2x1G SFP

Ordering Information
LA-SMM2R-G0208-ZLayer 3 Lite Managed Ethernet Switch 2x1000Base-X, 8x10/100/1000 Base-T
