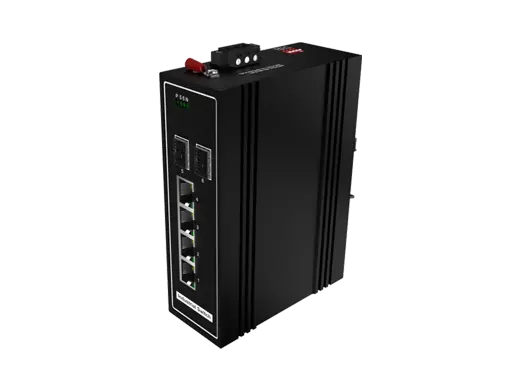

Name: Industrial Switch 2xGigabit SFP, 4x10/100/1000Base-T PoE
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

IDSAIM-02S04GP-Z4 Industrial Ethernet Gigabit PoE Switch, is fan-less and energy-saving design, provide reliable power solution for SMBs deploying Power over Ethernet networks. It is small, convenient and easy to maintain and offers high reliability and security to guarantee the continuous industrial operation in harsh environments from -40℃~ +75℃, such as control cabinet of transportation, factory floors, outdoors, or other low or high temperature environments.

Features

● Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at

● Auto-MDI/MDI-X detection and negotiation in half/full-duplex modes for 10/100/1000Base-TX RJ-45 port

● Features Store-and-Forward mode with wire-speed filtering and forwarding rates

● Supports packet size of up to 10K bytes

● Robust IP40 protection, fan-less design, high/low temperature resistance -40℃~ +75℃

● DC48V-58V input

● CSMA/CD protocol

● Automatic source address learning and aging

Provider Mode Ports
Fixed Port	21000 Base-X，410/100/1000 Base-T
Power Interface	Phoenix terminal, Dual power input
LED Indicators	PWR, Link/ACT LED
DIP (Non-PoE)
1	QoS
2	Storm suppression
3	Port isolation
4	flow control
B
1	Remote PD Reset
2	250m Extension
3	Port Isolation
4	Flow Control
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e, CAT6)
Mono-mode Optical Fiber	20/40/60/80/100KM
Multi-mode Optical Fiber	550m
Network Topology
Ring Topology	Not support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
input voltage	DC12-58V; PoE DC 48-58V
Total Power consumption	<5W(non-PoE), <125W(PoE)
PoE Support
PoE Port	1-4
PoE Standard	802.3af, 802.3at
Pin Assignment	1,2+, 3,6-
Layer 2 Switching
Switching Capacity	12Gbps
Packet Forwarding Rate	8.92Mpps
MAC Address Table	2K
Buffer	1M
Forwarding Delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 9K bytes
Environment
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+75℃
Relative Humidity	10%~90% (non-condensing)
Thermal Methods	Faceless design, natural heat dissipation
MTBF	100,000 hours
Mechanical Dimensions
Product Size	14310446mm
Installation Method	Din-Rail
Net Weight	0.58KGs
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us)
ESD	IEC 61000-4-2 Level 4 (8K/15K)
Certification
Certificates	CE, FCC, RoHS

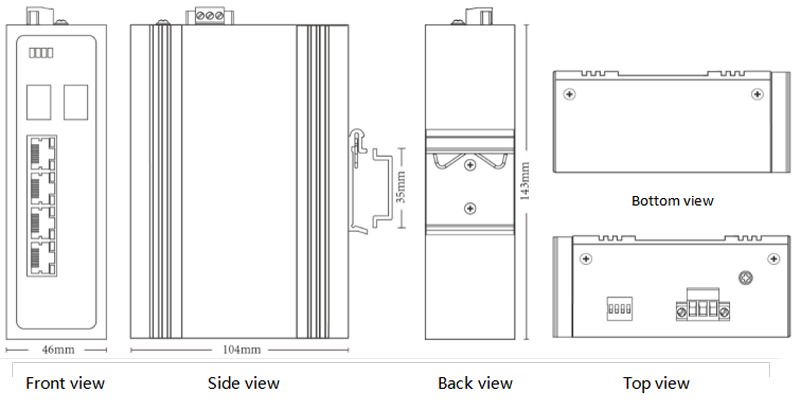

Dimensions

Dimensions of Industrial Switch 2xGigabit SFP, 4x10/100/1000Base-T PoE

Date	Version	Description			Download
2025-03-10		Industrial Switch 2xGigabit SFP, 4x10/100/1000Base-T PoE
