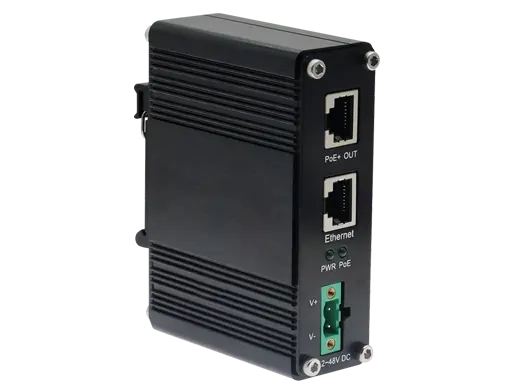

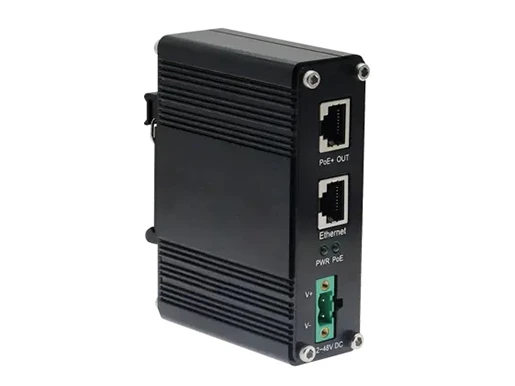

Industrial Single Port 10/100/1000Mbps/2.5/5G/10G PoE Injector 60w

LA-IPOE60-10GT-Y
LA-IPOE60-10GT-Y is a hardened 10G PoE injector designed to connect IEEE802.3 af/at PoE devices, such as cameras and access points, to a non-PoE LAN switch over distances up to 100 meters.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-IPOE60-10GT-Y is a hardened 10G PoE injector designed to connect IEEE802.3 af/at PoE devices, such as cameras and access points, to a non-PoE LAN switch over distances up to 100 meters. Both the Ethernet port (to the switch) and the PoE Out port (to the PoE device) support 10/100/1000Mbps/2.5G/5G/10GBase-T and comply with IEEE 802.3ab standards. Additionally, the PoE Out port is compliant with IEEE802.3 at.


Features
● DC12-48V Power Input
● 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
● Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
● Support 10/100/1000Mbps/2.5G/5G/10G Base-TX
● Extensive LED indicators for PoE diagnostics
● Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
● Small Size 95x70x30mm
● Aluminum Alloy Metal Case
● Support DIN-rail mounting and wall mounting installation

Ethernet
StandardsIEEE802.3af/at Power over Ethernet
Processing TypeForward, Half-duplex, Full-duplex
Forward Filter Rate14,880,000pps (10Gbps)
Cabling10/100/1000Mbps/2.5G/5G/10GBase-T: Cat7 or above
Maximum DistanceCat7 UTP up to 30m
Connector2xRJ45
Environmental
Operating Temperature-40°C to 80°C (-40°F to 176°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Relative Humidity5% to 95% non-condensing
MTBF>200,000hrs
Electrical and Mechanical
Input PowerDC12-48V (Terminal Block)
Power ConsumptionMax. 65W
PoE (Power over Ethernet)
StandardIEEE802.3af/at
PortRJ45
Power Pin Assignment4/5(+), 7/8(-)
Max. Power per PortMax. 60W (Alternative B Mode)
LED Indicators
PowerPower Status
PoEPoE Status
Dimensions (W x D x H)95x70x30mm
Weight0.25Kg
CasingAluminum Case
Mounting OptionsDIN-Rail / Wall-mount
Certifications
CertificatesCE, FCC, ROHS
Surge ProtectionRJ45: 1KV; Power: 500V; ESD: 4KV/8KV

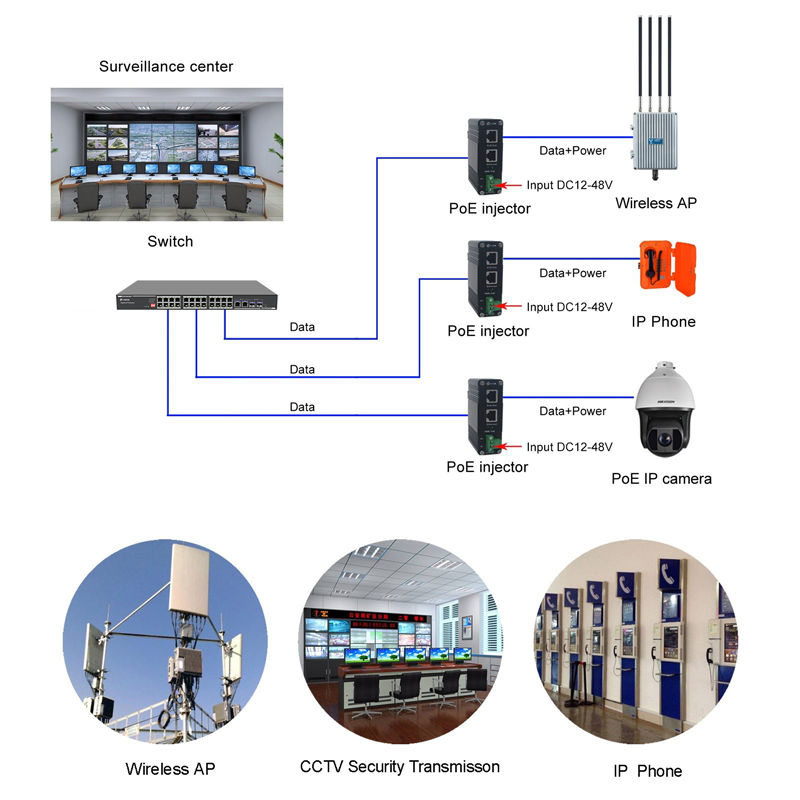

Connectivity Solutions of Industrial Single Port 10/100/1000Mbps/2.5/5G/10G PoE Injector 60w

Ordering Information
LA-IPOE60-10GT-YIndustrial Single Port 10/100/1000Mbps/2.5G/5G/10GBase-T PoE Injector 60w DC12-48V Power Input Default DIN-Rail Bracket installed; Wall Mount Bracket is included.


Date Version Description Download
2025-03-14 Datasheet_Industrial 10G PoE Injector 60w, LA-IPOE60-10GT-Y_V1.2 LY
