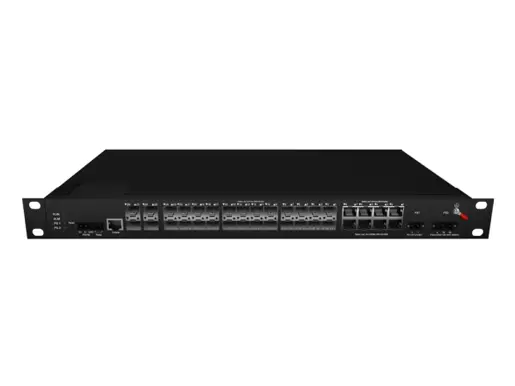

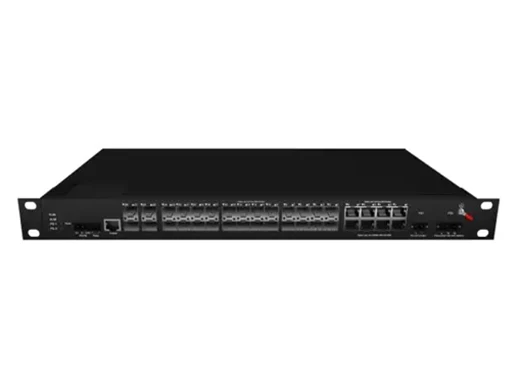

Industrial Rackmount L3 Managed Switch 8x1G Combo, 16x1G SFP, 4x10G SFP

LA-IS8M3-10G0416C08-AD-Z
Industrial Rackmount L3 Managed Switch support 16*1000M SFP, 8*1000M Combo(TP/SFP), 4*10G SFP+ ports, with fan-less cooling circuit design.
Overview
Specifications
Connectivity Solutions
Models
Resources

Industrial Rackmount L3 Managed Switch support 16*1000M SFP, 8*1000M Combo(TP/SFP), 4*10G SFP+ ports, with fan-less cooling circuit design, wide range working environment temperature, high protection level, lightning protection, integrated switching, safety and various rich protocols. The multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.


Features

  • Dual Power Input: DC12-58V, AC 100~240V 50/60Hz

  • Operating Temperature: -40℃ ~ +75℃

  • Shell: IP40 protection, fan-less design

  • Anti-static: 8KV-15KV

Fixed Port16*1000M SFP, 8*1000M Combo(TP/SFP), 4*10G SFP+
Management PortSupport console
Power InterfacePhoenix terminal, redundant dual power supply
LED IndicatorsPWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair0-100m (CAT5e, CAT6)
Single Mode Optical Fiber20/40/60/80/100KM
Multimode Optical Fiber550m
Network Topology
Ring TopologySupport
Star TopologySupport
Bus TopologySupport
Tree TopologySupport
Hybrid TopologySupport
Electrical Specifications
Input VoltageDC12-58V, AC100~240V 50-60HZ
Total Power Consumption<36w
Layer 2 Switching
Switching Capacity160G
Packet Forwarding Rate95.23Mpps
MAC Address Table16K
VLANSupport 4K
Buffer12M
Forwarding Delay<10us
MDX/MIDXSupport
Flow ControlSupport
Jumbo FrameSupport 10Kbytes
Spanning TreeSupport STP/RSTP/MSTP
Ring ProtocolSupport ERPS
Link AggregationSupport 12 groups
MulticastSupport IGMP Snooping
Port MirroringSupport
Storm ControlSupport
Interface CountersSupport
QINQSupport
802.1XSupport
MAC AuthenticationSupport
Port IsolationSupport
RmonSupport
NTP ClientSupport
DHCP ClientSupport
DHCP SnoopingSupport
PING/Tracert DetectionSupport
Dying GaspSupport
DDMSupport
Port SecuritySupport
IP Source GuardSupport
Device ScanSupport
Layer 3 Function
Static RoutingSupport 1K
ARPARP entry aging
Equal Cost RoutingEqual cost routing
The max. number of next-hops that can be configured for ECMP
Support traffic balancing configuration
VRRPVirtual routing redundancy protocol
RIPSupport
OSPFv2Support
DHCP ServerSupport
Convergence
ACLSupport ACL 500
Support IP standard ACL
Support MAC expand ACL
Support IP expand ACL
QOSSupport QoS re-marking, priority mapping
Support SP, WRR queue scheduling
Support engress rate-limited, egress rate-limit
Support Policy-based QoS
Management
CLISupport
ConsoleSupport
Telnet/SSHSupport
WEB ManagementSupport
IP ManagementSupport IPV4/IPV6
SNMPSupport SNMPv1/v2c/v3
User ManagementSupport
System LogSupport
ConfigurationSupport
File Download/Upload
Upgrade FirmwareSupport
Environment
Operating Temperature-40℃~+75℃
Storage Temperature-40℃~+75℃
Relative Humidity5%~95% (non-condensing)
Thermal MethodsFan-less design
MTBF100,000 hours

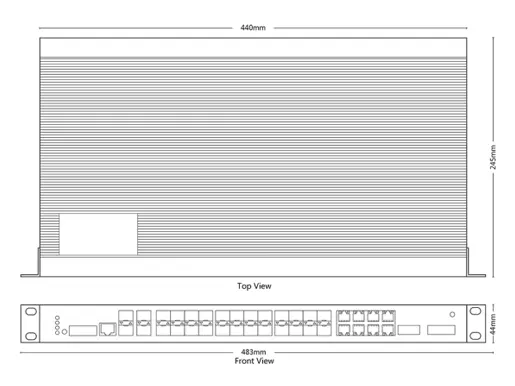

Mechanical Dimensions
Product Size440*245*44mm
Installation MethodRack mount
Weight3.6KG
EMC & Ingress Protection
IP LevelIP40
Surge Protection of PowerAC: IEC 61000-4-5  Level 3(4KV/2KV)(8/20us)
DC: IEC 61000-4-5  Level X(8KV/8KV)(8/20us)
Surge Protection of Ethernet PortIEC 61000-4-5 Level 4(4KV/2KV) (10/700us)
RSIEC 61000-4-3 Level 3(10V/m)
EFIIEC 61000-4-4 Level 3(1V/2V)
CSIEC 61000-4-6 Level 3(10V/m)
PFMFIEC 61000-4-8 Level 4(30A/m)
DIPIEC 61000-4-11 Level 3(10V)
ESDIEC 61000-4-2 Level 4(8K/15K)
Free Fall0.5m
AuthenticationCE/FCC/RoHS


Ordering Information
LA-IS8M3-10G0416C08-AD-ZIndustrial Rackmount Layer 3 Managed Switch 16*1000M SFP, 8*1000M Combo(TP/SFP), 4*10G SFP+ Dual Power Input DC12-58V and AC100~240V
