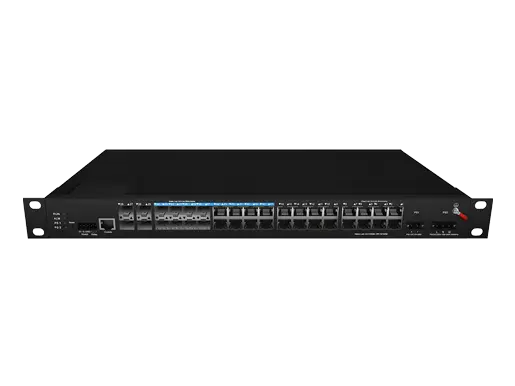

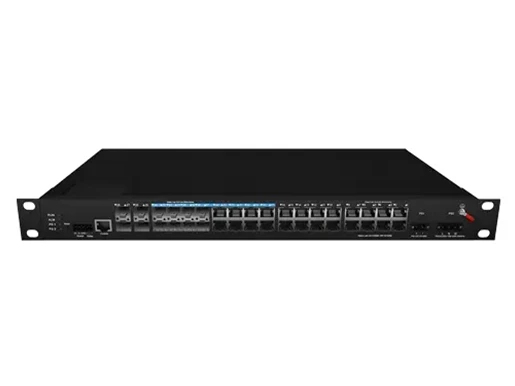

LA-IS8M3-G04C0816-AD-Z is L3 managed industrial Ethernet fast switch, features 4 Gigabit optical ports, 8 Gigabit combo ports, and 16x10/100/1000Base-X ports. It supports PoE only in DC mode. The switch offers exceptional industrial-grade quality, including resistance to high and low temperatures, lightning protection, and fan-less heat dissipation circuit design. It operates in a wide range of temperatures and has a high protection level, making it suitable for various harsh environments.Additionally, the switch integrates a variety of rich protocols, including switching and security features. It supports Ethernet Ring Protection Switching (ERPS), significantly enhancing networking flexibility and improving the reliability and security of industrial networks. This makes it ideal for deployment in rail transit, safe cities, intelligent transportation, outdoor monitoring, and other demanding applications.
Features
● Input voltage: DC12~58V, AC100~240V 50/60Hz
● Operating Temperature: -40℃ ~ +75℃
● Shell: IP40 protection, fan-less design
● Anti-static: 8KV-15KV
● MTBF: 100000 Hours
Provider Mode Ports | |
Fixed Port | 4x1000Base-X, 8x1000M combo, 16x10/100/1000Base-T |
Management Port | Support console |
Power Interface | Phoenix terminal, dual power supply redundancy |
LED Indicators | PWR, Link/ACT LED |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m (CAT5e, CAT6) |
Mono-mode Optical Fiber | 20/40/60/80/100KM |
Multimode Optical Fiber | 550m |
Network Topology | |
Ring Topology | Support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Hybrid Topology | Support |
Electrical Specifications | |
Input Voltage | DC12-58V, AC100~240V 50/60HZ |
Total Power Consumption | <36W(non-PoE); |
Layer 2 Switching | |
Switching Capacity | 160G |
Packet Forwarding Rate | 95.23Mpps |
MAC Address Table | 16K |
VLAN | Support 4K |
Buffer | 12M |
Forwarding Delay | <10us |
MDX/MIDX | Support |
Flow Control | Support |
Jumbo Frame | 10Kbytes |
Spanning Tree | Support STP/RSTP/MSTP |
Ring Protocol | Support ERPS |
Link Aggregation | Support 12 groups |
Multicast | Support IGMP Snooping |
Port Mirroring | Support |
Storm Control | Support |
Interface Counters | Support |
QINQ | Support |
802.1X | Support |
Radius/MAC Authentication | Support |
Port Isolation | Support |
Rmon | Support |
NTP Client | Support |
DHCP Client | Support |
DHCP snooping | Support |
Ping/Tracert | Support |
Dying Gasp | Support |
DDM | Support |
Port Security | Support |
IP Source Guard | Support |
Device Scan | Support |
Layer 3 Function | |
Static Routing | Support 1K static routing |
ARP | ARP entry aging |
Equal-cost Routing | Equal-cost routing |
Configurable maximum next-hop number of ECMP | |
Support traffic balancing configuration | |
VRRP | Virtual Router Redundancy Protocol |
RIP | Support |
OSPFv2 | Support |
DHCP server | Support |
Convergence | |
ACL | Support ACL 500 |
Support IP standard ACL | |
Support MAC expand ACL | |
Support IP expand ACL | |
QoS | Support QoS re-marking, priority mapping |
Support SP, WRR queue scheduling | |
Support engress rate-limited, egress rate-limit | |
Support Policy-based QoS | |
Management | |
CLI | Support |
Console | Support |
Management IP | Support IPv4/IPv6 |
Telnet/SSH | Support |
WEB Management | Support |
SNMP | Support SNMPv1/v2c/v3 |
User Management | Support |
System Log | Support |
Configuration File Download/Upload | Support |
Upgrade Firmware | Support |
Environment | |
Operating Temperature | -40℃~+75℃ |
Storage Temperature | -40℃~+75℃ |
Relative Humidity | 5%~95% (non-condensing) |
Thermal Methods | Fan-less, natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product Size | 440x245x44mm |
Installation Method | Rackmount |
Weight | 3.6KG |
EMC & Ingress Protection | |
IP Level | IP40 |
Surge Protection of Power | AC: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) |
DC: IEC 61000-4-5 Level X (8KV/8KV) (8/20us) | |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us) |
RS | IEC 61000-4-3 Level 3 (10V/m) |
EFI | IEC 61000-4-4 Level 3 (1V/2V) |
CS | IEC 61000-4-6 Level 3 (10V/m) |
PFMF | IEC 61000-4-8 Level4(30A/m) |
DIP | IEC 61000-4-11 Level3 (10V) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free Fall | 0.5m |
Certification | |
Certificates | CE/FCC/RoHS |
Date | Version | Description | Download | ||
2025-03-11 | Industrial Rackmount L3 Managed Ethernet Switch 16x10/100/1000M RJ45, 8x1000M Combo, 4x1000M SFP |
