Overview

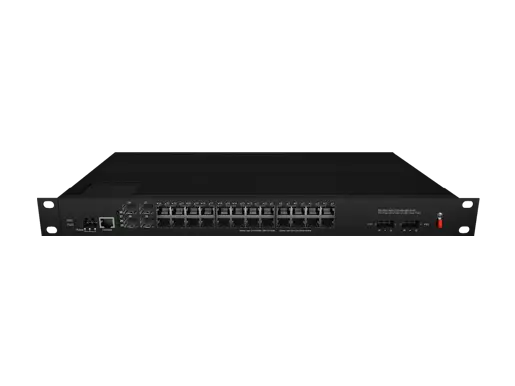

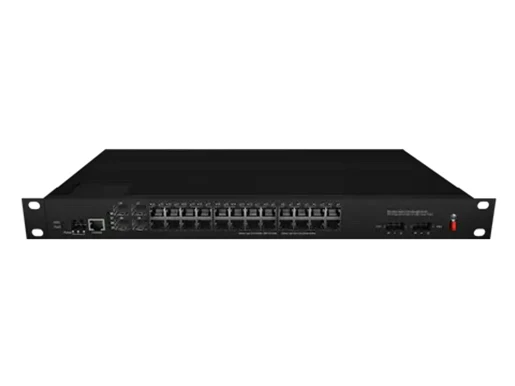

LA-IS8M-G0424P-2DC-Z is a managed industrial Ethernet switch featuring 4x 1G optical ports and 16x10/100/1000Base-T ports, with PoE supported via DC power. Built for industrial-grade performance, it offers high/low-temperature resistance, lightning protection, and a fan-less heat dissipation design, ensuring reliable operation across a wide temperature range and harsh conditions. Equipped with advanced protocols for switching and security, it supports Ethernet Ring Protection Switching (ERPS), greatly enhancing network flexibility, reliability, and security. This makes it ideal for deployment in rail transit, smart cities, intelligent transportation, outdoor monitoring, and other demanding environments.
Features
● Input voltage: DC12-58V(non-PoE), DC48-58V(PoE)
● Operating Temperature: -40℃ ~ +75℃
● Shell: IP40 protection, fan-less design
● Anti-static: 8KV-15KV
● MTBF: 100000 Hours
Provider Mode Ports | |
Fixed Port | 4x1000Base-X, 24x10/100/1000Base-T |
Management Port | Support console |
Power Interface | Phoenix terminal, dual power supply redundancy |
LED Indicators | PWR, Link/ACT LED |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m (CAT5e, CAT6) |
Single-mode Optical Fiber | 20/40/60/80/100KM |
Multimode Optical Fiber | 550m |
Network Topology | |
Ring Topology | Support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Hybrid Topology | Support |
Electrical Specifications | |
Input Voltage | DC12-58V(non-PoE), DC48-58V(PoE) |
Total Power Consumption | <25W(non-PoE), <385W(PoE) |
PoE Support | |
PoE Port | 1-24 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1, 2+, 3, 6- |
PoE Management | Support |
Layer 2 Switching | |
Switching Capacity | 68G |
Packet Forwarding Rate | 50.59Mpps |
MAC Address Table | 16K |
VLAN | Support 4K |
Buffer | 12M |
Forwarding Delay | <10us |
MDX/MIDX | Support |
Flow Control | Support |
Jumbo Frame | 10Kbytes |
Spanning Tree | Support STP/RSTP/MSTP |
Ring Protocol | Support ERPS |
Link Aggregation | Support 12 groups |
Multicast | Support IGMP Snooping |
Port Mirroring | Support |
Storm Control | Support |
Interface Counters | Support |
QINQ | Support |
802.1X | Support |
Radius/MAC Authentication | Support |
Port Isolation | Support |
RMON | Support |
NTP Client | Support |
DHCP Client | Support |
DHCP Snooping | Support |
Ping/Tracert | Support |
Dying Gasp | Support |
DDM | Support |
Port Security | Support |
IP Source Guard | Support |
Device Scan | Support |
Convergence | |
ACL | Support ACL 500 |
Support IP standard ACL | |
Support MAC expand ACL | |
Support IP expand ACL | |
QoS | Support QoS re-marking, priority mapping |
Support SP, WRR queue scheduling | |
Support engress rate-limited, egress rate-limit | |
Support Policy-based QoS | |
Management | |
CLI | Support |
Console | Support |
Telnet/SSH | Support |
WEB Management | Support |
Management IP | Support IPv4/IPv6 |
SNMP | Support SNMPv1/v2c/v3 |
User Management | Support |
System Log | Support |
Configuration File Download/Upload | Support |
Upgrade Firmware | Support |
Environment | |
Operating Temperature | -40℃~+75℃ |
Storage Temperature | -40℃~+75℃ |
Relative Humidity | 5%~95% (non-condensing) |
Thermal Methods | Fan-less, natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product Size | 440x245x44mm |
Installation Method | Rackmount |
Weight | 3.6KG |
EMC & Ingress Protection | |
IP Level | IP40 |
Surge Protection of Power | DC: IEC 61000-4-5 Level X (8KV/8KV) (8/20us) |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us) |
RS | IEC 61000-4-3 Level 3 (10V/m) |
EFI | IEC 61000-4-4 Level 3 (1V/2V) |
CS | IEC 61000-4-6 Level 3 (10V/m) |
PFMF | IEC 61000-4-8 Level 4 (30A/m) |
DIP | IEC 61000-4-11 Level 3 (10V) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free Fall | 0.5m |
Certification | |
Certificates | CE/FCC/RoHS |
Dimensions
Date | Version | Description | Download | ||
2025-03-11 | Industrial Rackmount L2 Managed PoE Switch 24x10/100/1000M RJ45, Uplink 4x1G SFP |
