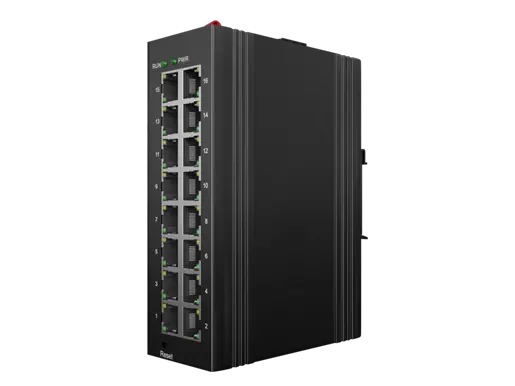

Industrial Managed Switch 16x10/100M RJ45

LA-IS7M2R-F0016-CR-Z
LA-IS7M-F0016-CR-Z is a 16-port 10/100Base-TX managed industrial Ethernet fast switch. Through a fan-less heat dissipation circuit design, a wide range of operating temperatures, and a high protection...
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-IS7M-F0016-CR-Z is a 16-port 10/100Base-TX managed industrial Ethernet fast switch. Through a fan-less heat dissipation circuit design, a wide range of operating temperatures, and a high protection level, it offers exceptional industrial-grade quality with high/low temperature resistance and lightning protection. Moreover, it integrates various rich protocols such as switching and security, and supports Ethernet Ring Protection Switching (ERPS) technology, greatly enhancing network flexibility and strengthening the reliability and security of industrial networks. It is well-suited for deployment in harsh environments such as rail transit, safe city initiatives, intelligent transportation, outdoor surveillance, and other challenging conditions.

Features
● Input Voltage: DC12-58V(non-PoE)
● Operating Temperature: -20℃~+75℃
● Shell: IP40 protection, fan-less design
● Anti-static: 8KV-15KV

Fixed Port16x10/100M RJ45
Management PortSupport console
Power InterfacePhoenix terminal, redundant dual power supply
LED IndicatorsPWR, RUN, Link/ACT
Cable Type & Transmission Distance
Twisted-pair0-100m (CAT5e, CAT6)
Single Mode Optical Fiber/
Multimode Optical Fiber/
Network Topology
Ring TopologySupport
Star TopologySupport
Bus TopologySupport
Tree TopologySupport
Hybrid TopologySupport
Electrical Specifications
Input VoltageDC12-58V(non-PoE)
Total Power Consumption<10W(non-PoE)
Layer 2 Switching
Switching Capacity3.2G
Packet Forwarding Rate2.38Mpps
MAC Address Table8K
VLAN256
Buffer4.1M
Forwarding Delay<5us
MDX/MIDXSupport
Flow ControlSupport
GVRPSupport
Protocol VLANSupport
Voice VLANSupport
Surveillance VLANSupport
MAC VLANSupport
Etherchannel/802.3adSupport
LACPSupport
Interface SpeedSupport
Duplex ModeSupport
Flow ControlSupport
Jumbo frameSupport
DHCP ClientSupport
SNTP ClientSupport
Port StatisticsSupport
Protected PortsSupport
EEESupport
ERPSSupport
LLDPSupport
LLDP 802.1 TLVSupport
MSTP / RSTP / STPSupport
STP BPDU FilterSupport
STP BPDU guardSupport
STP Port FastSupport
IGMP SnoopingSupport
MLD SnoopingSupport
MVRSupport
IP Source GuardSupport
Device ScanSupport
Layer 3 Function
IPV4 Management AddressSupport
IPV6 Management AddressSupport
Static Routes IPv4Support 32
Static Routes IPv6Support 32
ARPSupport
Loopback InterfaceSupport
DHCP ServerSupport
DNS ServerSupport
Convergence
ACLSupport ACL 500
Support IP standard ACL
Support MAC expand ACL
Support IP expand ACL
QoSSupport QoS re-marking
Support port trust
Support port speed limit
Support egress queue speed limit
Support SP, WRR scheduling algorithm
Support COS mapping, DSCP mapping, IP priority mapping
Management
User ManagementSupport
System LogSupport
Upgrade FirmwareSupport
Configuration File Download/UploadSupport
SNMPSupport SNMP V1/V2/V3
CLISupport
WEB ManagementSupport
Telnet/SSHSupport
RMONSupport
Security
Managing Channel ConfigurationSupport
AAA CertificationSupport
802.1X CertificationSupport
MAC-Based CertificationSupport
WEB-Based CertificationSupport
DoS Attack PreventionSupport
Dynamic ARP InspectionSupport
DHCP SnoopingSupport
IP Source GuardSupport
Port SecuritySupport
Protected PortsSupport
Storm ControlSupport
Equipment Diagnosis
RAM logSupport
Flash logSupport
Port MirroringSupport 1:1 or M:1
PingSupport
TracerouteSupport
Copper port testSupport
DDMSupport
UDLD ProtocolSupport
Environment
Operating Temperature-20℃~+75℃
Storage Temperature-40℃~+85℃
Relative Humidity5%~95% (non-condensing)
Thermal MethodsFan-less design
MTBF100,000 hours
Mechanical Dimensions
Product Size144x104x48mm
Installation MethodDIN-rail
Weight0.6KG
EMC & Ingress Protection
Surge Protection of PowerCommon mode 4KV, differential mode 4KV
Surge Protection of Ethernet portCommon mode 4KV, differential mode 4KV
ESDContact 8K, air 15K
Free Fall0.5m
Certification
CertificatesCE, FCC, RoHS


Dimension

Dimension of Industrial Managed Switch 16x10/100M RJ45

Ordering Information
LA-IS7M2R-F0016-CR-ZIndustrial L2+ Managed Ethernet Switch 16x10/100M RJ45
