LA-IS7M2R-10G0408P-UA-Z is a 4-port 10G optical & 8-port 10/100/1000Base-T L2+ managed industrial PoE switch. It features high/low temperature resistance and lightning protection through a fan-less heat dissipation design. With a wide operating temperature range and high protection level, it ensures excellent industrial-grade quality. The switch integrates various protocols for switching and security, and supports Ethernet Ring Protection Switching (ERPS) for enhanced networking flexibility and reliability. This makes it ideal for deployment in rail transit, safe cities, intelligent transportation, outdoor monitoring, and other harsh environments.
Features
● Redundant power DC48-58V input with polarity reverse/over-voltage/current protection
● Support USB configuration and upgrading
● Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP,MSTP/Port Mirroring/
DHCP Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM/IPV6/Web/SNMP/Telnet/TFTP management
● Support 6KV surge protection and ESD Air-15kV, Contact-8kV Protection
Provider Mode Ports | |
Fixed Port | 8x10/100/1000M RJ45, 4x10G SFP+ |
Management Port | Support console, USB |
Power Interface | Phoenix terminal, dual power redundancy |
LED Indicators | PWR, Link/ACT LED |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m (CAT5e, CAT6) |
Single Mode Optical Fiber | 20/40/60/80/100KM |
Multimode Optical Fiber | 550m |
Network Topology | |
Ring Topology | Support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Hybrid Topology | Support |
Electrical Specifications | |
Input Voltage | DC18-58V(non-PoE), DC48-58V(PoE) |
Total Power Consumption | Full load <20W(non-PoE), Full load <260W(PoE) |
PoE Support | |
PoE Port | 1-8 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1, 2+, 3, 6- |
PoE Management | Support |
Layer 2 Switching | |
Switching Capacity | 160G |
Packet Forwarding Rate | 95.23Mpps |
MAC Address Table | 16K |
VLAN | Support 4K |
Buffer | 12M |
Forwarding Delay | <10us |
MDX/MIDX | Support |
Flow Control | Support |
Jumbo Frame | 10K bytes |
Spanning Tree | Support STP/RSTP/MSTP |
Ring Protocol | Support ERPS |
Link Aggregation | Support 12 groups |
Multicast | Support IGMP Snooping |
Port Mirroring | Support |
Storm Control | Support |
Interface Counters | Support |
QINQ | Support |
802.1X | Support |
Radius/MAC Authentication | Support |
Port Isolation | Support |
RMON | Support |
NTP Client | Support |
DHCP Client | Support |
DHCP Snooping | Support |
Ping/Tracert Detection | Support |
Dying Gasp | Support |
DDM | Support |
Port Security | Support |
IP Source Guard | Support |
Device Scanning | Support |
Layer 3 Function | |
Static Routing | Support 1K static routes |
ARP | ARP entry aging |
DHCP server | Support |
Convergence | |
ACL | Support ACL 500 |
Support IP standard ACL | |
Support MAC expand ACL | |
Support IP expand ACL | |
QoS | Support QoS re-marking, priority mapping |
Support SP, WRR queue scheduling | |
Support engress rate-limited, egress rate-limit | |
Support Policy-based QoS | |
Management | |
CLI | Support |
Console | Support |
Telnet/SSH | Support |
WEB Management | Support |
Management IP | Support IPv4/IPv6 |
SNMP | Support SNMPv1/v2c/v3 |
User Management | Support |
System Log | Support |
Configuration File Download/Upload | Support |
Upgrade Firmware | Support |
Environment | |
Operating Temperature | -40℃~+75℃ |
Storage Temperature | -40℃~+85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Thermal Methods | Fan-less, natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product Size | 161x115x53mm |
Installation Method | DIN-rail |
Weight | 0.9KG |
EMC & Ingress Protection | |
IP Level | IP40 |
Surge Protection of Power | IEC 61000-4-5 Level 4 (4KV/2KV) (8/20us) |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV/2KV) (10/700us) |
RS | IEC 61000-4-3 Level 3 (10V/m) |
EFI | IEC 61000-4-4 Level 3 (1V/2V) |
CS | IEC 61000-4-6 Level 3 (10V/m) |
PFMF | IEC 61000-4-8 Level 4 (30A/m) |
DIP | IEC 61000-4-11 Level 3 (10V) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free Fall | 0.5m |
Certification | |
Certificates | CE/FCC/RoHS |

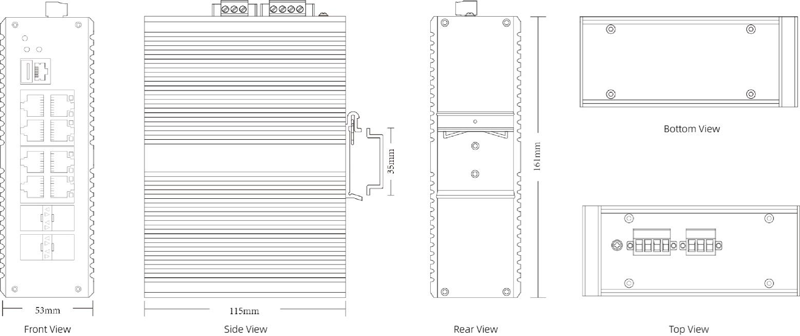

Dimension
Ordering Information | |
---|---|
LA-IS7M-10G0408-USB | Industrial Managed Din-Rail Ethernet Switch, 8 x 10/100/1000M RJ45 Port Uplink 4 x 10G Base-X SFP+ Port |
LA-IS7M-10G0408P-USB | Industrial Managed Din-Rail PoE Switch, 8 x 10/100/1000M RJ45 PoE Port Uplink 4 x 10G Base-X SFP+ Port |
Date | Version | Description | Download | ||
2025-03-10 | Datasheet_Industrial Managed Din-Rail PoE Switch GE 8RJ45, Uplink 10GE 4SFP+ with USB, LA-IS7M2R-10G0408P-U-Z V1.0 KZ |
