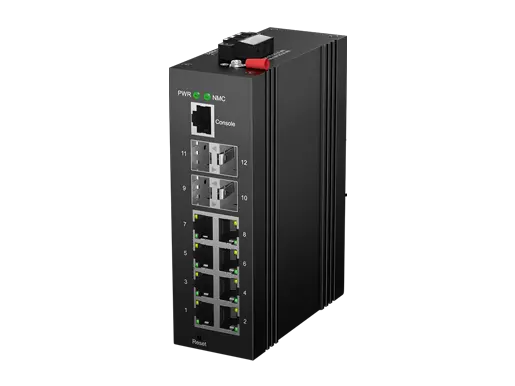

LA-IS7M2R-G0408P-CR-Z, 4-port Gigabit fiber and 8-port 10/100/1000Base-T managed industrial Ethernet switch, featuring a fanless cooling circuit design, wide operating temperature range, and high protection level, provides excellent industrial-grade quality such as high/low temperature resistance and lightning protection. It integrates a variety of rich protocols for switching and security, and supports Ethernet Ring Protection Switching (ERPS) technology, greatly enhancing network flexibility and improving the reliability and security of industrial networks. It is well-suited for deployment in harsh environments such as rail transit, safe city initiatives, intelligent transportation, outdoor surveillance, and other demanding applications.
Features
● Input voltage: DC12-58V(non-PoE); DC48-58V(PoE)
● Operating Temperature: -40℃ ~ +75℃
● Shell: IP40 protection, fanless design
● Test Report: RoHS, FCC, CE
● Anti-static: 8KV-15KV
● MTBF: 100,000 Hours
Fixed Port | 8x10/100/1000M RJ45, 4x1000M SFP |
Management Port | 1xRJ45 console port |
Power Interface | Phoenix terminal, dual power supply redundancy |
LED Indicators | PWR, Link/ACT LED |
Cable type & Transmission distance | |
Twisted-pair | 0-100m(CAT5e, CAT6) |
Monomode Optical Fiber | 20/40/60/80/100KM |
Multimode Optical Fibre | 550m |
Network Topology | |
Ring Topology | Support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Hybrid Topology | Support |
Electrical Specifications | |
input Voltage | Non PoE: DC12-58V PoE: DC48-58V |
Total Power Consumption | Non PoE<10W PoE<250W |
PoE Support | |
PoE Port | 1-8 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1, 2, 3, 6 |
PoE Management | Support |
Layer 2 Switching | |
Switching capacity | 56Gbps |
Packet Forwarding Rate | 17.85Mpps |
MAC Address Table | 8K |
Buffer | 4.1M |
Forwarding Delay | <10us |
MDI/MDIX | Support |
VLAN | 256 |
GVRP | Support |
Protocol VLAN | Support |
Voice VLAN | Support |
Surveillance VLAN | Support |
MAC VLAN | Support |
Ether Channel/ 802 .3ad | Support |
LACP | Support |
Interface Speed | Support |
Duplex Mode | Support |
Flow Control | Support |
Jumbo Frame | Support |
DHCP Client | Support |
SNTP Client | Support |
Port Statistics | Support |
Protected Ports | Support |
EEE | Support |
ERPS (Ethernet Ring Protection Switching) | Support |
LLDP | Support |
LLDP 802.1 TLV | Support |
MSTP / RSTP / STP | Support |
STP BPDU Filter | Support |
STP BPDU Guard | Support |
STP Port Fast | Support |
IGMP Snooping | Support |
MLD Snooping | Support |
MVR | Support |
DHCP | Support |
Device Scanning | Support |
Layer 3 Function | |
IPV4 | Support |
IPV6 | Support |
Static Routes IPv4 | Support 32 |
Static Routes IPv6 | Support 32 |
ARP | Support |
Loopback Interface | Support |
DHCP Server | Support |
DNS Server | Support |
Convergence | |
ACL | Supports MAC standard/extended ACL |
Supports IPv4 standard/extended ACL | |
Supports IPv6 standard/extended ACL | |
QOS | Supports QoS remarking |
Supports port trust | |
Supports port rate limiting | |
Supports egress queue rate limiting | |
Supports SP and WRR scheduling algorithms | |
Supports CoS mapping, DSCP mapping, and IP priority mapping | |
Management | |
User Management | Support |
System Log | Support |
Upgrade Firmware | Support |
Configuration File Download/Upload | Support SNMP V1/V2/V3 |
SNMP | Support |
WEB | Support |
CLI | Support |
Telnet/SSH | Support |
RMON | Support |
Security | |
Management Channel Configuration | Support |
AAA Authentication | Support |
802.1X Authentication | Support |
MAC-based Authentication | Support |
Web-Based authentication | Support |
DoS (Denial of Service) Attack Prevention | Support |
Dynamic ARP Inspection | Support |
DHCP Snooping | Support |
IP Source Guard | Support |
Port Security | Support |
Protected Ports | Support |
Storm Control | Support |
Equipment diagnosis | |
RAM | Support |
Flash | Support |
Port Mirroring | Support |
Ping | Support |
Trace Route | Support |
Port Testing | Support |
Optical Module DDM Information | Support |
UDLD Protocol | Support |
Mechanical Dimensions | |
Product Size | 48X104X143mm |
Installation Method | Din-rail |
Weight | 0.58KG |
Environment | |
Operating Temperature | -40℃~+75℃ |
Storage Temperature | -40℃~+85℃ |
Relative Humidity | 5%~95% non-condensing) |
Thermal Methods | Fanless design, natural cooling |
MTBF | 100, 000 hours |
EMC & INGRESS PROTECTION | |
Surge Protection of Power | Common mode 4KV, differential mode 2KV |
Surge Protection of Ethernet port | Common mode 4KV, differential mode 2KV |
ESD | Contact 8K, air 15K |
Free Fall | 0.5m |
Certification | |
Certificates | CE/FCC/RoHS |

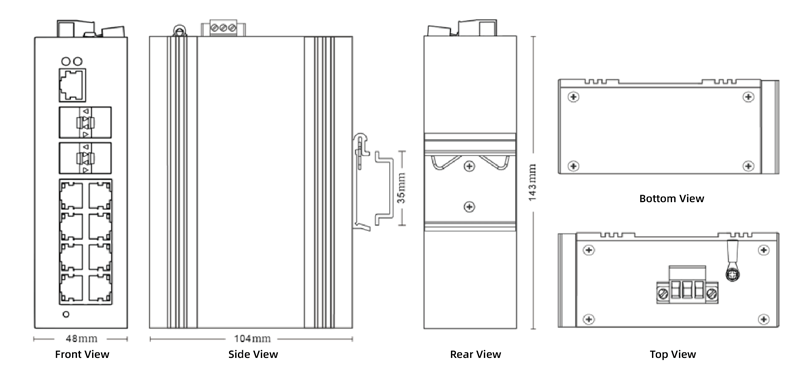

Dimension
Date | Version | Description | Download | ||
2025-03-10 | Industrial Layer 2+ Managed PoE Switch 8x10/100/1000M RJ45, 4x1000M SFP |
