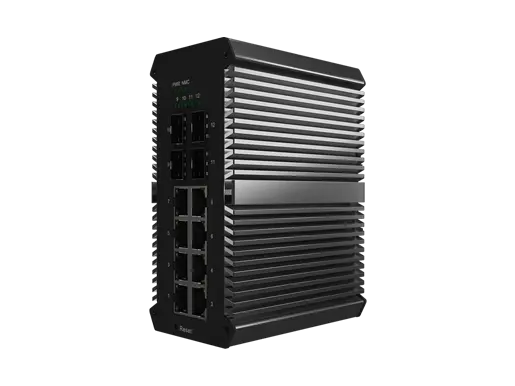

LA-IS7M2RLB-G0408(P)-Z is a managed industrial Ethernet fast switch featuring 4 Gigabit SFP ports and 8x 10/100/1000Base-T ports. With a fan-less heat dissipation design, a wide operating temperature range, and a high protection grade, it ensures industrial-grade durability, including resistance to extreme temperatures and lightning. It integrates a variety of switching and security protocols and supports Ethernet Ring Protection Switching (ERPS), significantly enhancing network flexibility, reliability, and security. This makes it ideal for deployment in rail transit, safe city projects, intelligent transportation, outdoor surveillance, and other harsh environments.
Features
● Input voltage: DC12-58V
● Operating temperature: -40℃ ~ +85℃
● Casing: IP50 protection level, fan-less design
● Inspection report: CE/FCC/RoHS
● Anti-static: 8KV-15KV
Provided Ports | |
Fixed Port | 8*1000Base-X, 8*10/100/1000 Base-T |
Management Port | Support console |
Power Interface | Phoenix terminal, redundant dual power supply |
LED Indicators | PWR, Link/ACT LED |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m (CAT5e, CAT6) |
Mono Mode Optical Fiber | 20/40/60/80/100KM |
Multi-mode Optical Fiber | 550m |
Network Topology | |
Ring Topology | Support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Hybrid Topology | Support |
Electrical Specifications | |
Input Voltage | DC12-58V(non-PoE)/ DC48-58V(PoE) |
Total Power Consumption | <10W(non-PoE), <250W(PoE) |
PoE/PoE+ | |
PoE Port | 1-8 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1, 2+, 3, 6- |
PoE Management | Support |
PoE++ Optional | |
PoE Port | 1-2 |
PoE Protocol | 802.3bt (PoE++ BT 90W) |
Pin Assignment | 1, 2, 4, 5+, 3, 6, 7, 8- |
PoE Management | Support |
Layer 2 Switching | |
Switching Capacity | 36G |
Packet Forwarding Rate | 26.78Mpps |
MAC Address Table | 16K |
VLAN | Support 4K |
Buffer | 12M |
Forwarding Delay | <10us |
MDX/MIDX | Support |
Flow Control | Support |
Jumbo Frame | Support 10Kbytes |
Spanning Tree | Support STP/RSTP/MSTP |
Ring Protocol | Support ERPS |
Link Aggregation | Support 12 group |
Multicast | Support IGMP Snooping |
Port Mirroring | Support SPAN/RSPAN |
Port Backlog Detection | Support |
Storm Control | Support |
Interface Counters | Support |
QINQ | Support |
802.1X | Support |
MAC Authentication | Support |
Port Isolation | Support |
Ramon | Support |
NTP Client | Support |
DHCP Client | Support |
DHCP Snooping | Support |
PING/Tracert Detection | Support |
Dying Gasp | Support |
DDM | Support |
Port Security | Support |
IP Source Guard | Support |
Device Scanning | Support |
Layer 3 Route | |
IPv4 /IPv6 Static Routing | Support 256 static routes. |
ARP | ARP Table Entry Aging |
DHCP server | Support |
Convergence | |
ACL | Support ACL 240 |
Support IP standard ACL/ACLv6 | |
Support MAC expand ACL/ACLv6 | |
Support IP expand ACL/ACLv6 | |
QOS | Support QoS re-marking, priority mapping |
Support SP, WRR queue scheduling | |
Support egress rate-limited, egress rate-limit | |
Support Policy-based QoS | |
D dos Attack | Support |
Management | |
CLI | Support |
Console | Support |
Telnet | Support |
WEB Management | Support |
Management IP | Support IPV4/IPV6 |
SNMP | Support SNMPv1/v2c/v3 |
User Management | Support |
System Log | Support |
Configuration File Download/Upload | Support |
Upgrade Firmware | Support |
Environment | |
Operating Temperature | -40℃~+85℃ |
Storage Temperature | -40℃~+85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Thermal Methods | Fan-less design |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product Size | 143x104x65mm |
Installation Method | DIN-rail |
Weight | 0.85KG |
EMC & Ingress protection | |
IP Level | IP50 |
Surge Protection of Power | IEC 61000-4-5 Level X(10KV/10KV) (8/20us) |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level X(6KV/4KV) (10/700us) |
RS | IEC 61000-4-3 Level 3(10V/m) |
EFI | IEC 61000-4-4 Level 3(1V/2V) |
CS | IEC 61000-4-6 Level 3(10V/m) |
PFMF | IEC 61000-4-8 Level 4(30A/m) |
DIP | IEC 61000-4-11 Level 3(10V) |
ESD | IEC 61000-4-2 Level 4(8K/15K) |
Free Fall | 0.5m |
Certification | |
Certificates | CE/FCC/RoHS |

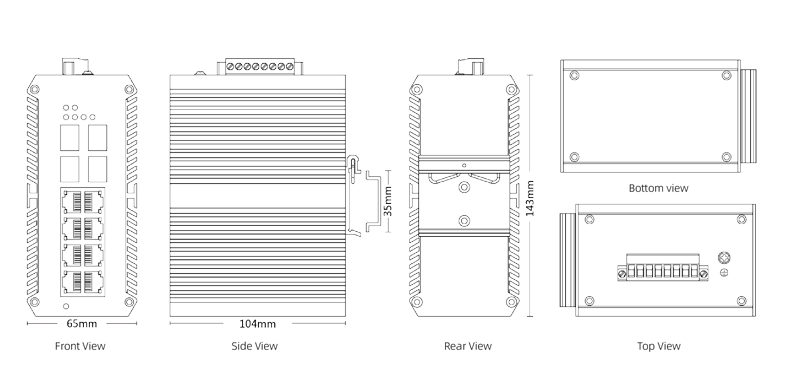

Dimension
Date | Version | Description | Download | ||
2025-03-10 | Industrial L2+ Managed Switch 4x1000M SFP, 8x10/100/1000M RJ45 |
