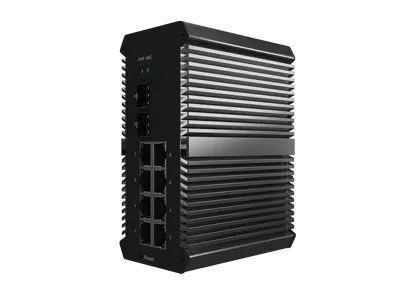

Industrial L2+ Managed Switch 2x1000M SFP, 8x10/100/1000M RJ45

LA-IS8M2RLB-G0208(P)-Z
LA-IS8M2RLB-G0208(P)-Z is a managed industrial Ethernet fast switch featuring 2 Gigabit SFP ports and 8x 10/100/1000Base-T ports. Designed with a fan-less heat dissipation circuit, wide operating temp...
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-IS8M2RLB-G0208(P)-Z is a managed industrial Ethernet fast switch featuring 2 Gigabit SFP ports and 8x 10/100/1000Base-T ports. Designed with a fan-less heat dissipation circuit, wide operating temperature range, and high protection grade, it delivers excellent industrial-grade performance, including resistance to extreme temperatures and lightning. Supporting rich switching and security protocols along with Ethernet Ring Protection Switching (ERPS), it enhances network flexibility, reliability, and security. Ideal for applications in rail transit, safe city projects, intelligent transportation, outdoor surveillance, and other demanding environments.


Features

● Input voltage: DC12-58V

● Operating temperature: -40℃ ~ +85℃

● Casing: IP50 protection level, fan-less design

● Inspection report: CE/FCC/RoHS

● Anti-static: 8KV-15KV

● MTBF: 100000 hours

Provided Ports
Fixed Port2*1000Base-X, 8*10/100/1000Base-T
Management PortSupport console
Power InterfacePhoenix terminal, redundant dual power supply
LED IndicatorsPWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair0-100m (CAT5e, CAT6)
Mono Mode Optical Fiber20/40/60/80/100KM
Multi-mode Optical Fiber550m
Network Topology
Ring TopologySupport
Star TopologySupport
Bus TopologySupport
Tree TopologySupport
Hybrid TopologySupport
Electrical Specifications
Input VoltageDC12-58V(non-PoE)/ DC48-58V(PoE)
Total Power Consumption<10W(non-PoE), <250W(PoE)
PoE/PoE+
PoE Port1-8
PoE Protocol802.3af, 802.3at
Pin Assignment1, 2+, 3, 6-
PoE ManagementSupport
PoE++ Optional
PoE Port1-2
PoE Protocol802.3bt (PoE++ BT 90W)
Pin Assignment1, 2, 4, 5+, 3, 6, 7, 8-
PoE ManagementSupport
Layer 2 Switching
Switching Capacity36G
Packet Forwarding Rate26.78Mpps
MAC Address Table16K
VLANSupport 4K
Buffer12M
Forwarding Delay<10us
MDX/MIDXSupport
Flow ControlSupport
Jumbo FrameSupport 10Kbytes
Spanning TreeSupport STP/RSTP/MSTP
Ring ProtocolSupport ERPS
Link AggregationSupport 64 group
MulticastSupport IGMP Snooping
Port MirroringSupport
Storm ControlSupport
Interface CountersSupport
QINQSupport
802.1XSupport
MAC AuthenticationSupport
Port IsolationSupport
LLDPSupport
RamonSupport
NTP ClientSupport
DHCP ClientSupport
DHCP SnoopingSupport
PING/Tracert DetectionSupport
Dying gaspSupport
DDMSupport
Port SecuritySupport
IP Source GuardSupport
Device ScanningSupport
Layer 3 Route
IPv4 /IPv6 Static RoutingSupport 256 static routes.
ARPARP Table Entry Aging
DHCP serverSupport
Convergence
ACLSupport ACL 240
Support IP standard ACL/ACLv6
Support MAC expand ACL/ACLv6
Support IP expand ACL/ACLv6
QOSSupport QoS re-marking, priority mapping
Support SP, WRR queue scheduling
Support egress rate-limited, egress rate-limit
Support Policy-based QoS
D dos AttackSupport
Management
CLISupport
ConsoleSupport
TelnetSupport
WEB ManagementSupport
Management IPSupport IPV4/IPV6
SNMPSupport SNMPv1/v2c/v3
User ManagementSupport
System LogSupport
Configuration File Download/UploadSupport
Upgrade FirmwareSupport
Environment
Operating Temperature-40℃~+85℃
Storage Temperature-40℃~+85℃
Relative Humidity5%~95% (non-condensing)
Thermal MethodsFan-less design
MTBF100,000 hours
Mechanical Dimensions
Product Size143x104x65mm
Installation MethodDIN-rail
Weight0.85KG
EMC & Ingress protection
IP LevelIP50
Surge Protection of PowerIEC 61000-4-5 Level X(10KV/10KV) (8/20us)
Surge Protection of Ethernet PortIEC 61000-4-5 Level X(6KV/4KV) (10/700us)
RSIEC 61000-4-3 Level 3(10V/m)
EFIIEC 61000-4-4 Level 3(1V/2V)
CSIEC 61000-4-6 Level 3(10V/m)
PFMFIEC 61000-4-8 Level 4(30A/m)
DIPIEC 61000-4-11 Level 3(10V)
ESDIEC 61000-4-2 Level 4(8K/15K)
Free Fall0.5m
Certification
CertificatesCE/FCC/RoHS

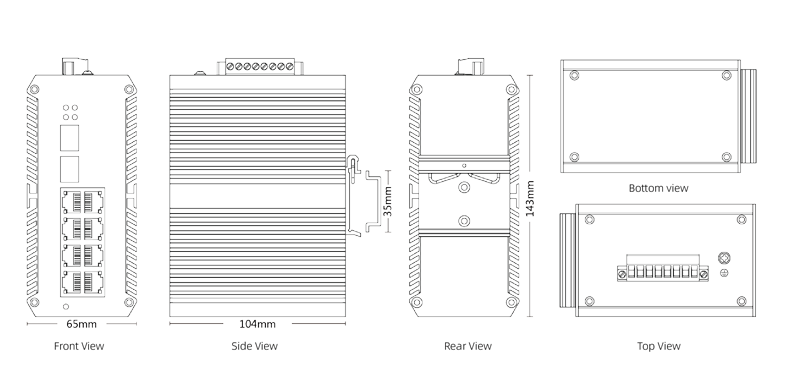

Dimension

Dimension of Industrial L2+ Managed Switch 2x1000M SFP, 8x10/100/1000M RJ45

Date Version Description Download
2025-03-10 Industrial L2+ Managed Switch 2x1000M SFP, 8x10/100/1000M RJ45
