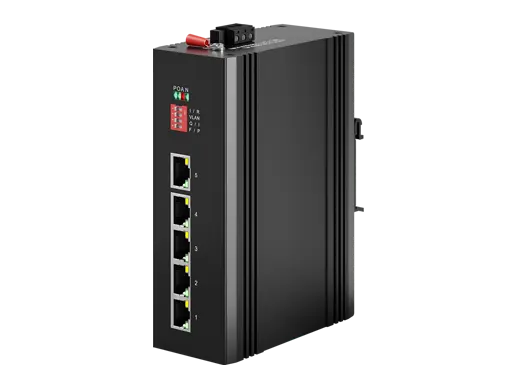

LA-IS6N-G0005 is 5x10/100/1000Base-T unmanaged industrial ethernet switches. Through fan-less cooling circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent performance such as high/low temperature resistance and lightning protection. Industrial-grade quality; greatly improves networking flexibility and enhances the reliability and security of industrial networks. It can better meet the deployment requirements in rail transit, safe cities, intelligent transportation, outdoor monitoring and other harsh environments.
Features
● Input voltage: DC12-58V(non-PoE), DC48-58V(PoE)
● Operating temperature: -40℃ ~ +75℃
● Casing: IP40 protection level, fan-less design
● Anti-static: 8KV-15KV
● MTBF: 100,000hours
Provider Mode Ports | |
Fixed Port | 5x10/100/1000M RJ45 |
Power Interface | Phoenix Terminal, Dual Power Supply Redundancy |
LED Indicators | PWR, OPT, NMC, ALM |
Dialing Instructions (non-PoE) | |
1 I/R | Port Isolation |
2 VLAN | VLAN Isolation |
3 Q/I | QoS |
4 F/P | VIP power supply and QoS |
Dialing Instructions (PoE) | |
1 I/R | PoE Watchdog |
2 VLAN | VLAN Isolation |
3 Q/I | Port Isolation |
4 F/P | VIP Power Supply and QoS |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m (CAT5e, CAT6) |
Network Topology | |
Ring Topology | Not Support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Electrical Specifications | |
Input Voltage | DC12-58V(non-PoE), DC48-58V(PoE) |
Total Power Consumption | <6W(non-PoE), <126W(PoE) |
PoE Support | |
PoE Ports | 1-4 |
Pin Assignment | 1, 2, 3, 6 |
PoE Standard | 802.3af, 802.3at |
Layer 2 Switching | |
Switching Capacity | 10G |
Packet Forwarding Rate | 7.44Mbps |
MAC Address Table | 8K |
Buffer | 1M |
Forwarding Delay | <5us |
MDX/MIDX | Support |
Flow Control | Support |
Jumbo Frame | Support 10Kbytes |
PoE Watchdog | Support |
Port Isolation | Support |
Environment | |
Operating Temperature | -40℃~+75℃ |
Storage Temperature | -40℃~+85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Thermal Methods | Fan-less design, Natural Cooling |
MTBF | 100,000hours |
Mechanical Dimensions | |
Product Size | 48x104x143mm |
Installation Method | DIN-rail |
Weight | 0.45KG |
EMC & Ingress protection | |
IP Level | IP40 |
Surge Protection of Power | IEC 61000-4-5 Level X(6KV/6KV) (8/20us) |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4(4KV/4KV) (10/700us) |
RS | IEC 61000-4-3 Level 3(10V/m) |
EFI | IEC 61000-4-4 Level 3(1V/2V) |
CS | IEC 61000-4-6 Level 3(10V/m) |
PFMF | IEC 61000-4-8 Level 4(30A/m) |
DIP | IEC 61000-4-11 Level 3(10V) |
ESD | IEC 61000-4-2 Level 4(8K/15K) |
Free Fall | 0.5m |
Certification | |
Certificates | CE, FCC, RoHS |
Dimension
Ordering Information | |
---|---|
LA-IS6N-G0005P | Din-rail Industrial Unmanaged Ethernet Switch 5x10/100/1000M PoE |
LA-IS6N-G0005 | Din-rail Industrial Unmanaged Ethernet Switch 5x10/100/1000M RJ45 |
