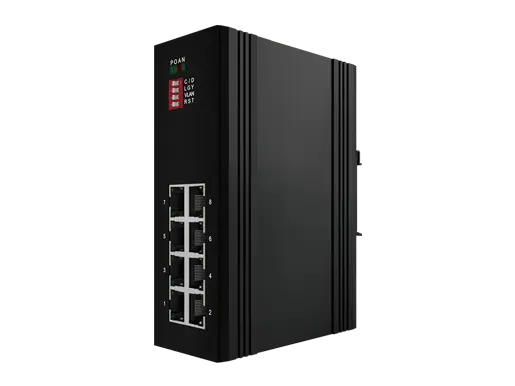

LA-IS6N-F0008P-DZ is a 8-port 10/100Base-TX unmanaged industrial Ethernet switch with POE support. Designed with fan-less heat dissipation, a wide operating temperature range, and a high protection rating, it offers exceptional industrial-grade features like high/low temperature resistance and lightning protection. These attributes enhance the reliability and security of industrial networks, making it ideal for deployment in challenging environments such as rail transit, safe cities, intelligent transportation, and outdoor monitoring.
Features
● Input Voltage: DC24-36V (PoE)
● Operating Temperature: -30℃ ~ +70℃
● Shell: IP40 protection, fan-less design
● Test Report: CE, RoHS, FCC
● Anti-static: 8KV-15KV
● MTBF: 100000 Hours
Provider Mode Ports | |
Fixed Port | 8x10/100Base-Tx |
Power Interface | Phoenix terminal, dual power supply redundant |
Led Indicators | PWR, OPT, NMC, ALM |
Cable Type & Transmission Distance | |
Twisted-Pair | 0-100m (CAT5e, CAT6) |
Network Topology | |
Ring Topology | Not support |
Star Topology | Support |
Bus Topology | Support |
Tree Topology | Support |
Electrical Specifications | |
Input Voltage | DC24-36V(PoE) |
Total Power Consumption | Full Load<90w(PoE) |
PoE Support | |
PoE Port | 1-8 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1, 2+/3, 6- |
Layer 2 Switching | |
Switching Capacity | 1.8G |
Packet Forwarding Rate | 1.33Mpps |
MAC Address Table | 2K |
Buffer | 512K |
Forwarding Delay | <4us |
MDX/MIDX | Support |
Flow control | Support |
Jumbo Frame | Support 2048 bytes |
Watchdog | Support |
Environment | |
Operating Temperature | -30℃~+70℃ |
Storage Temperature | -40℃~+85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Thermal Methods | Fan-less, natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product Size (W×H×D) | 48x104x143mm |
Installation Method | Din-rail |
Weight | 0.45KG |
EMC & Ingress Protection | |
IP Level | IP40 |
Surge Protection of Power | IEC 61000-4-5 Level X (4KV/2KV)(8/20us) |
Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4(4KV/2KV)(10/700us) |
RS | IEC 61000-4-3 Level 3(10V/m) |
EFI | IEC 61000-4-4 Level 3(1V/2V) |
CS | IEC 61000-4-6 Level 3(10V/m) |
PFMF | IEC 61000-4-8 Level 4(30A/m) |
DIP | IEC 61000-4-11 Level 3 (10V) |
ESD | IEC 61000-4-2 Level 4(8K/15K) |
Free Fall | 0.5m |
Certificate | |
Certificates | CE/FCC/RoHS |

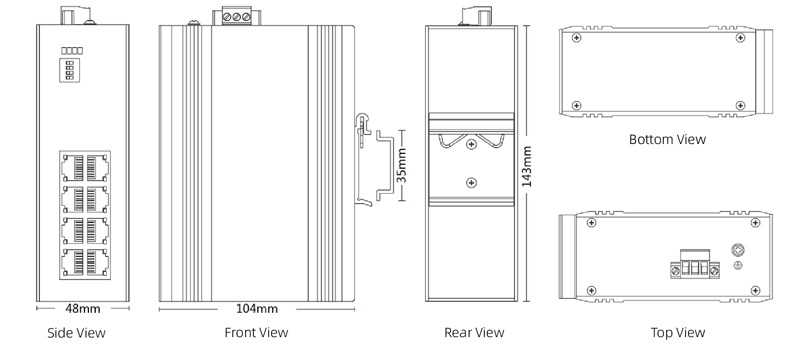

Dimension
Date | Version | Description | Download | ||
2025-03-11 | Industrial Din-rail Unmamaged Booster PoE Switch 8x10/100Base-T |
