LA-GPON-ONU-34-20B-I
LA-GPON-ONU-34-20B-I GPON Stick ONU with Small Form-factor Pluggable (SFP) packaging, which integrates a bi-directional optical transceiver function and GPON MAC function.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-GPON-ONU-34-20B-I GPON Stick ONU with Small Form-factor Pluggable (SFP) packaging, which integrates a bi-directional optical transceiver function and GPON MAC function. By being plugged into the customer premise equipment (CPE) with standard SFP port directly, provides an asymmetric 1.244Gbps upstream /2.488 Gbps downstream GPON uplink to the CPE without requiring separate power supply, supports a sophisticated ONT management system, including alarms, provisioning, DHCP and IGMP functions for a stand- alone IPTV solution at the ONT.

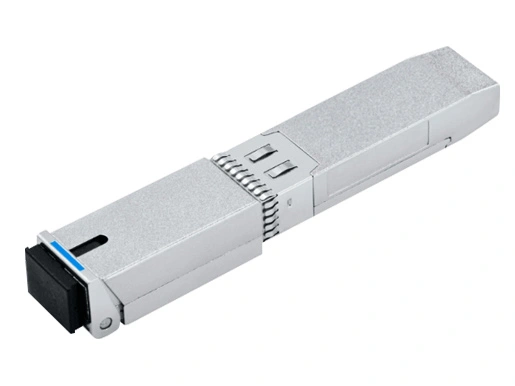

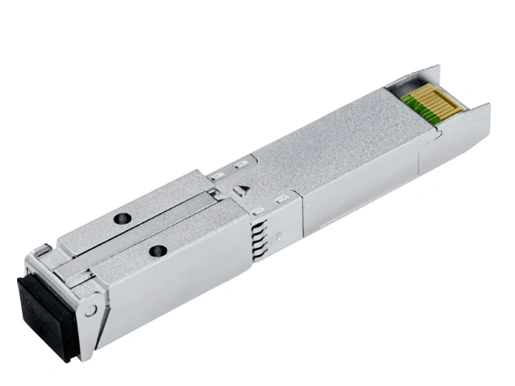

LA-GPON-ONU-34-20B-I fits seamlessly into existing communications equipment, providing service providers with a smooth upgrade to GPON, vastly decreases the installation costs of deploying fiber access in MDUs.

Features
● SFP MSA compliant
● PON Link status notification
● SC APC Simplex connector
● Compliant to FSAN G.984.2 Specifications
● Dying Gasp notification support
● Class B+
● digital diagnostics SFF-8472 Compliant
● Up to 20km transmission
● Operating case temperature: -40°C to +85°C
● Subscriber location identifier (SLID)
● 28 dB link budget

Regulatory Compliance

Feature

Standard

Performance

Electrostatic Disge (ESD) to the Electrical Pins

MIL-STD-883E Method 3015.7

Class 1 (>500V for data pins, >2000V for other pins)

Electrostatic Disge (ESD) to the

Duplex LC Receptacle IEC 61000-4-2

IEC 61000-4-2

Compatible with standards

Electromagnetic Interference (EMI)

FCC Part 15 Class B

EN55022 Class B (CISPR 22B)

Compatible with standards

Immunity

IEC 61000-4-3

Compatible with standards

Laser Eye Safety

FDA 21CFR 1040.10 and 1040.11

EN60950, EN (IEC) 60825-1, 2

Compatible with Class I laser product

RoHS

2011/65/EC

Compliant with standards


Absolute Maximum Ratings

It has to be noted that the operation in of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Typ.

Max

Unit

Notes

Operating Voltage

Vcc

3.14

3.3

3.6

V


Storage Temperature

Ts

-40


85


Operating Relative Humidity

RH

15


85

%

1


Notes:

1. Non-condensing


Recommended Operating Environment

Electrical and optical acteristics below are defined under this operating environment, un- less otherwise specified

Parameter

Symbol

Min

Typ.

Max

Unit

Notes

Operating Case

Temperature

Top

-40


85


Total Tx and Rx

Supply Current

ICC


600


mA


Power Dissipation

PD


2



W


Bit Rate (Tx)

BR


1244.16




Bit Rate (Rx)

BR


2488.32




Transmission Distance

TD



20

km


Module Initialize time

T_Initial



70

S

1

Two-wire serial

interface Clock rate

f_serial_clock



80

Khz



Notes:

1. Suggest do not access I2C until module initialization is complete


Electrical Characteristics

Parameter

Symbol

Min

Typ.

Max

Unit

Notes

Transmitter

Differential Data

Input Voltage

VIN, P-P

100


1000

mVpp

1

Input Differential

Impedance

ZIN


100


Ω

2

Receiver

Differential Output

Voltage


370


1000

mV

3

Signal Detect Output

HIGH Voltage

VSD_High

2.4



V

4

Signal Detect Output

LOW Voltage

VSD_Low

0


0.8

V

5

Data Output Rise

and Fall Time

TR/TF


160


PS



Notes:

1. TXD+/-. AC-coupled.

2. TXD+/-.

3. CML output, AC coupled(0.1mF)

4. LVTTL with internal 1kW pull up resistor. Asserts HIGH when input data amplitude is above threshold.

5. LVTTL. De-asserts LOW when input data amplitude is below threshold.


Optical Characteristics

Parameter

Symbol

Min

Typ.

Max

Unit

Notes

Transmitter

Center Wavelength

Range

λC

1290

1310

1330

mm

1

Average Output

Power

P0UT

0.5


5

dBm


Average Output

Power (Laser Off)

P0UT-OFF



-40

dBm


Side Mode

Suppression Ratio

SMSR

30



dB


Spectral Width (-20dB)

λ20



1

nm


Extinction Ratio

ER

10



dB

1

Optical Rise and

Fall Time (20%-80%)

TR/TF



250

ps


Jitter Generation

JG



250

ps


Transmitter Output E

Compliant with G.984.2 Figure 3

Receiver

Center Wavelength

Range

λC

1480

1490

1500

mm


Overload


-8



dBm


Sensitivity

(BOL Room Temp)

Sen

-28



dBm

3

Signal Detect

Assertion Level

SDA



-29

dBm


Signal Detect

De-Assertion Level

SDD

-45



dBm


Hysteresis

PSDA-SDD

0.5


6

dB


1310nm Tx to

1490nm Rx Crosstalk




-47

dB


1555nm Rx to

1490nm Isolation


30



dB


(1550-1560nm)

Ext to 1490 Rx Isolation


34



dB


Back Reflection @ 1310nm




-12

dB


Back Reflection @ 1490nm




-27

dB


Rx Reflectance




-20

dB


1530nm to

1490nm Rx Isolation


7



dB


1539nm to

1490nm Rx Isolation


22



dB


1625nm to

1490nm Rx Isolation


22



dB


1310nm Tx to

1490nm Rx Crosstalk


-

-

-47

dB


1555nm Rx to

1490nm Isolation


30

-

-

dB



Notes:

1.Measured by Ethernet package with random payload.

2. 4kHz to 10MHz

3. Measured with Ethernet package with random payload and ER=8.2dB, BER =10-10.

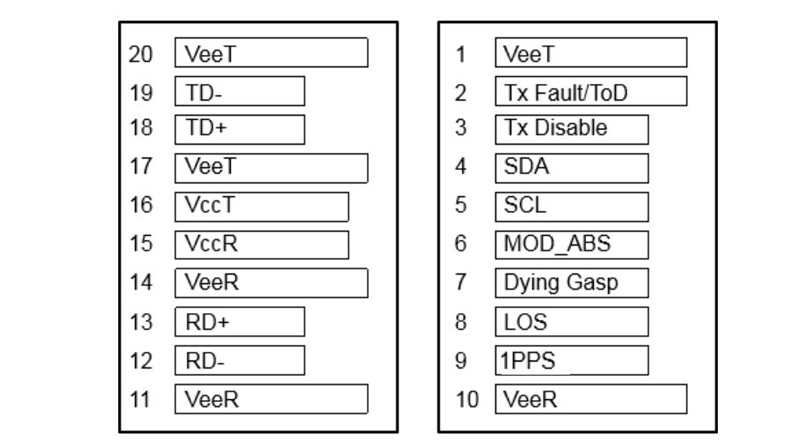

Pin Definitions

Pin Definitions of GPON ONU Stick with MAC SFP 1310nm-TX/1490nm-RX 1.244G-TX/2.488G-RX Class B+ 20km DOM Simplex SC/APC


Pin

Symbol

Logic

Description

Notes

1

VeeT

NA

Module Transmitter Ground

3.6

2

Tx Fault/ToD

LVTTL-OT

Tx Fault/Time of Day

85

3

TX_DISABLE

LVTTL-I

Transmitter Shut-off

6

4

SDA

LVTTL-I/O

2-Wire Serial Interface Data Line (MOD-DEF2)

2, 7

5

SCL

LVTTL-I

2-Wire Serial Interface Clock (MOD-DEF1)

2, 7

6

MOD_ABS

NA

Module Absent, connected to VeeT or VeeR in the module


7

DYING GASP

Analog Input

Dying Gasp message indicator, active low

this pin has been directly connected to MAC IC in the module

3, 4, 5, 7

8

LOS

LVTTL-O

Loss of Signal


9

1PPS

LVTTL-O

1 Pulse per second


10

VeeR

NA

Module Receiver Ground


11

VeeR

NA

Module Receiver Ground


12

RXD-

CML-O

Receiver Inverted Data Output


13

RXD+

CML-O

Receiver Non-Inverted Data Output


14

VeeR

NA

Module Receiver Ground


15

VCCR

NA

Module Receiver 3.3V Supply


16

VCCT

NA

Module Transmitter 3.3V Suppl


17

VeeT

NA

Module Transmitter Ground


18

TXD+

CML-

Transmitter Non-Inverted Data Input, CML, 100ohm

differential impedance


19

TXD-

CML-I

Transmitter Inverted Data Input, CML, 100ohm differential

impedance


20

VeeT

NA

Module Transmitter Ground



Notes:

1. Default Factory Mode is Tx Fault. For Small Celll type of applications, during Activation/ provisioning, it will be software configured to ToD.

2. This PIN is an open collector/drain output pin and shall be pulled up with 4.7K-10K ohms to a Host_Vcc on the host board.

3. IN7 can support Dying Gasp function. Dying Gasp function is managed by software. If software disables the dying gasp function, ignore the PIN7 input voltage. If software enables the function, PIN7 input voltage below Dying Gasp Assert Voltage threshold, the module will report dying gasp PLOAM to OLT.

4. Dying Gasp Voltage threshold 1.5V ( typical), once software enable Dying gasp, meanwhile the pin7 input is below this threshold, it will trigger dying gasp function, transceiver will reset.

5. Host device shall maintain power to ONU module for at least 10ms during power supply drop.

6. ONU re-online process includes downlink & uplink synonization, authentication and configuration release, etc., it normally takes >=5 seconds

7. Transceiver full power on need 80s. Any I2C visiting.etc need to operate after this power on period.


EPROM Information

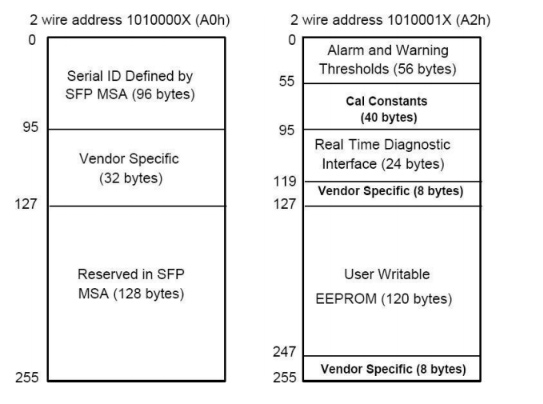

EEPROM Diagram

EPROM Information of GPON ONU Stick with MAC SFP 1310nm-TX/1490nm-RX 1.244G-TX/2.488G-RX Class B+ 20km DOM Simplex SC/APC


EEPROM Memory Content (A0h)

Addr.

Field Size (Bytes)

Name of Field

Hex

Description

0

1

Identifier

03

SFP transceiver

1

1

Ext. Identifier

04

MOD4

2

1

Connector

01

SC

3-10

8

Transceiver

00 00 00 00 00 00 00 00

2, 7

11

1

Encoding

03

NRZ

12

1

BR, Nominal

0C

1.244Gbps

13

1

Reserved

00

3, 4, 5, 7

14

1

Length (9um)-km

14

20(km)

15

1

Length (9um)

C8

200(100m)

16

1

Length (50um)

00

Not Support MMF

17

1

Length (62.5um)

00

Not Support MMF

18

1

Length (Copper)

00

Not Support Copper

19

1

Reserved

00


20-35

16

Vendor name

53 4F 55 52 43 45 50 48

4F 54 4F 4E 49 43 53 20

“FS “(ASCII)

36

1

Reserved

00


37-39

3

Vendor OUI

00 00 00


40-55

16

Vendor PN

53 50 53 33 34 32 34 54

48 50 54/45 44 46 50 20 20

“GPON-ONU-34-20BI”(ASCII)

56-59

4

Vendor Rev

xx xx 20 20

ASCII(“30 31 20 20” means 1.0 Revision)

60-61

2

Wavelength

05 1E

Tx wavelength: 1310nm

62

1

Reserved

00


63

1

CC_BASE

xx

Check sum of byte 0-62


64-65

2

Options

00 1A

64 = 0x00, reserved

65 = 0x1A, TX_DISABLE/

TX_FAULT/RX_LOS supported

66

1

BR, max

00


67

1

BR, max

00


68-83

16

Vendor SN

xx xx xx xx xx xx xx xx

xx xx xx xx xx xx xx xx

ASCII

84-91

8

Date code

xx xx xx xx xx xx 20 20

Year(2 bytes),Month(2 bytes), Day(2

bytes)

92

1

Diagnostic Monitoring Type

68

Compliant with SFF-8472 V10.3

Internally Calibrated

Received power measurement type

-Average Power

93

1

93

F0

Diagnostics

(Optional Alarm/warning flags)

Soft TX_FAULT monitoring

implemented.

Soft RX_LOS monitoring

implemented

94

1

SFF-8472 Compliance

05

Indicates the revision of SFF-8472 with which the transceiver complies. Value depends on module features.

95

1

CC_EXT

xx

Check sum of byte 64-94

96-255

64

Vendor Specific




EEPROM Memory Content (A2h)

Addr.

Field Size

(Bytes)

Name of Field

Hex

Description

0

00

2

Temp High Alarm

5F 00

95℃

2

02

2

Temp Low Alarm

CE 00

-50℃

4

04

2

Temp High Warning

5A 00

90℃

6

06

2

Temp Low Warning

D3 00

FB 00

-45℃

8

08

2

Voltage High Alarm

8C A0

3.6V

10

0A

2

Voltage Low Alarm

75 30

3.0V

12

0C

2

Voltage High Warning

88 B8

3.5V

14

0E

2

Voltage Low 3.6VWarning

79 18

3.1V

16

10

2

Bias High Alarm

AF C8

90mA

18

12

2

Bias Low Alarm

00 00

0mA

20

14

2

Bias High Warning

88 B8

70mA

22

16

2

Bias Low Warning

00 00

0mA

24

18

2

TX Power High Alarm

F6 77

8dBm

26

1A

2

TX Power Low Alarm

15 F7

-2.5dBm

28

1C

2

TX Power High Warning

C3 C6

7dBm

30

1E

2

TX Power Low Warning

1B A7

-1.5dBm

34

22

2

RX Power Low Alarm

00 08

-31dBm

36

24

2

RX Power High Warning

09 CF

-6dBm

38

26

2

RX Power Low Warning

00 0A

-30dBm

40-45

8-2D

6

MAC address

xx xx xx xx xx xx

MAC Address

46-55

2E-37

10

Reserved

00….000

Reserved

56

38

4

RX_PWR(4) Calibration

00 00 00 00

4th order RSSI calibration

coefficient

60

3C

4

RX_PWR(3) Calibration

00 00 00 00

3rd order RSSI calibration

coefficient

64

40

4

RX_PWR(2) Calibration

00 00 00 00

2nd order RSSI calibration

coefficient

68

44

4

RX_PWR(1) Calibration

3F 80 00 00

1st order RSSI calibrationcoefficient

72

48

4

RX_PWR(0) Calibration

00 00 00 00

0th order RSSI calibrationcoefficient

76

4C

2

TX_I(Slope) Calibration

01 00

Slope for Bias calibration

78

4E

2

TX_I(Offset) Calibration

00 00

Offset for Bias calibration

80

50

2

TX_PWR(Slope) Calibration

01 00

Slope for TX Power calibration

82

52

2

TX_PWR(Offset) Calibration

00 00

Offset for TX Power calibration

84

54

2

T(Slope) Calibration

01 00

Slope for Temperaturecalibration

86

56

2

T(Offset) Calibration

00 00

Offset for Temperaturecalibration, in

units of 256ths C

88

58

2

V(Slope) Calibration

01 00

Slope for VCC calibration

90

5C

3

Reserved

00 00 00

Reserved

95

5F

1

Checksum

xx

Checksum


Digital Diagnostic Specification (A2h)

Data Address

Parameter

Range

Accuracy

96-97

Temperature

-40 to 85/0~85°C

±5°C

98-99

Vcc Voltage

0 to Vcc

±5%

100-101

Bias Current

0 to 100mA(Note)

±10%

102-103

TX Power

0.5 to 5dBm

±3dB

104-105

RX Power

-28 to -8dBm

±3dB

Note: Only for continuous mode


Diagram Mechanical Drawing

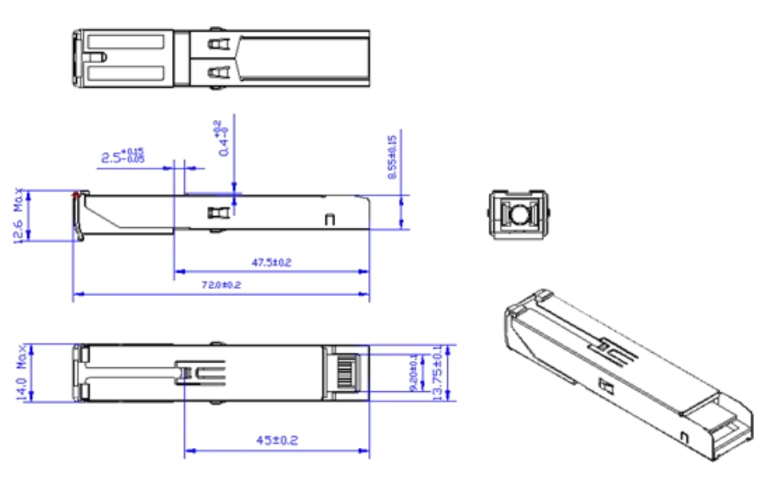

Diagram Mechanical Drawing of GPON ONU Stick with MAC SFP 1310nm-TX/1490nm-RX 1.244G-TX/2.488G-RX Class B+ 20km DOM Simplex SC/APC


Recommended Host Board Power Supply Circuit

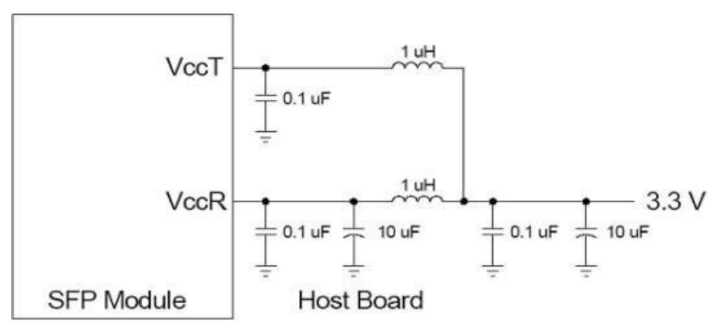

Recommended Host Board Power Supply Circuit of GPON ONU Stick with MAC SFP 1310nm-TX/1490nm-RX 1.244G-TX/2.488G-RX Class B+ 20km DOM Simplex SC/APC


Block Diagram

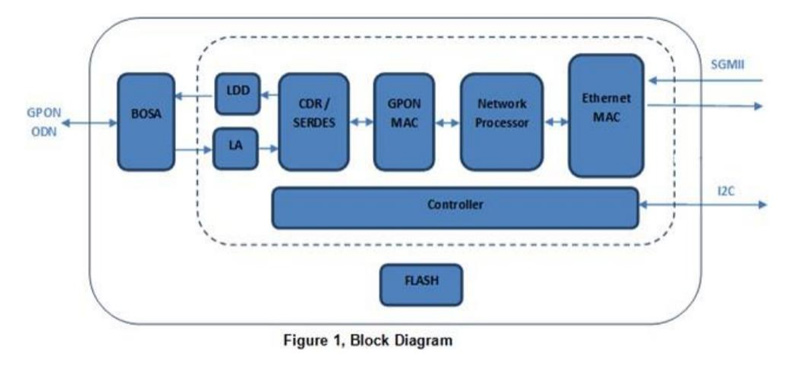

Block Diagram of GPON ONU Stick with MAC SFP 1310nm-TX/1490nm-RX 1.244G-TX/2.488G-RX Class B+ 20km DOM Simplex SC/APC


Application

● GPON ONT

● FTTx and Wireless Backhaul

● MDU/MTU Access

Ordering Information
LA-GPON-ONU-34-20B-IGPON ONU Stick with MAC SFP 1310nm-TX/1490nm-RX 1.244G-TX/2.488G-RX Class B+ 20km DOM Simplex SC/APC SMF


Date Version Description Download
2025-03-17 Datasheet_GPON Stick_LA-GPON-ONU-34-20BD-I_V4.0
How Can We Help You Today
Lastest News & Blog about Lanbras
OFC 2025 - Explore the Thriving and Ever
The 2025 Optical Fiber Communications Conference and Exhibition (OFC) is back to solidify its status as the premier global event for optical networking and communications. With over 13,500 expected re...
Mar 10, 2025
Learn More
MWC25 Barcelona - Where Technology and Commerce Converge
MWC Barcelona 2025 is the one time of year where everyone who’s anyone, in the world of connectivity, comes together under one roof. Tens of thousands of senior leaders from top global companies, int...
Feb 10, 2025
Learn More
INTERSEC DUBAI 2025
Intersec Dubai - The world’s leading trade fair for security, surveillance and fire protection.INTERSEC DUBAI 2025JAN 14–16 2025Dubai World Trade CenterIntersec will mark its 26th edition from 14–1...
Jan 05, 2025
Learn More
Follow us and the future of network.

Subscribe now, you can get over 100 valuable resources and white papers.

Follow us also can get the latest products and industry information in our members emails. Learn Details>>>

Lanao Communication Technology Limited.
Products and Solutions Inquiries
