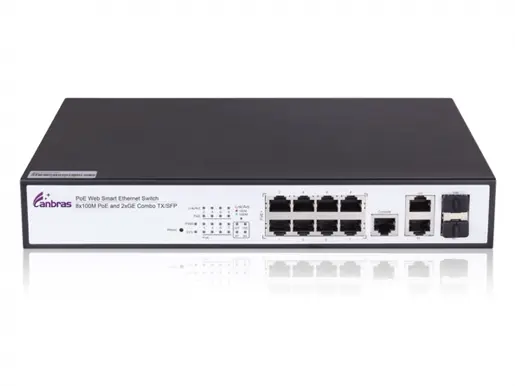

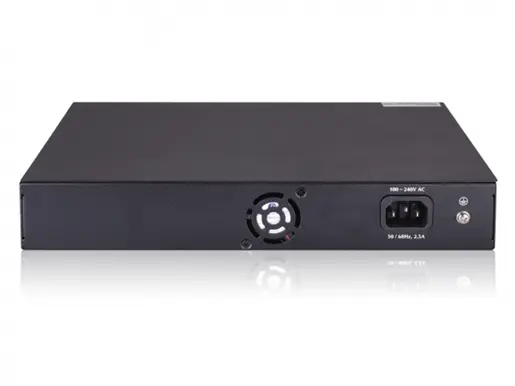

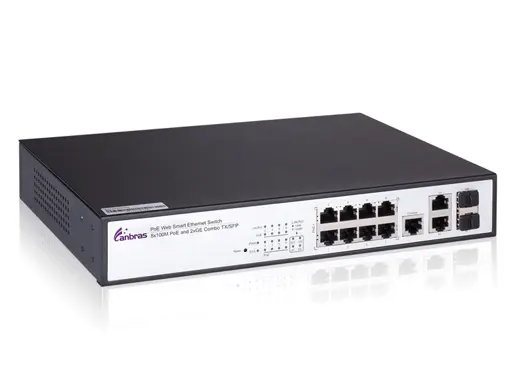

Ethernet PoE switch with 8x10/100M TX ports and 2xGE TX/SFP Combo Ports

LA-SWM3-DCFGC0208P is a new generation intelligent POE access switch designed for carrier's IP MAN and enterprise networks. Based on the new-generation high-performance hardware and ROS platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenarios.

VLAN

• 4K Active VLAN

• QinQ & Selective QinQ

• GVRP, Private VLAN, Voice VLAN

Spanning Tree

• 802.1D (STP)

• 802.1W (RSTP) and 802.1S (MSTP)

• BPDU guard, root guard and loopback guard

IP

• Static route

• 512 routing table

• IPv4/v6 dual stack

Reliability

• Static/LACP link aggregation, Interface backup

• EAPS and ERPS

• ISSU

Multicast

• IGMP v1/v2/v3

• IGMP Snooping

• IGMP Fast Leave

• MVR, IGMP filter

QoS

• CAR, HQoS, MAC/IP/TCP/UDP/  VLAN/COS/DSCP/TOS based

• QoS,802.1P/DSCP priority re- labeling, SP, WRR, and “SP+WRR”,

• Tail-Drop, WRED, flow monitoring and traffic shaping

Security

• Port isolation, Port security, and “IP+MAC+port” binding MAC Sticky DHCP Snooping and option 82, DAI & IP source guard,

• PPPoE+, Interface backup

• IEEE 802.1x, Radius and Tacacs+

• L2/L3/L4 ACL flow identification and filtration Anti-attack from

• DDoS, TCP’s SYN Flood, UDP Flood, etc.

• Broadcast/multicast/unknown unicast storm-control

• MD5, SHA-256, RSA-1024, AES256,etc.

Management

• Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

• TFTP, FTP, SFTP

• NTP

• ZTP(Zero Touch Provisioning)

• SPAN

Certification

• CE, FCC, ROHS

Accessories

• Power cord, rack-mount kits, console cable, anti-slipping pad

Environment

• Operating  temperature/ humidity: 0℃ -50℃ ,10%-90%

• non-condensing

• Storage  temperature/humidity:

• -20℃ -70℃, 5%-95% non-condensing

Carrier-Level Ethernet Access Switch

• Support the carrier-level Ethernet-ring protection protocol with less than 50ms recovery time, STP/RSTP/MSTP, backup uplink ports, and LACP link aggregation to cater to the requirements of high reliability of carriers;

• It has powerful ACL functions to access and control L2-L7 data based on physical port, providing carriers flexible and various policy control methods;

• Support In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;

• Support various L2 multicast functions such as IGMP snooping, fast-leave and MVR to fully meet the operation requirements of carrier's IPTV.

Intelligent POE+

• Support IEEE 802.3AF/AT POE standard, and power mapping scales up to a maximum of 370W of PoE+ power.

• Support POE non-stop power supply. The PoE+ power is maintained during a switch reload.

• Support manual and dynamic POE power allocation.

• Support up to 2KV thunder-proof of the POE port and power supply.

Enhanced QoS

• Support priority re-tagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority, better streamlining carrier’s services.

• It provides flexible bandwidth control policies, supporting port-/flow-based flow limit, ensuring the line speed forwarding of each port.

• Support multiple queue schedule algorithms such as SP, WRR and “SP + WRR”.

Security+

• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP- related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions.

• Perfect security authentication mechanisms: IEEE 802.1x, Radius and Tacacs+.

• Support storm/multicast/unicast limit, ensuring the normal running of equipment in harsh network conditions.

• Support perfect ring detection mechanism, ensuring the long-term stable running of network.

• Support port isolation within the same VLAN, DHCP Snooping, and IP + MAC + Port binding.

Easy Management and Maintenance

• Support many management modes such as the CLI, Telnet, SSH, SSL and SNMP.

• Support the WEB management mode, which is easy and efficient for installing and debugging the device.

• Support FTP, TFTP and SFTP. Support ISSU (In-Service Software Upgrade).

• Support SNMP and NMS smart network management platform. The combination realizes automatic equipment discovery,  network topology management, equipment configuration management, performance data statistics and analysis and trouble management

• Support Zero Touch Provisioning(ZTP) function to minimize manual operator intervention and helps reduce customers’ initial deployment costs.
