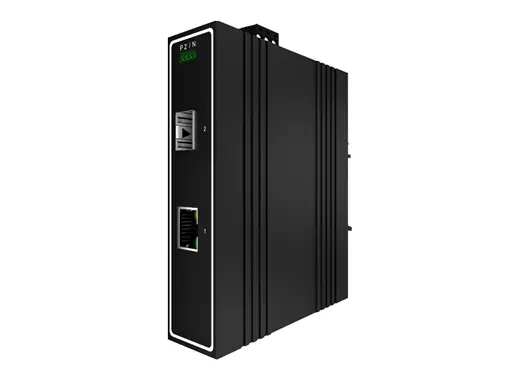

The industrial media converter provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.
Provider Mode Ports | |
Fixed port | 1*1000Base-X, 1*10/100/1000Base-T |
Power interface | Phoenix terminal, dual power supply |
LED Indicators | PWR,Main board fiber port indicator, NMC,Expansion board fiber port indicator |
DIP Switch Instructions | |
1 LFP | LFP/ Remote PD Reset |
2 LGY | LEGACY (Standard & Non-standard PoE) |
3 VLAN | Port Isolation |
4 RST | Reset |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m(CAT5e,CAT6) |
Monomode optical fiber | 20/40/60/80/100KM |
Multimode optical fiber | 550m |
Network Topology | |
Ring topology | Unsupported |
Star topology | Support |
Bus topology | Support |
Tree Topology | Support |
Hybrid topology | Support |
Electrical Specifications | |
Input voltage | DC12~58V |
Total Power consumption | <5W |
Layer 2 Switching | |
Switching capacity | 14G |
Packet forwarding rate | 10.416Mpps |
MAC address table | 8K |
Buffer | 1M |
Forwarding delay | <5us |
MDX/MIDX | Support |
Flow control | Support |
Jumbo frame | 10K bytes |
Storm Control | Support |
LFP or Remote PD Reset | Support |
Port Isolation | Support |
Reset | Support |
Environment | |
Operating temperature | -30℃~+75℃ |
Storage temperature | -30℃~+75℃ |
Relative humidity | 5%~90% (non-condensing) |
Thermal methods | Fanless, natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product size | 31*91*118mm (W×H×D) |
Installation Method | DIN-rail |
Weight | 0.4KG around |
EMC & Ingress Protection | |
IP Level | IP40 |
Surge protection of Power | IEC 61000-4-5 Level 3 (4KV/2KV)(8/20us) |
Surge protection of Ethernet port | IEC 61000-4-5 Level 3 (4KV/2KV)(10/700us) |
ESD | IEC 61000-4-2 Level 4(8K/15K) |
Authentication | |
Authentication | CCC/CE/FCC/RoHS |
Accessories | |
Accessories | Device, Terminals, Specification, Certificate |
Adapter(optional) | |
Optional Model | |
LA-MC4N-G0101 | 1*1000Base-X SFP fiber port, 1*10/100/1000M RJ45 Port,PoE support 802.3af & at |
LA-MC4N-G0101-SC | 1*1000Base-X SC fiber port, 1*10/100/1000M RJ45 Port, PoE support 802.3af & at |
LA-MC4N-G0101-FC | 1*1000Base-X FC fiber port, 1*10/100/1000M RJ45 Port, PoE support 802.3af & at |
LA-MC4N-G0101-ST | 1*1000Base-X ST fiber port, 1*10/100/1000M RJ45 Port, PoE support 802.3af & at |
Ordering Information | |
---|---|
LA-MC4N-G0101-ST | 1*1000Base-X ST fiber port, 1*10/100/1000M RJ45 Port, PoE support 802.3af & at |
LA-MC4N-G0101-FC | 1*1000Base-X FC fiber port, 1*10/100/1000M RJ45 Port, PoE support 802.3af & at |
LA-MC4N-G0101-SC | 1*1000Base-X SC fiber port, 1*10/100/1000M RJ45 Port, PoE support 802.3af & at |
LA-MC4N-G0101 | 1*1000Base-X, 1*10/100/1000Base-T Unmanaged Industrial Media Converter |
Date | Version | Description | Download | ||
2025-03-12 | LA-MC4N-G0101 |
