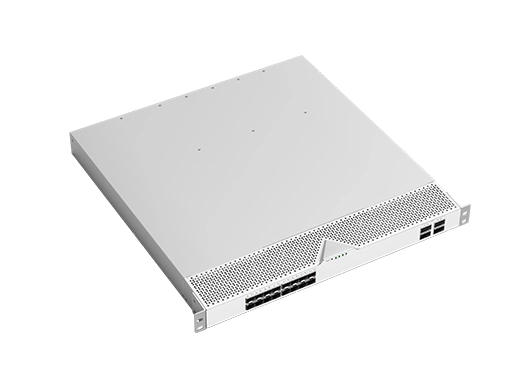

Data Center White Box Switch PTP with Renesas 16x10G SFP+, 4 x100G QSFP28

Overview

The device is a high density and low latency switch with 16x10G SFP+ and 4x100G QSFP28 ports in a single 1RU for data centers and high-end campus networks. It is high performance aggregation ToR (Top of Rack) switch for telco access, security and cloud, with advanced best- in- class, open-source network platform that line- rate L2 / L3 up to 2.18Tbps (1.09Tbpsx2) switching performance of Marvell Aldrin2 is paired with multi service features.

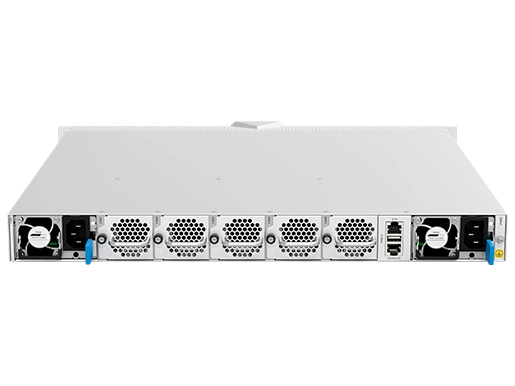

The power supply and fan modules are hot-swappable, supporting 1+ 1 and 4+ 1 redundancy respectively. Allowing maximum flexibility, the port speeds span from 10Gbps to 100Gbps per port and port density that enables full rack connectivity to any server at any speed. Each 100G QSFP28 port can be configured 40G, 4x25GbE or 4x10GbE via breakout cables.

We support open-source Open Network Install Environment (ONIE) for zero touch installation of SONiC networking operating system or commercial OcNOS system.

Features

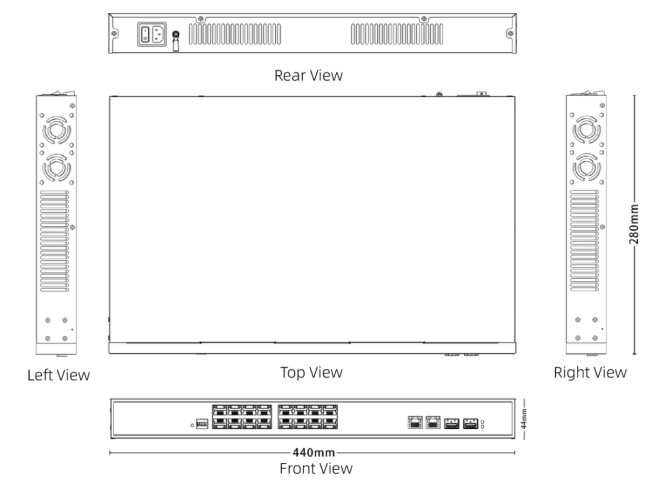

• Compact 1RU standard, 19-inch rack mountable design

• Cut-through with ultra-low-latency

• 2 (1+1 redundant) Redundant Hot-swappable PSU

• 5 (4+1 redundant) Hot-swappable Fan

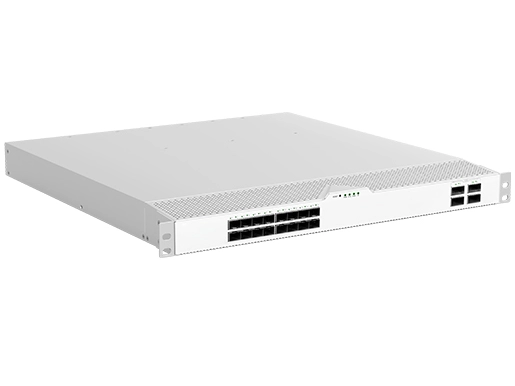

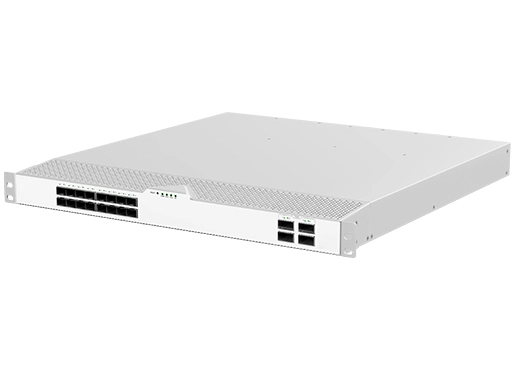

• 16 x 10G SFP+ ports and 4 x 100G QSFP28 ports

• Each 100G QSFP28 port can be configured 40G, 4x25GbE or 4x10GbE via breakout cables

• Up to 2.18Tbps (1.09Tbpsx2) of switching performance

• Open automated configuration and zero-touch provisioning capabilities

• Simplify management of network environments

• Interface flexibility & Power efficiency

Optional Software

* License fee will be quoted separately according to different project management requirements.

* Optional features supported by Hardware but limited to Software roadmap.

• MAC-Based VLANs

• Voice VLAN

• Multicast TV VLAN

• Triple Play, MVR

• Q-in-Q, Selective Q-in-Q

• Multicast Bridging Mode

• Static Multicast Groups

• IGMP Snooping

• MLD Snooping

• Flooding of Unregistered Multicast Frames

• Per-device Spanning Tree

• Rapid Spanning Tree

• Multiple Spanning Tree

• STP Root Guard

• BPDU Filtering

• STP BPDU Guard

• Per-device Loopback Detection (LBD)

• LACP

• LAG Balancing

• Static and Dynamics (DHCP/BootP) IP assignment

• DNS Client

• IPv6 Host

• Dual Stack

• ISATAP Tunneling

• MAC-based Port Security (Locked Port)

• 802.1x Port-Based Authentication

• Time Based 802.1x

• Guest VLAN

• Unauthenticated VLANs

• 802.1x - MAC Authentication

• Action-on-Violation

• Flow Monitoring (sFlow)

• RADIUS Remote Authorization and Authentication

• RADIUS Accounting

• TACACS+

• DHCP Snooping

• IP Source Address Guard

• ARP Inspection

• DoS Attack Prevention

• SSL

• SSH

• QoS Across the Stack

• QoS statistics

• Egress Rate Limiting (Shaping)

• Ingress Rate Limiting

• Packet Storm Control

• Dynamic VLAN Assignment

MPLS/MPLS-TP Feature list*

• MPLS Architecture Support*

• LDP, RSVP support*

• RSVP Traffic Engineering support*

• RSVP FRR with 1:1 and 1:n support*

• Pseudowire setup and maintenance using LDP*

• Pseudowire setup and maintenance using BGP*

• EVPN support over VPLS*

• MPLS L3VPN for IPv4/IPv6*

• Differentiated Services over MPLS*

• BFD for Pseudowire VCCV*

• OAM for MPLs based transport networks, proactive connectivity check, RDI*

• MPLS TP, Transport Profile Support*

• MVPN Support*
