Data Center White Box Switch 48 x 25G SFP28, 8 x 100G QSFP28

LA-SWM3-DC100G08X25G48M

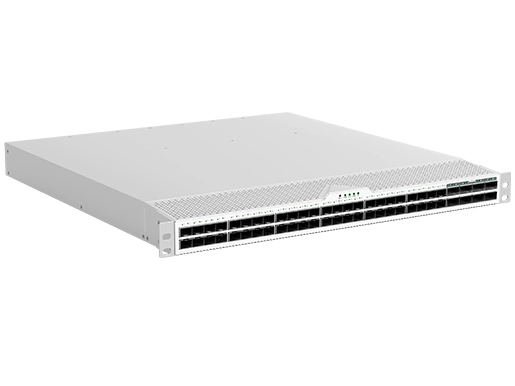

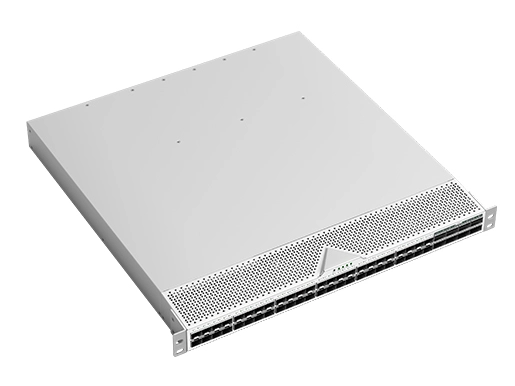

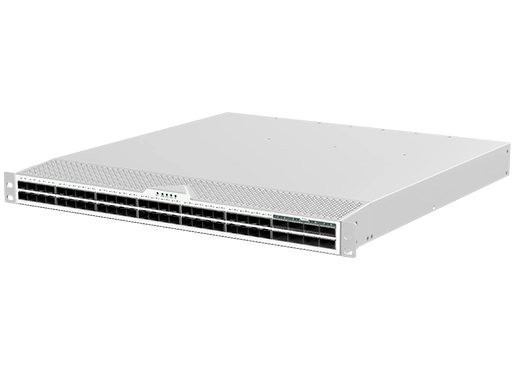

LA-SWM3-DC100G08X25G48M is a high port density switch with 48x25G SFP28 and 8x100G QSFP28 ports in a single 1RU for data centers and high-end campus networks.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-SWM3-DC100G08X25G48M is a high port density switch with 48x25G SFP28 and 8x100G QSFP28 ports in a single 1RU for data centers and high-end campus networks. It is ideally suited for deployment at the server access layer in large enterprise data centers, with advanced best- in- class, open-source network platform that line- rate L2/L3 up to 4.0Tbps (2.0Tbpsx2) switching performance of Marvell Falcon is paired with multi service features.


Delivers high-performance, high interface density and low latency to allow enterprises and carriers to build cloud-oriented data center networks. Ideal spine and top of rack(ToR) solutions, allowing maximum flexibility, with port speeds spanning from 10Gbps to 100Gbps per port and port density that enables full rack connectivity to any server at any speed.


Use of Marvell Falcon ASIC and Intel Broadwell CPU with DDR4 memory and flash. Expansion enables custom software configurations. Supports the open source Open Network Install Environment(ONIE) for zero touch installation of SONiC networking operating system.


Features

● Compact 1RU standard, 19-inch rack mountable design

● Cut-through with ultra-low-latency

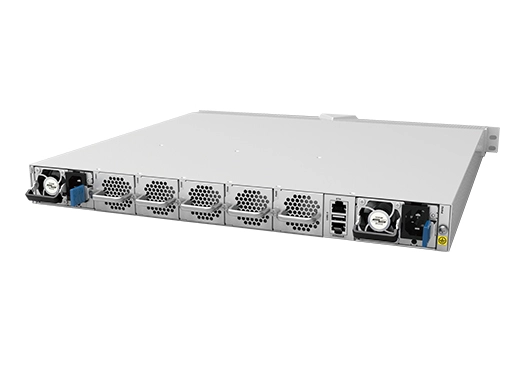

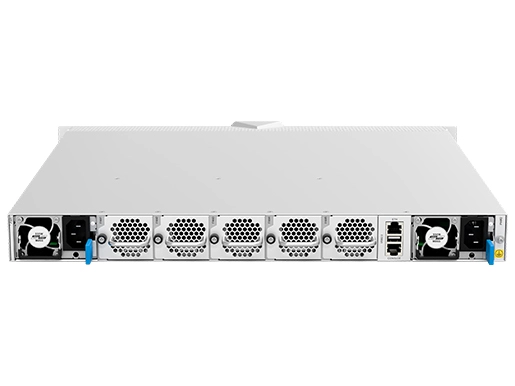

● 2 (1+1 redundant) Redundant Hot-swappable PSU

● 5 (4+1 redundant) Hot-swappable Fan

● 48 x 25 Gbps (SFP28) ports and 8 x 100 Gbps (QSFP28) ports

● Up to 2Tbps of switching I/O bandwidth (full duplex)

● Open automated configuration and zero touch provisioning capabilities

● Simplify management of network environments


Optional Software

License fee will be quoted separately according to different project management requirements.

Optional features supported by Hardware but limited to Software roadmap.


Optional Software of Data Center White Box Switch 48 x 25G SFP28, 8 x 100G QSFP28


Layer 2 Feature list

● 802.1D Spanning Tree Protocol/802.1 w Rapid

● Spanning Tree / 802.1 s Multiple Spanning Tree / RPVST+

● VLAN’s with QinQ

● 802.1Q VLAN’s / Trunking support

● Private VLAN’s

● 802.1 AB Link Layer Discovery protocol

● 802.3x Flow control

● 802.1x Authentication*

● 802.3ad Link aggregation group support

● Multi-chassis Link aggregation group support

● CFM 802.1ag*

● Y.1731*

● VxLAN support with EVPN

● TRILL*

● QCN, ETS, PFC*


Layer 3 Feature list

● Static IPv4/Ipv6

● OSPFv2/v3, ISIS (v4/v6), MP-BGP, RIPv2

● Multi-path ECMP

● VRF Lite – IPv4

● BFD for IPv4, IPv6, Protocol support for OSPF, BGP

● in Global and VRF space

● IGMP v2/v3

● IGMP Snooping, querier, proxy report suppression

● MLD

● MSDP

● PIM-SM, PIM-SSM, PIM-DM (IPv4/IPv6

● VRRP


MPLS/MPLS-TP Feature list*

● MPLS Architecture Support*

● LDP, RSVP support*

● RSVP Traffic Engineering support*

● RSVP FRR with 1:1 and 1:n support*

● Pseudowire setup and maintenance using LDP*

● Pseudowire setup and maintenance using BGP*

● EVPN support over VPLS*

● MPLS L3VPN for IPv4/IPv6*

● Differentiated Services over MPLS*

● BFD for Pseudowire VCCV*

● OAM for MPLs based transport networks, proactive connectivity check, RDI*

● MPLS TP, Transport Profile Support*

● MVPN Support*


Management, Security and Qos Features

● Access control list

● RADIUS & TACACS+ support

● Role based access control

● Modular QOS for Policing, Marking and Shaping

● Hierarchical QOS*

● Flexible flow classification and action rule-set

● NETCONF support*

● Ansible Integration*

● Sflow support

● DCHP Relay/Client

● Syslog

● SNMP Support

● Industry standard CLI

Provided Fix Ports48 x 25G SFP28, 8 x 100G QSFP28
Management Ports1x RJ45 100/1000Base-T Out-of-band
1x RJ45 Console
1x USB2.0
Switching ChipMarvell Falcon 98CX8514
CPUIntel Broadwell-DE D1508
Memory8GB DDR4
StorageSSD: 64GB eMMC, optional M.2 STAT slot
Power Supply Units2 x AC110~240V, 550w
1+1 Hot-swappable
Power Consumption≤520 Watts
Fan Unit5 (4+1 redundant) Hot swappable
Form Factor and Dimension445×469×44mm (WxDxH)
Net Weight (kg)9.6 Kgs
Operating Temperature0°С ~ 45°С
Storage Temperature-40°С ~ 70°С
Relative Humidity5%-95% (non-condensing)
Operating Altitude3000m max
MTBF40 Years
MTTR1 Hour
Switching Capacity4.0 Tbps
Forwarding Rate2.8 Gpps
Jumbo framesYes
Packet Buffer Size24MB
Transmit Deors192K
Bridge FDB EntriesUp to 256K
Router IPv4 Host EntriesUp to 256K
Router IPv6 Host EntriesUp to 128K
Router LPMIPv4 - up to 512K unicast prefixes
IPv6 - up to 256K unicast 64-bit prefixes
TCAM Resources36K x 10B rules (18K x 10B per dual control pipe)
(Shared between TTI, IPCL
and EPCL Classification Engines)
Virtual Ports (ePorts)8K
Bridge Domains (eVLANs)Up to 8K
Multicast Physical PortUp to 4K
Groups (VIDX)
Multicast Virtual Port16K
Groups (eVIDX)
Multicast Linked List16K
(MLL) Entries
Tunnel-Start/ARP TableU p to 192K ARP entries
Up to 48K Non-IPv6 Tunnel-Start entries
Up to 24K IPv6 Tunnel-Start entries
Router Next Hop Entries24K
Router ECMP Groups12K
ePort ECMP Groups16K
Trunk ECMP GroupUp to 4K
L2 ECMP Table (Shared by ePort ECMP group and Trunk ECMP groups)16K ECMP members Each ECMP group may contain up to 4K EMCP members
Hardware OAM Flows16K ECMP members 4K OAM flows (1K OAM flows per control pipe)
Spanning Tree GroupsUp to 4K


Ordering Information
LA-SWM3-DC100G08X25G48MData Center Managed Switch 48 x 25G SFP28, 8 x 100G QSFP28


Date Version Description Download
2025-03-07 Data Center White Box Switch 48 x 25G SFP28, 8 x 100G QSFP28
