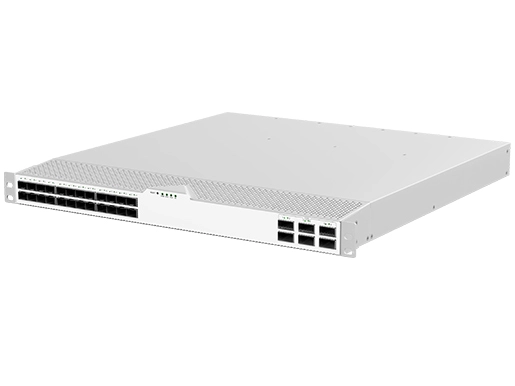

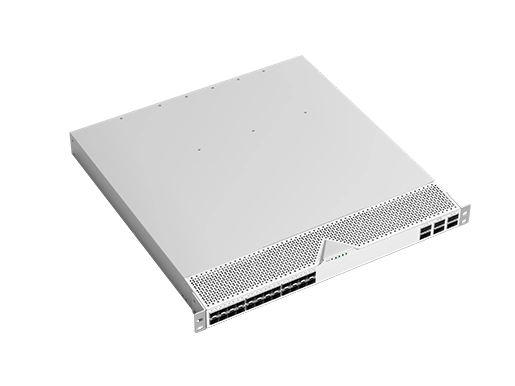

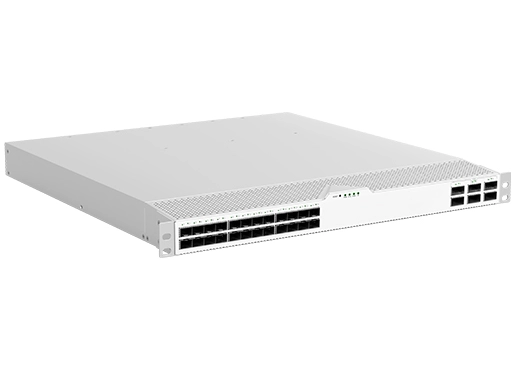

Data Center White Box Switch 24x10G SFP+, 6x100G QSFP28

DCSL3M-06C24X
DCSL3M-06C24X is a high density and low latency switch with 24x10G SFP+ and 6x100G QSFP28 ports in a single 1RU for data centers and high-end campus networks.
Overview
Specifications
Connectivity Solutions
Models
Resources

Overview

DCSL3M-06C24X is a high density and low latency switch with 24x10G SFP+ and 6x100G QSFP28 ports in a single 1RU for data centers and high-end campus networks. It is high performance aggregation ToR (Top of Rack) switch for telco access, security and cloud, with advanced best- in- class, open-source network platform that line- rate L2/L3 up to 2.18Tbps (1.09Tbpsx2) switching performance of Marvell Aldrin2 is paired with multi service features.

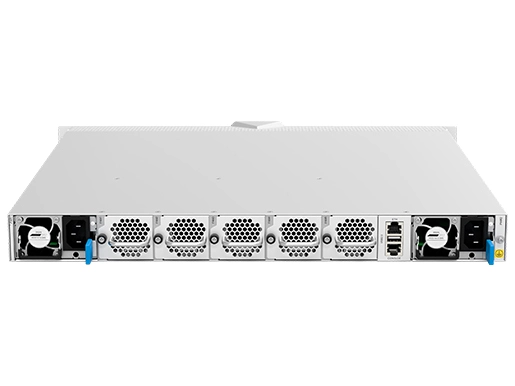

The power supply and fan modules are hot-swappable, supporting 1+1 and 4+1 redundancy respectively. Allowing maximum flexibility, the port speeds span from 10Gbps to 100Gbps per port and port density that enables full rack connectivity to any server at any speed. Each 100G QSFP28 port can be configured 40G, 4x25GbE or 4x10GbE via breakout cables.


We support open-source Open Network Install Environment (ONIE) for zero touch installation of SONiC networking operating system or commercial OcNOS system.


Features

  • Compact 1RU standard, 19-inch rack mountable design

  • Cut-through with ultra-low-latency

  • 2 (1+1 redundant) Redundant Hot-swappable PSU

  • 5 (4+1 redundant) Hot-swappable Fan

  • 24 x 10G SFP+ ports and 6 x 100G QSFP28 ports

  • Each 100G QSFP28 port can be configured 40G, 4x25GbE or 4x10GbE via breakout cables

  • Up to 2.18Tbps (1.09Tbpsx2) of switching performance

  • Open automated configuration and zero-touch provisioning capabilities

  • Simplify management of network environments

  • Interface flexibility & Power efficiency


Provided Fix Ports

24 x 10G SFP+, 6 x 100G QSFP28

Management Ports

1x RJ45 100/1000Base-T Out-of-band

1x RJ45 Console

1x USB2.0

Switching Chip

Marvell Aldrin2 98DX8548

CPU

Maverll Octeon TX2 CN9130

PTP

Renesas 8A34002E

Memory

8GB DDR4

Storage

SSD: 64GB eMMC, optional M.2 STAT slot

Power Supply Units

2 x AC110~240V, 350w

1+1 Hot-swappable

Power Consumption

≤250 Watts

Fan Unit

5 (4+1 Redundant), Hot-swappable

Form Factor and Dimension

445×469×44mm (WxDxH), 1RU

Net Weight (kg)

9.7 Kgs

Operating Temperature

0°С ~ 45°С

Storage Temperature

-40°С ~ 70°С

Relative Humidity

5%-95% (non-condensing)

Operating Altitude

3000m Max.

MTBF

40 Years

MTTR

1 Hour

Switching Capacity

2.18 Tbps (1.09 Tbps x 2)

Forwarding Rate

0.6 Gpps

Jumbo Frames

Yes

Packet Buffer Size

6MB

Bridge FDB Entries

32K

Router IPv4 Host Entries

Up to 16K Unicast prefixes (LP32M)1 or

Up to 3K (*,G) addresses

Router IPv6 Host Entries

Up to 8K Unicast prefixes (LPM) 3 or

Up to 0.5K (*,G) addresses

Router LPM

IPv4 - up to 16K unicast prefixes

IPv6 - up to 8K unicast 64-bit prefixes

TCAM Resources

(Shared between TTI, IPCL and EPCL Classification Engines)

9K x 10B rules

Virtual Ports (ePorts)

8K

Bridge Domains (eVLANs)

8K

Multicast Physical Port

Groups (VIDX)

4K

Multicast Virtual Port

Groups (eVIDX)

16K

Multicast Linked List

(MLL) Entries

16K

Tunnel-Start/ARP Table

Up to one of the following

- 32K ARP entries

- 8K Non-IPv6 Tunnel-Start entries

- 4K IPv6 Tunnel-Start entries

Router Next Hop Entries

8K

Router ECMP Groups

8K

ePort ECMP Groups

8K

Trunk ECMP Group

4K

QoS Profiles

1K

Hardware OAM Flows

2K

Spanning Tree Groups

1K


Optional Software

* License fee will be quoted separately according to different project management requirements.

* Optional features supported by Hardware but limited to Software roadmap.


  • MAC-Based VLANs

  • Voice VLAN

  • Multicast TV VLAN

  • Triple Play, MVR

  • Q-in-Q, Selective Q-in-Q

  • Multicast Bridging Mode

  • Static Multicast Groups

  • IGMP Snooping

  • MLD Snooping

  • Flooding of Unregistered Multicast Frames

  • Per-device Spanning Tree

  • Rapid Spanning Tree

  • Multiple Spanning Tree

  • STP Root Guard

  • BPDU Filtering

  • STP BPDU Guard

  • Per-device Loopback Detection (LBD)

  • LACP

  • LAG Balancing

  • Static and Dynamics (DHCP/BootP) IP assignment

  • DNS Client

  • IPv6 Host

  • Dual Stack

  • ISATAP Tunneling

  • MAC-based Port Security (Locked Port)

  • 802.1x Port-Based Authentication

  • Time Based 802.1x

  • Guest VLAN

  • Unauthenticated VLANs

  • 802.1x - MAC Authentication

  • Action-on-Violation

  • Flow Monitoring (sFlow)

  • RADIUS Remote Authorization and Authentication

  • RADIUS Accounting

  • TACACS+

  • DHCP Snooping

  • IP Source Address Guard

  • ARP Inspection

  • DoS Attack Prevention

  • SSL

  • SSH

  • QoS Across the Stack

  • QoS statistics

  • Egress Rate Limiting (Shaping)

  • Ingress Rate Limiting

  • Packet Storm Control

  • Dynamic VLAN Assignment


MPLS/MPLS-TP Feature list*

  • MPLS Architecture Support*

  • LDP, RSVP support*

  • RSVP Traffic Engineering support*

  • RSVP FRR with 1:1 and 1:n support*

  • Pseudowire setup and maintenance using LDP*

  • Pseudowire setup and maintenance using BGP*

  • EVPN support over VPLS*

  • MPLS L3VPN for IPv4/IPv6*

  • Differentiated Services over MPLS*

  • BFD for Pseudowire VCCV*

  • OAM for MPLs based transport networks, proactive connectivity check, RDI*

  • MPLS TP, Transport Profile Support*

  • MVPN Support*
