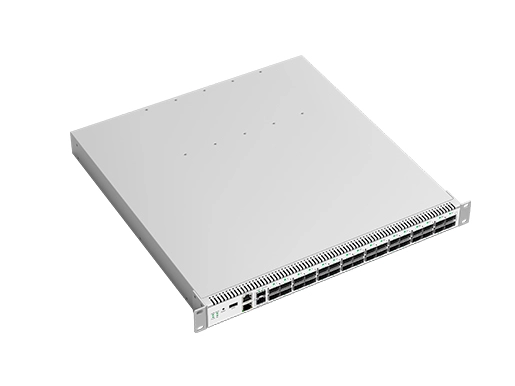

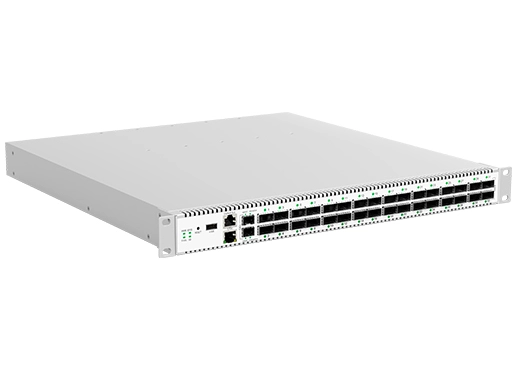

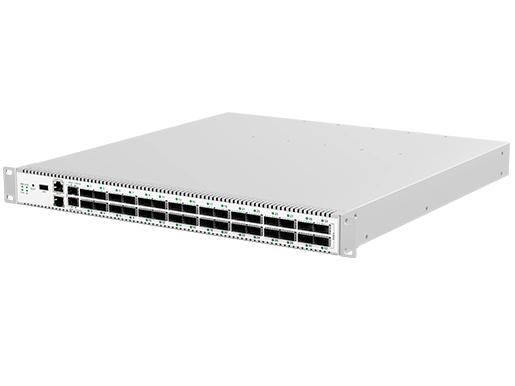

Data Center Switch 32 x 400G QSFP56-DD, 2 x 10G SFP+

LA-SWM3-DC400G32X10G02M is a high port density switch with 32xQSFP56-DD ports in a single 1RU and single packet forwarding engine for Data centers that need unprecedented speed. With 32xQSFP56-DD 400G ports it is ideally suited for deployment at leaf/spine in data centers, where high performance is the most important, with 25.6Tbps (12.8Tbpsx2) total performance - as ultra-powerful appliance.

Primarily packaged to meet the requirements of deployments that require smaller form factor and access to all network ports and management ports from the front side of the product. Be used to provide 32x400G+2x10G ports solution. In the interest of achieving the smallest possible form factor, minimum cost and the lowest system power consumption. In order to be able to fit all access, uplink and data ports on the front side of a 1U system, all data plane connectivity to it is provided through QSFP56-DD sockets. Each QSFP56-DD socket can operate as a single 400GbE port. Main Ethernet access ports are QSFP56-DD sockets which support 400GBASE-SR8, FR8, LR8, ER8 and DR4 physical layers. The total system contains a CPU subsystem with 16GB of DDR4 RAM and 64GB of M.2 SSD storage by the default setting. The CPU is connected to a set of central management pro- cessors that reside elsewhere in the system through an out of band control plane Ethernet connection.

Features

● Compact 1RU standard, 19-inch rack mountable design

● Cut-through with ultra-low-latency

● 2 (1+1 redundant) Redundant Hot-swappable PSU

● 5 (4+1 redundant) Hot-swappable Fan

● 32x400G QSFP56-DD in 1U form factor

● 256x56G High Speed Serdes MAC in a single PFE Packet Forwarding Engine that support 1/10/25/56 port speed modes

● 2x10Gpbe SFP+ and 1xGBaseT RJ45 Management Port

Optional Software

• License fee will be quoted separately according to different project management requirements.

• Optional features supported by Hardware but limited to Software roadmap.

Layer 2 Feature list

● 802.1D Spanning Tree Protocol/802.1 w Rapid

● Spanning Tree / 802.1 s Multiple Spanning Tree / RPVST+

● VLAN’s with QinQ

● 802.1Q VLAN’s / Trunking support

● Private VLAN’s

● 802.1 AB Link Layer Discovery protocol

● 802.3x Flow control

● 802.1x Authentication*

● 802.3ad Link aggregation group support

● Multi-chassis Link aggregation group support

● CFM 802.1ag*

● Y.1731*

● VxLAN support with EVPN

● TRILL*

● QCN, ETS, PFC*

Layer 3 Feature list

● Static IPv4/Ipv6

● OSPFv2/v3, ISIS (v4/v6), MP-BGP, RIPv2

● Multi-path ECMP

● VRF Lite – IPv4

● BFD for IPv4, IPv6, Protocol support for OSPF, BGP

● in Global and VRF space

● IGMP v2/v3

● IGMP Snooping, querier, proxy report suppression

● MLD

● MSDP

● PIM-SM, PIM-SSM, PIM-DM (IPv4/IPv6

● VRRP

MPLS/MPLS-TP Feature list*

● MPLS Architecture Support*

● LDP, RSVP support*

● RSVP Traffic Engineering support*

● RSVP FRR with 1:1 and 1:n support*

● Pseudowire setup and maintenance using LDP*

● Pseudowire setup and maintenance using BGP*

● EVPN support over VPLS*

● MPLS L3VPN for IPv4/IPv6*

● Differentiated Services over MPLS*

● BFD for Pseudowire VCCV*

● OAM for MPLs based transport networks, proactive connectivity check, RDI*

● MPLS TP, Transport Profile Support*

● MVPN Support*

Management, Security and Qos Features

● Access control list

● RADIUS & TACACS+ support

● Role based access control

● Modular QOS for Policing, Marking and Shaping

● Hierarchical QOS*

● Flexible flow classification and action rule-set

● NETCONF support*

● Ansible Integration*

● Sflow support

● DCHP Relay/Client

● Syslog

● SNMP Support

● Industry standard CLI
