Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

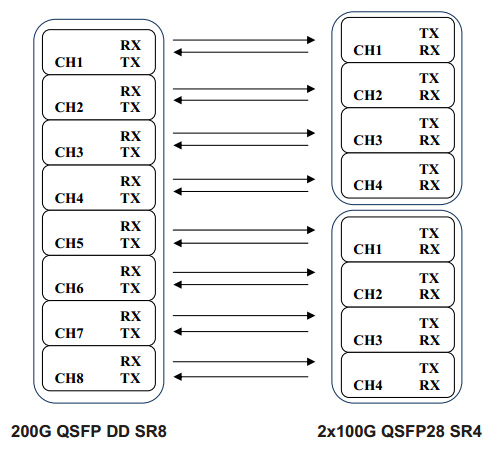

200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

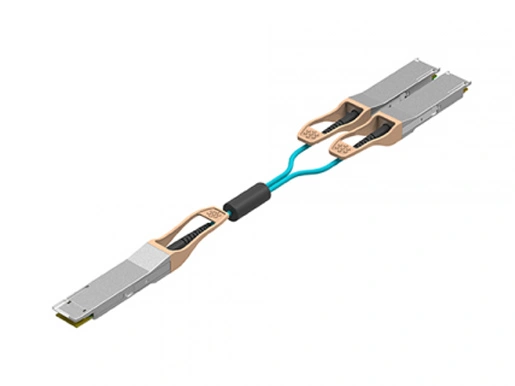

200G QSFPDD To 2x100G QSFP28 breakout Active Optical Cable is designed for short-range multi-lane data communication and interconnect applications.
Overview
Specifications
Connectivity Solutions
Models
Resources

200G QSFPDD To 2x100G QSFP28 breakout Active Optical Cable is designed for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8x25.78125Gbps bandwidth. Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses a 24 fiber MTP (MPO) connector. This module incorporates technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.3

3.6

V

Input Voltage

Vin

-0.3

Vcc+0.3

V

Storage Temperature

Tst

-20

85

ºC

Case Operating Temperature

Top

0

70

ºC

Humidity(non-condensing)

Rh

5

95

%


Recommended Operating Conditions


Parameter

Symbol

Min

Typical

Max

Unit

Supply Voltage

Vcc

3.13

3.3

3.47

V

Operating Case temperature

Tca

0


70

ºC

Data Rate Per Lane

fd


25.78125


Gbps

Humidity

Rh

5


85

%

Power Dissipation

Pm


2

2.5

W

Fiber Bend Radius

Rb

3



cm



Electrical Specifications


Parameter

Symbol

Min

Typical

Max

Unit

Differential input

impedance

Zin

90

100

110

ohm

Differential Output

impedance

Zout

90

100

110

ohm

Differential input

voltage amplitude

aAmplitude

ΔVin

300


1100

mVp-p

Differential output

voltage amplitude

ΔVout

500


800

mVp-p

Skew

Sw



300

ps

Bit Error Rate1

BER



E-12


Input Logic Level High2

VIH

2.0


VCC

V

Input Logic Level Low2

VIL

0


0.8

V

Output Logic Level High3

VOH

VCC-0.5


VCC

V

Output Logic Level Low3

VOL

0


0.4

V



Note:

1.  BER=10^-12; PRBS 2^31-1@25.78125Gbps .

2. Differential input voltage amplitude  is measured between TxnP and TxnN.

3. Differential output voltage amplitude  is measured between RxnP and RxnN.


Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

840

850

860

nm

-

RMS spectral width

∆λ

-

-

0.6

nm

-

Average launch power,

each lane

Pout

-8.4

-

2.4

dBm

-

Optical Modulation

Amplitude

(OMA),each lane

OMA

-6.4


3

dBm

-

Transmitter and

dispersion

eye closure(TDEC),

each lane

TDEC



4.3

dB


Extinction Ratio

ER

3

-

-

dB

-

Average launch

power of OFF

transmitter, each lane




-30

dB

-

Eye Mask coordinates:

X1, X2, X3, Y1, Y2, Y3

SPECIFICATION VALUES

{0.3,0.38,0.45,0.35,0.41.0.5}

Hit Ratio = 5x10-5


Receiver

Centre Wavelength

λc

840

850

860

nm

-

Stressed receiver

sensitivity in OMA




-5.2

dBm

1

Maximum Average

power at receiver,

each lane

input, each lane




2.4

dBm

-

Minimum Average

power at receiver,

each lane




-10.3

dBm


Receiver Reflectance




-12

dB

-

LOS Assert


-30



dBm

-

LOS De-Assert – OMA




-7.5

dBm

-

LOS  Hysteresis


0.5



dB

-

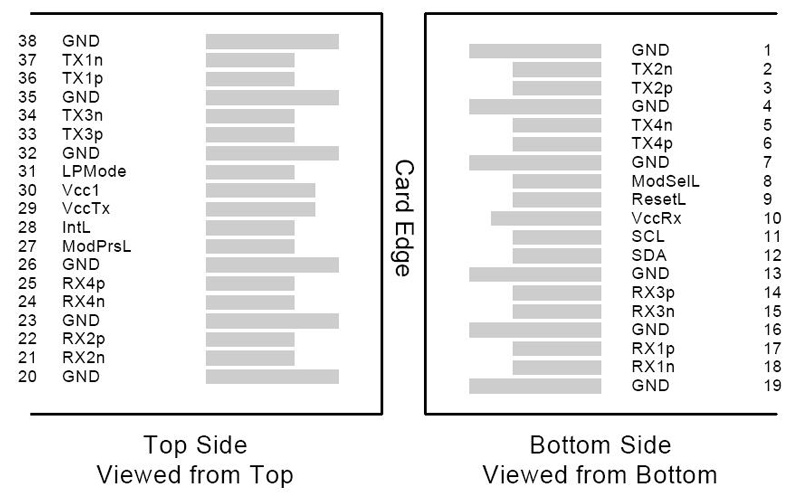

Pin Deions (100G QSFP28 SR4)

Pin

Logic

Symbol

Name/Deion

Ref.

1


GND

Module Ground

1

2

CML-I

Tx2-

Transmitter inverted data input


3

CML-I

Tx2+

Transmitter non-inverted data input


4


GND

Module Ground

1

5

CML-I

Tx4-

Transmitter inverted data input


6

CML-I

Tx4+

Transmitter non-inverted data input


7


GND

Module Ground

1

8

LVTTL-I

MODSEIL

Module Select

2

9

LVTTL-I

ResetL

Module Reset

2

10


VCCRx

+3.3v Receiver Power Supply


11

LVCMOS-I

SCL

2-wire Serial interface clock

2

12

LVCMOS-I/O

SDA

2-wire Serial interface data

2

13


GND

Module Ground

1

14

CML-O

RX3+

Receiver non-inverted data output


15

CML-O

RX3-

Receiver inverted data output


16


GND

Module Ground

1

17

CML-O

RX1+

Receiver non-inverted data output


18

CML-O

RX1-

Receiver inverted data output


19


GND

Module Ground

1

20


GND

Module Ground

1

21

CML-O

RX2-

Receiver inverted data output


22

CML-O

RX2+

Receiver non-inverted data output


23


GND

Module Ground

1

24

CML-O

RX4-

Receiver inverted data output


25

CML-O

RX4+

Receiver non-inverted data output


26


GND

Module Ground

1

27

LVTTL-O

ModPrsL

Module Present, internal pulled down to GND


28

LVTTL-O

IntL

Interrupt output, should be pulled up on host board

2

29


VCCTx

+3.3v Transmitter Power Supply


30


VCC1

+3.3v Power Supply


31

LVTTL-I

LPMode

Low Power Mode

2

32


GND

Module Ground

1

33

CML-I

Tx3+

Transmitter non-inverted data input


34

CML-I

Tx3-

Transmitter inverted data input


35


GND

Module Ground

1

36

CML-I

Tx1+

Transmitter non-inverted data input


37

CML-I

Tx1-

Transmitter inverted data input


38


GND

Module Ground

1


Notes:

1. Module circuit ground is isolated from module chassis ground within the module.

2. Open collector; should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.


Pin Deion (200G QSFP DD SR8)

Pin

Logic

Symbol

Name/Deion

1


GND

Module Ground 1

2

CML-I

Tx2-

Transmitter inverted data input

3

CML-I

Tx2+

Transmitter non-inverted data input

4


GND

Module Ground 1

5

CML-I

Tx4-

Transmitter inverted data input

6

CML-I

Tx4+

Transmitter non-inverted data input

7


GND

Module Ground 1

8

LVTTL-I

MODSEIL

Module Select 2

9

LVTTL-I

ResetL

Module Reset 2

10


VCCRx

+3.3V Receiver Power Supply

11

LVCMOS-I/O

SCL

2-wire Serial interface clock 2

12

LVCMOS-I/O

SDA

2-wire Serial interface data 2

13


GND

Module Ground 1

14

CML-O

RX3+

Receiver non-inverted data output

15

CML-O

RX3-

Receiver inverted data output

16


GND

Module Ground 1

17

CML-O

RX1+

Receiver non-inverted data output

18

CML-O

RX1-

Receiver inverted data output

19


GND

Module Ground 1

20


GND

Module Ground 1

21

CML-O

RX2-

Receiver inverted data output

22

CML-O

RX2+

Receiver non-inverted data output

23


GND

Module Ground 1

24

CML-O

RX4-

Receiver inverted data output

25

CML-O

RX4+

Receiver non-inverted data output

26


GND

Module Ground 1

27

LVTTL-O

ModPrsL

Module Present, internal pulled down to GND 2

28

LVTTL-O

IntL

Interrupt output, should be pulled up on host board 2

29


VCCTx

+3.3V Transmitter Power Supply

30


VCC1

+3.3V Power Supply

31

LVTTL-I

InitMode

Initialization mode; In legacy QSFP applications, the InitMode pad is called LPMODE 2

32


GND

Module Ground 1

33

CML-I

Tx3+

Transmitter non-inverted data input

34

CML-I

Tx3-

Transmitter inverted data input

35


GND

Module Ground 1

36

CML-I

Tx1+

Transmitter non-inverted data input

37

CML-I

Tx1-

Transmitter inverted data input

38


GND

Module Ground 1

39







GND

Module Ground 1

40


CML-I

Tx6-

Transmitter inverted data input

41

CML-I

Tx6+

Transmitter non-inverted data input

42


GND

Module Ground 1

43

CML-I

Tx8-

Transmitter inverted data input

44

CML-I

Tx8+

Transmitter non-inverted data input

45


GND

Module Ground 1

46


Reserved

For future use

47


VS1

Module Vender Specific 1

48


VCCRx1

+3.3V Power Supply

49


VS2

Module Vender Specific 2

50


VS3

Module Vender Specific 3

51


GND

Module Ground 1

52

CML-O

RX7+

Receiver non-inverted data output

53

CML-O

RX7-

Receiver inverted data output

54


GND

Module Ground 1

55

CML-O

RX5+

Receiver non-inverted data output

56

CML-O

RX5-

Receiver inverted data output

57


GND

Module Ground 1

58


GND

Module Ground 1

59

CML-O

RX6-

Receiver inverted data output

60

CML-O

RX6+

Receiver non-inverted data output

61


GND

Module Ground 1

62

CML-O

RX8-

Receiver inverted data output

63

CML-O

RX8+

Receiver non-inverted data output

64


GND

Module Ground 1

65


NC

N0 Connect

66


Reserved

For future use

67


VCCTx1

+3.3V Power Supply

68


VCC2

+3.3V Power Supply

69


Reserved

For future use

70


GND

Module Ground 1

71

CML-I

Tx7+

Transmitter non-inverted data input

72

CML-I

Tx7-

Transmitter inverted data input

73


GND

Module Ground 1

74

CML-I

Tx5+

Transmitter non-inverted data input

75

CML-I

Tx5-

Transmitter inverted data input

76


GND

Module Ground 1


Note:

1.  Module circuit ground is isolated from module chassis ground within the module.

2.  Open collector should be pulled up with 4.7K to 10K ohms on host board to a voltage between 3.15V and 3.6V.


Features

●  Hot-pluggable QSFP DD/QSFP28 form factor

●  8 channels full-duplex transceiver module

●  Supports data rate up to 26Gbps per channel

●  8 channels 850nm VCSEL array and PIN photo-detector array

●  Internal CDR circuits within receiver and transmitter data paths

●  Supports CDR bypass via I2C controlled

●   Low power consumption: 200GBASE-SR8 QSFP DD<4w and 100GBASE-SR4 QSFP28<2.5w

●  Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

●  Single MTP/MPO receptacle

●  Built-in digital diagnostic monitoring functionality

●  I2C management interface

●  Commercial case temperature of 0 to 70°C

●  Single 3.3V power supply

●  RoHS 2.0 compliant (lead free)


Applications

●  IEEE 802.3cd 200GBASE SR8

●  IEEE 802.3bm 100GBASE SR4


Module Block Diagram

Module Block Diagram of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

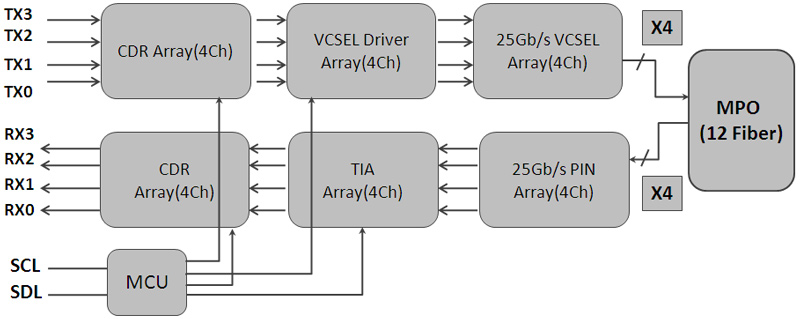

Figure 1. 100G QSFP28 SR4 Module Block Diagram


Module Block Diagram of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 2. 200G QSFP DD Module Block Diagram


Module Block Diagram of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

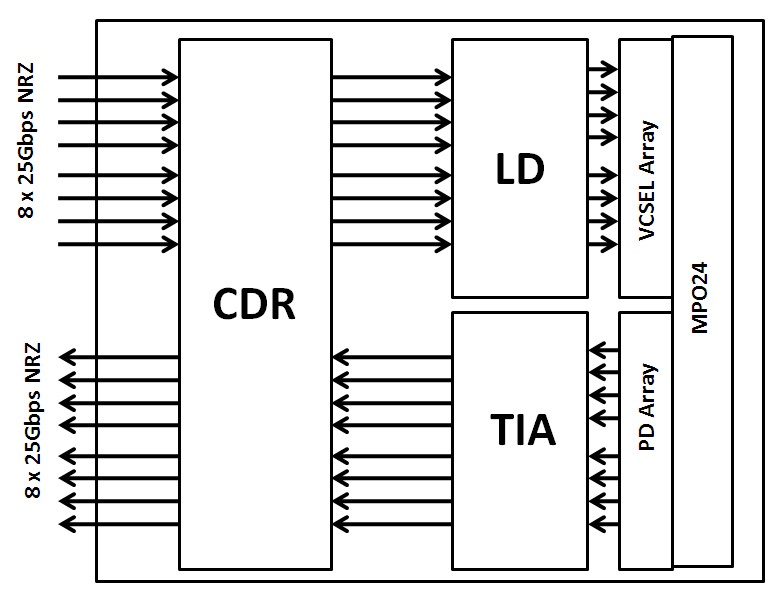

Figure 3. AOC Block Diagram


Module Block Diagram of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

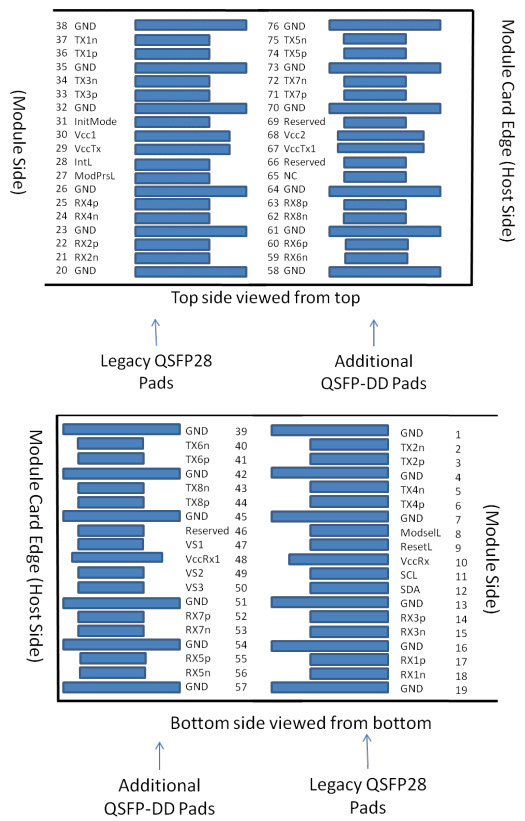

Figure 4. Electrical Pin-out Details


ModSelL Pin

The ModSelL is an input pin. When held low by the host, the module responds to 2-wire serial communication commands. The ModSelL allows the use of multiple QSFP modules on a single 2-wire interface bus. When the ModSelL is “High”, the module will not respond to any 2-wire interface communication from the host. ModSelL has an internal pull-up in the module.


ResetL Pin

Reset. LPMode_Reset has an internal pull-up in the module. A low level on the ResetL pin for longer than the minimum pulse length (t_Reset_init) initiates a complete module reset, returning all user module settings to their default state. Module Reset Assert Time (t_init) starts on the rising edge after the low level on the ResetL pin is released. During the execution of a reset (t_init) the host shall disregard all status bits until the module indicates a completion of the reset interrupt. The module indicates this by posting an IntL signal with

the Data_Not_Ready bit negated. Note that on power up (including hot ion) the module will post this completion of reset interrupt without requiring a reset.


LPMode Pin

QSFP28 SR4 operate in the low power mode (less than 1.5 W power consumption)

This pin active high will decrease power consumption to less than 1W.


ModPrsL Pin

ModPrsL is pulled up to Vcc on the host board and grounded in the module. The ModPrsL is asserted “Low”

when the module is ed and deasserted “High” when the module is physically absent from the host connector.


IntL Pin

IntL is an output pin. When “Low”, it indicates a possible module operational fault or a status critical to the

host system. The host identifies the source of the interrupt by using the 2-wire serial interface. The IntL pin is

an open collector output and must be pulled up to Vcc on the host board.


Power Supply Filtering (100G QSFP28 SR4)

The host board should use the power supply filtering shown in Figure5.

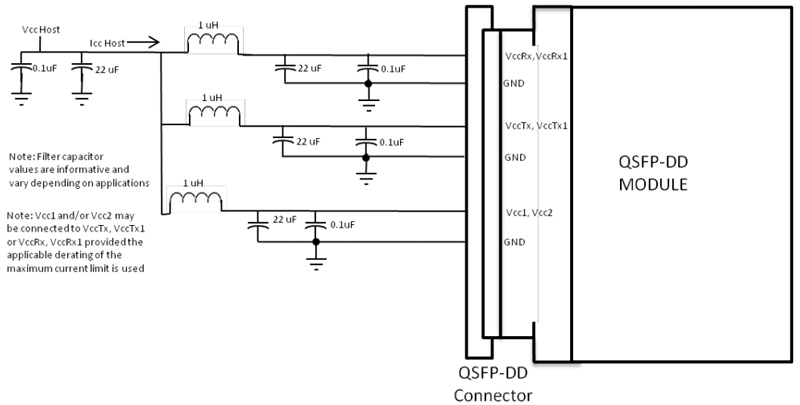

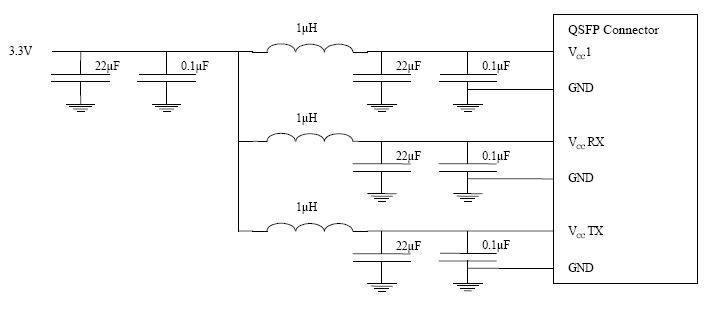

Power Supply Filtering of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 5. Host Board Power Supply Filtering


Memory Map (100G QSFP28 SR4)

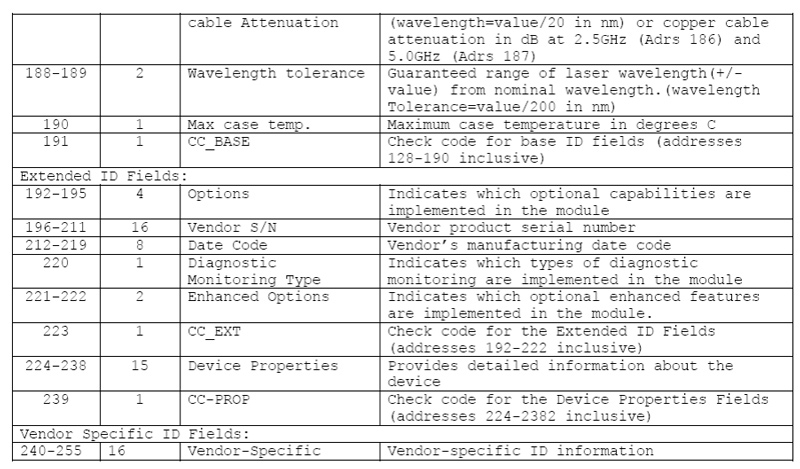

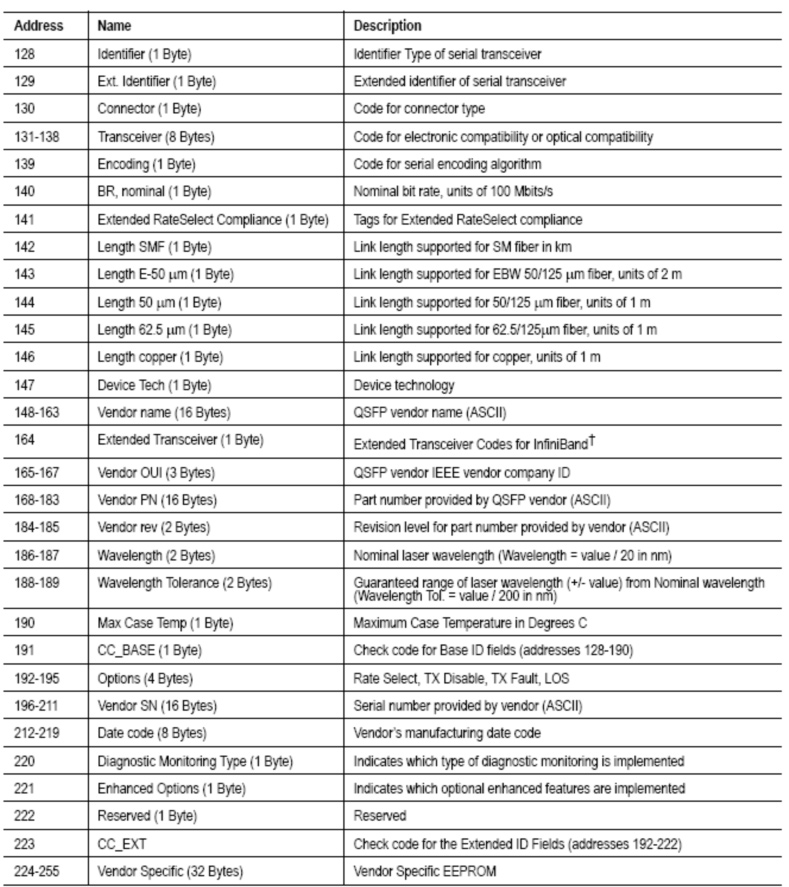

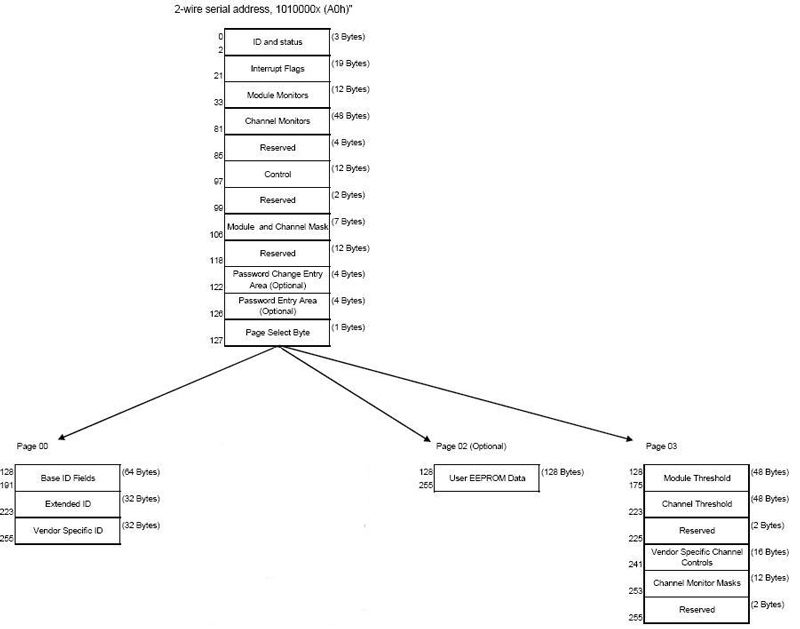

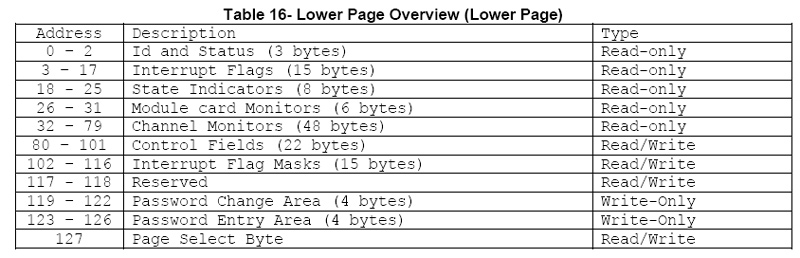

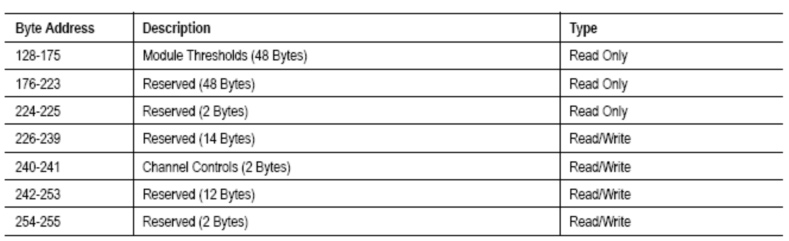

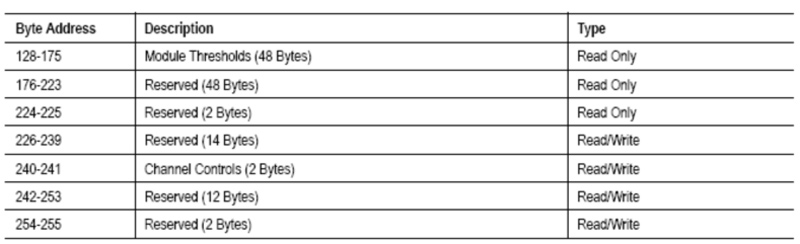

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 5. Host Board Power Supply Filtering

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 6. Low Memory Map

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 7. Page 03 Memory Map

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4able.jpg

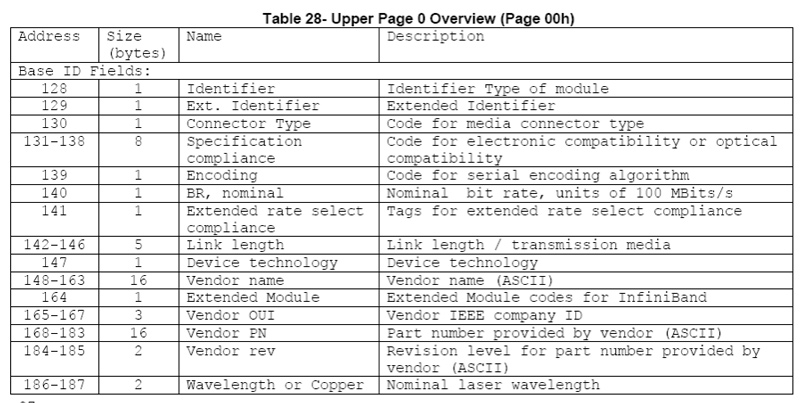

Figure 8. Page 00 Memory Map


Page02 is User EEPROM and its format decided by user.

The detail deion of low memory and page00.page03 upper memory please see SFF-8436 document.

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 9. Electrical Pin-out Details


ModSelL Pin

The ModSelL is an input signal that must be pulled to Vcc in the QSFP-DD module. When held low by the host, the module responds to 2-wire serial communication commands. The ModSelL allows the use of multiple QSFP-DD modules on a single 2-wire interface bus. When ModSelL is “High”, the module shall not respond to or acknowledge any 2-wire interface communication from the host.


ResetL Pin

The ResetL signal shall be pulled to Vcc in the module. A low level on the ResetL signal for longer than the minimum pulse length (t_Reset_init) initiates a complete module reset, returning all user module settings to their default state.


InitMode Pin

InitMode is an input signal. The InitMode signal must be pulled up to Vcc in the QSFP-DD module (see Table 2). The InitMode signal allows the host to define whether the QSFP-DD module will initialize under host software control (InitMode asserted High) or module hardware control (InitMode deasserted Low). Under host software control, the module shall remain in Low Power Mode until software enables the transition to High Power Mode, as defined in the QSFP-DD Management Interface Specification. Under hardware control (InitMode de-asserted Low), the module may immediately transition to High Power Mode after the management interface is initialized. The host shall not change the state of this signal while the module is present. In legacy QSFP applications, this signal is named LPMode. See SFF-8679 for LPMode signal deion.


ModPrsL Pin

ModPrsL must be pulled up to Vcc Host on the host board and pulled low in the module. The ModPrsL is asserted “Low” when the module is ed. The ModPrsL is deasserted “High” when the module is physically absent from the host connector due to the pull up resistor on the host board.


IntL Pin

IntL is an output signal. The IntL signal is an open collector output and must be pulled to Vcc Host on the host board (see Table 2). When the IntL signal is asserted Low it indicates a change in module state, a possible module operational fault or a status critical to the host system. The host identifies the source of the interrupt using the 2-wire serial interface. The IntL signal is deasserted “High” after all set interrupt flags are read..


Power Supply Filtering (200G QSFP DD SR8)

The host board should use the power supply filtering shown in Figure 10.

Power Supply Filtering of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 10. Host Board Power Supply Filtering


Memory Map (200G QSFP DD SR8)

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

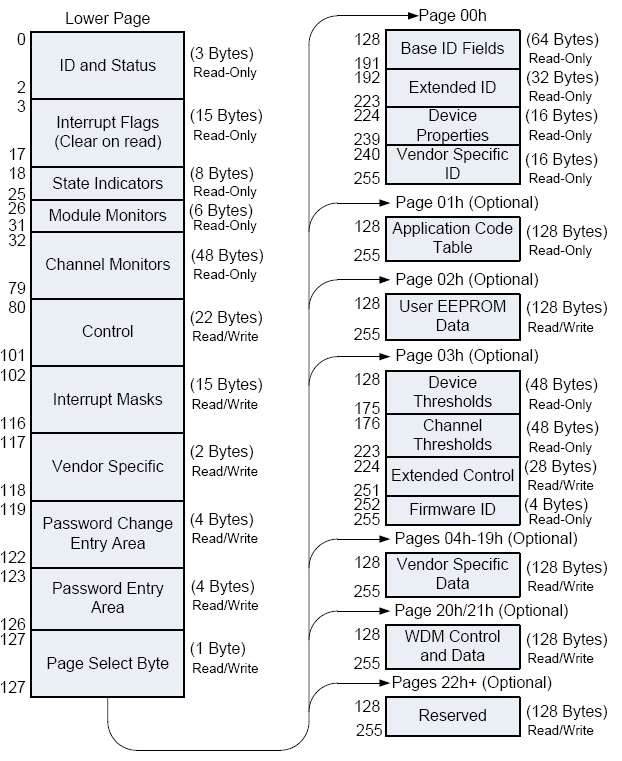

Figure 11. QSFP DD Memory Map

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 12. Low Memory Map


Figure 13. Page 03 Memory Map

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Memory Map of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

Figure 14. Page 00 Memory Map


Page02 is User EEPROM and its format decided by user.

The detail deion of low memory and Page 00.Page 03 upper memory please see SFF-8436 document.


Outline Drawing

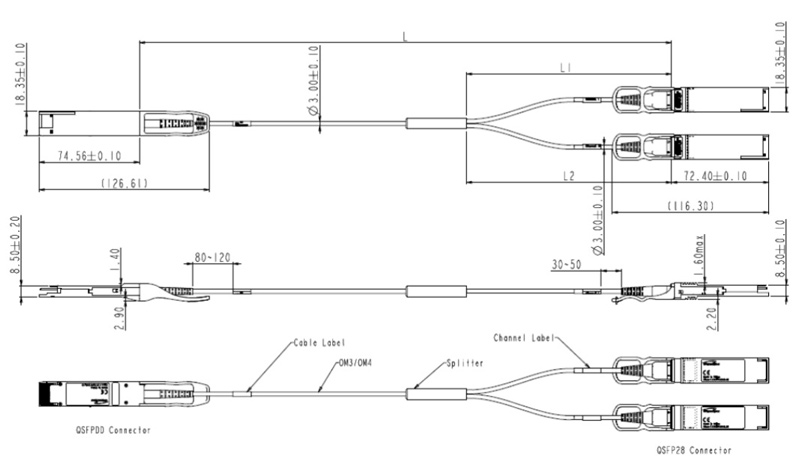

 Outline Drawing of Active Optical Cable 200G QSFP-DD SR8 to 2x100GBASE QSFP28 SR4

How Can We Help You Today
Lastest News & Blog about Lanbras
OFC 2025 - Explore the Thriving and Ever
The 2025 Optical Fiber Communications Conference and Exhibition (OFC) is back to solidify its status as the premier global event for optical networking and communications. With over 13,500 expected re...
Mar 10, 2025
Learn More
MWC25 Barcelona - Where Technology and Commerce Converge
MWC Barcelona 2025 is the one time of year where everyone who’s anyone, in the world of connectivity, comes together under one roof. Tens of thousands of senior leaders from top global companies, int...
Feb 10, 2025
Learn More
INTERSEC DUBAI 2025
Intersec Dubai - The world’s leading trade fair for security, surveillance and fire protection.INTERSEC DUBAI 2025JAN 14–16 2025Dubai World Trade CenterIntersec will mark its 26th edition from 14–1...
Jan 05, 2025
Learn More
Follow us and the future of network.

Subscribe now, you can get over 100 valuable resources and white papers.

Follow us also can get the latest products and industry information in our members emails. Learn Details>>>

Lanao Communication Technology Limited.
Products and Solutions Inquiries
