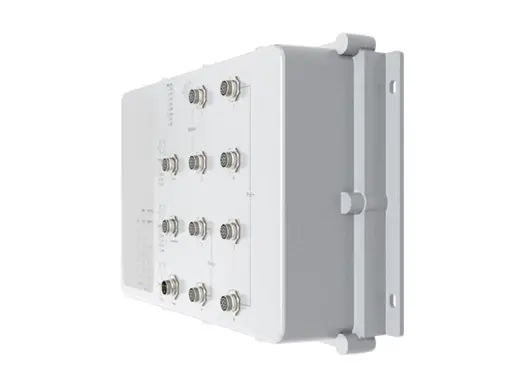

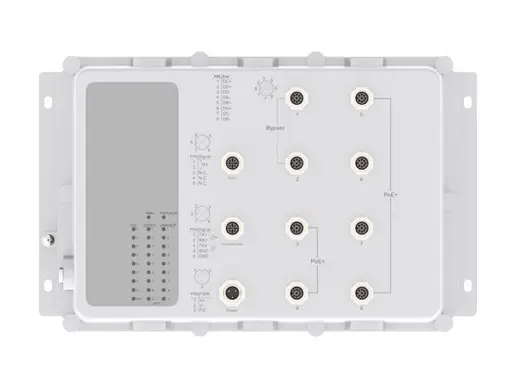

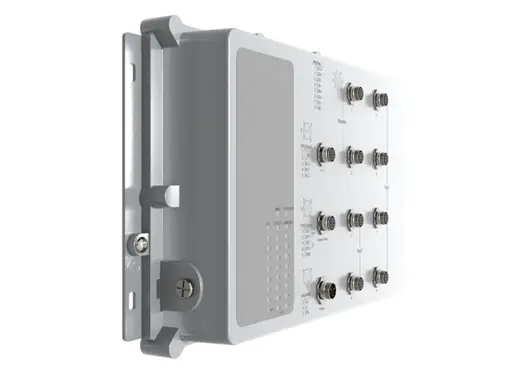

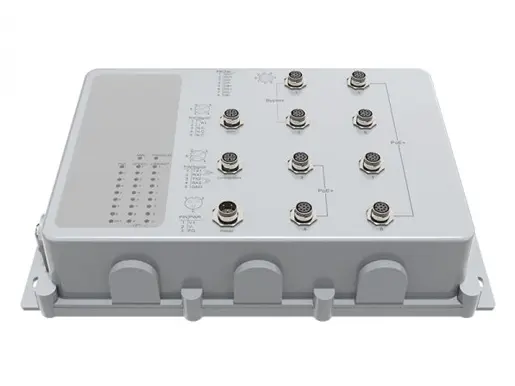

8x10/100/1000Base-T Industrial PoE Switch, Waterproof IP67

LA-ISW-G0008P-M12
LA-ISW-G0008P-M12 is an Industrial Switch IP67 Waterproof and Anti-vibration with M12. It is Designed for Marine, Railway, Bus, IIOT, Automation & ITS Application.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-ISW-G0008P-M12 is an Industrial Switch IP67 Waterproof and Anti-vibration with M12. It is Designed for Marine, Railway, Bus, IIOT, Automation & ITS Application. This is a 8port 10/100/1000Base-T Industrial PoE Switch. Through the fan-less heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

Provider Mode Ports
Fixed port8*10/100/1000Base-T, M12 connector
Power interfaceM16 connector
Alarm portM12 connector
LED IndicatorsPWR, PoE power supply indicator, ALM, Interface status indicator
Cable type & Transmission distance
Twisted-pair0-100m(CAT5e, CAT6)
Monomode optical fiber/
Multimode optical fiber/
Network Topology
Ring topologyUnsupported
Star topologySupport
Bus topologySupport
Tree TopologySupport
Electrical Specifications
Input voltageDC48~58V(PoE)
Total Power consumptionTotal PoE <186W
PoE Support
PoE port3~8
PoE Protocol802.3af,802.3at
Pin assignment1,2,3,6
PoE modeStandard mode
Layer 2 Switching
Switching capacity26G
Packet forwarding rate19.34Mpps
MAC address table16K
Buffer2M
Forwarding delay<5us
MDX/MIDXSupport
Jumbo FrameSupport 10K Bytes
BypassCopper port 1~2 support
WatchdogSupport
Environment
Operating temperature-40℃~+75℃
The device is tested for 4 hours at temperatures in 85℃
Storage temperature-40℃~+85℃
Relative humidity5%~95% non-condensing
Thermal methodsFan-less, natural cooling
MTBF100,000 hours
Mechanical Dimensions
Product size287X182X65.7mm
Installation methodDIN rail
Weight1.2KG around
EMC & INGRESS PROTECTION
IP levelIP67
Surge protection of PowerIEC 61000-4-5 Level X (6KV/6KV)(8/20us)
Surge protection of Ethernet portIEC 61000-4-5 Level 4 (4KV/4KV)(10/700us)
RSIEC 61000-4-3 Level 3(10V/m)
EFIIEC 61000-4-4 Level 3(1V/2V)
CSIEC 61000-4-6 Level 3(10V/m)
PFMFIEC 61000-4-8 Level 4(30A/m)
DIPIEC 61000-4-11 Level 3 (10V)
ESDIEC 61000-4-2 Level 4(8K/15K)
Free fall0.5m
Authentication
AuthenticationCE, FCC, RoHS
Accessories
AccessoriesDevice, Terminals, Specification, Certificate, power adapter(optional)


  • Input Voltage: DC48-58V(PoE)

  • Operating Temperature: -40℃ ~ +75℃

  • Shell: IP67 protection, fan-less design

  • Test Report: RoHS, FCC, CE

  • Anti-static: 8KV-15KV

  • MTBF: 100000 Hours

Ordering Information
LA-ISW-G0008P-M12Industrial Waterproof PoE Switch, 8*10/100/1000Base-T with M12


Date Version Description Download
2025-03-12 Datasheet_LA-ISW-G0008P-M12_8GE Industrial Waterproof IP67 PoE Switch
