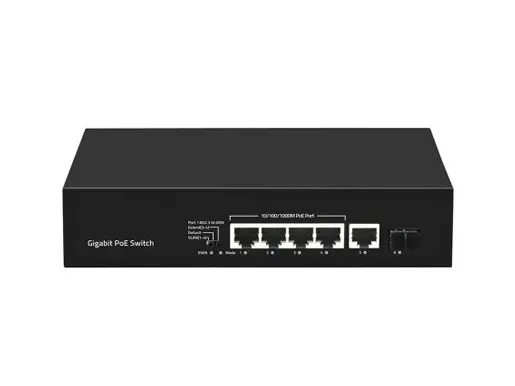

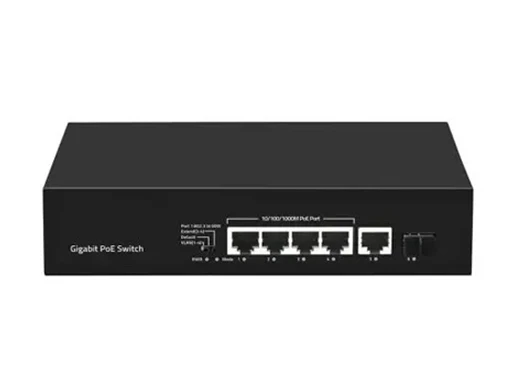

6 Port Gigabit AI PoE BT Switch

LA-SWAI-G010104PB-120W
This 6 Port Gigabit AI PoE BT Switch, using high-quality high-speed network IC and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standard.
Overview
Specifications
Connectivity Solutions
Models
Resources

This 6 Port Gigabit AI PoE BT Switch, using high-quality high-speed network IC and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standard.  This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.

Product Name6 Port Gigabit AI PoE BT Switch, 52V/2.3A
ModelLA-SWAI-G010104PB-120W
PowerInput: AC 100-240V, 50/60Hz
Ethernet4*10/100/1000M PoE Port
1*1000M RJ45 Port
1*Gigabit SFP Uplink Port
Switching Capacity12Gbps
Throughput8.928Mpps
Packet Buffer1Mb
MAC Address2K
Jumbo Frame9216bytes
Transfer ModeStore and forward
MTBF100000 hour
Network ProtocolIEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3z (1000Base-FX)
IEEE802.3x (Flow control)
PoE ProtocolIEEE802.3af (15.4W)
IEEE802.3at (30W)
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium10Base-T: Cat3, 4, 5 or above UTP (≤100m)
100Base-TX: Cat5 or above UTP (≤100m)
1000Base-TX: Cat5 or above UTP (≤100m)
Optical MediaMultimode fiber: 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Security CertificateCE, FCC, RoHS
Working EnvironmentWorking Temperature: -20~50°C
Storage Temperature: -40~85°C
Working Humidity: 0%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
Working Height: Maximum10,000 feet
Storage Height: Maximum 10,000 feet
PWR (Power Supply)Lighting: Powered
Un-Light: No Power
Mode (DIP)Lighting: VLAN
Un-Light: Default
Flashing: Extend
1-6 Green (Link&Data)Lighting: Connecting
Flashing: Data Transmit
Un-Light: Disconnect
DIP SwitchVLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters
Extend: Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Structure SizeProduct Dimension (L*W*H): 200*118*44mm
Package Dimension (L*W*H): 245*190*60mm
N.W: 0.6kg
G.W: 0.9kg
Packing InfoCarton MEAS: 505*320*402mm
Packing Qty: 20units
Packing Weight: 19KG
Power VoltageInput Voltage: AC 100-240 V
Power supply: 52V/2.3A
Package ListSwitch 1pc
Power cord 1pc
User manual 1pc
Certification 1pc


  • Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

  • Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.

  • Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.

  • Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.

Ordering Information
LA-SWAI-G010104PB-120W6 Port Gigabit AI PoE BT Switch, 52V/2.3A


Date Version Description Download
2025-03-13 LA-SWAI-G010104PB-120W
