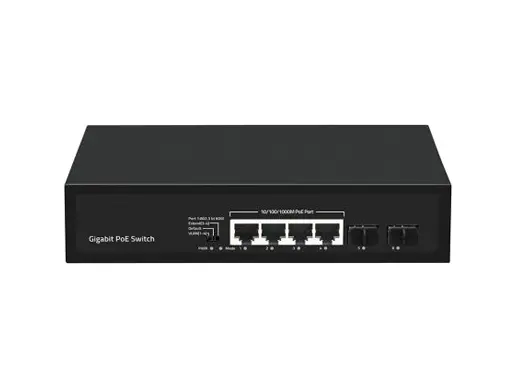

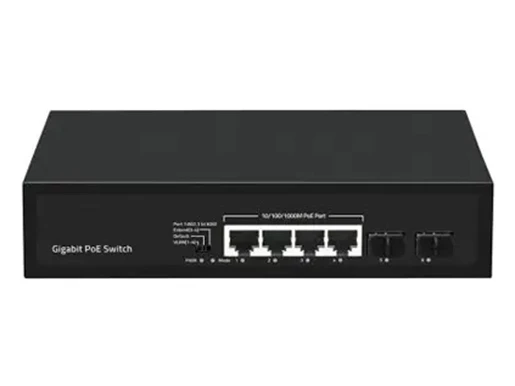

6 Port Gigabit AI PoE BT Switch

LA-SWAI-G0204PB-120W
This 6 Port Gigabit AI PoE BT Switch, using high-quality high-speed network IC and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standard.
Overview
Specifications
Connectivity Solutions
Models
Resources

This 6 Port Gigabit AI PoE BT Switch, using high-quality high-speed network IC and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standard.  This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.

Product Name

6 Port Gigabit AI PoE BT Switch, 52V/2.3A

Model

LA-SWAI-G0204PB-120W

Power

Input: AC 100-240V, 50/60Hz

Ethernet

4*10/100/1000M PoE Port

2* Gigabit SFP Uplink Port

Switching Capacity

12Gbps

Throughput

8.928Mpps

Packet Buffer

1Mb

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000 hour

Network Protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3z (1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T: Cat3, 4, 5 or above UTP (≤100m)

100Base-TX: Cat5 or above UTP (≤100m)

1000Base-TX: Cat5 or above UTP (≤100m)

Optical Media

Multimode fiber: 50/125, 62.5/125, 100/140μm

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Security Certificate

CE, FCC, RoHS

Working Environment

Working Temperature: -20~50°C

Storage Temperature: -40~85°C

Working Humidity: 0%~90%, non-condensing

Storage Temperature: 5%~90%, non-condensing

Working Height: Maximum10,000 feet

Storage Height: Maximum 10,000 feet

PWR (Power Supply)

Lighting: Powered

Un-Light: No Power

Mode (DIP)

Lighting: VLAN

Un-Light: Default

Flashing: Extend

1-6 Green (Link&Data)

Lighting: Connecting

Flashing: Data Transmit

Un-Light: Disconnect

DIP Switch

VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

Extend: Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Structure Size

Product Dimension (L*W*H): 200*118*44mm

Package Dimension (L*W*H): 245*190*60mm

N.W: 0.6kg

G.W: 0.9kg

Packing Info

Carton MEAS: 505*320*402mm

Packing Qty: 20units

Packing Weight: 19KG

Power Voltage

Input Voltage: AC 100-240 V

Power supply: 52V/2.3A

Package List

Switch 1pc

Power cord 1pc

User manual 1pc

Certification 1pc


  • Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.

  • Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.

  • Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.

  • Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.

Ordering Information
LA-SWAI-G0204PB-120W6Port Gigabit AI PoE BT Switch, 52V/2.3A


Date Version Description Download
2025-03-13 LA-SWAI-G0204PB-120W
