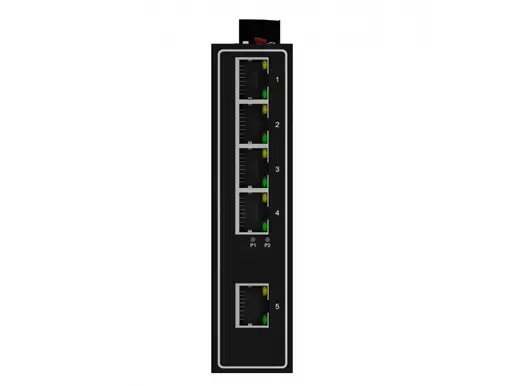

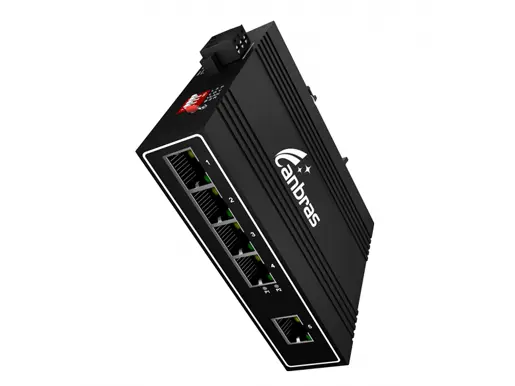

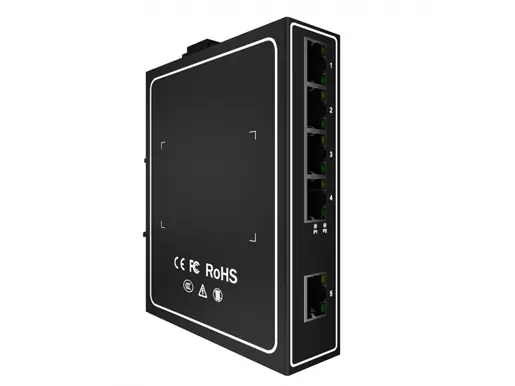

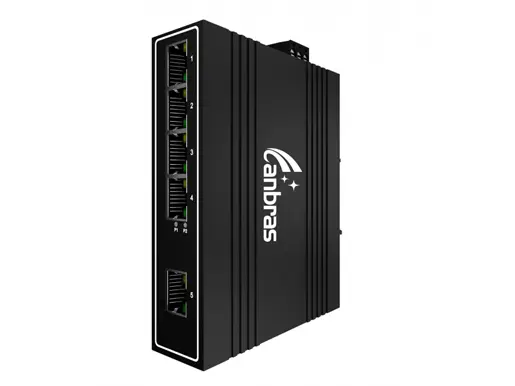

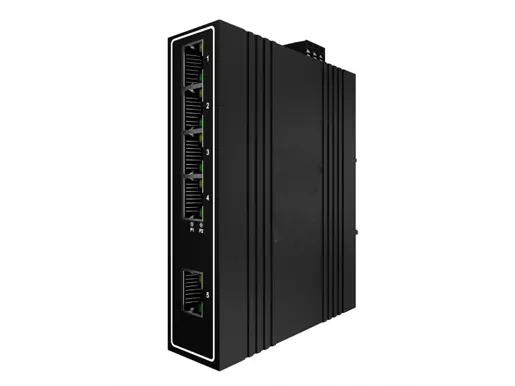

Name: 5x10/100Base-T Unmanaged Industrial Switch (PoE Optional)
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

This device 5*10/100Base-T Industrial Ethernet Switch, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.

The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

PART NO	IDSAIR-0005F-Z4
Provider Mode Ports

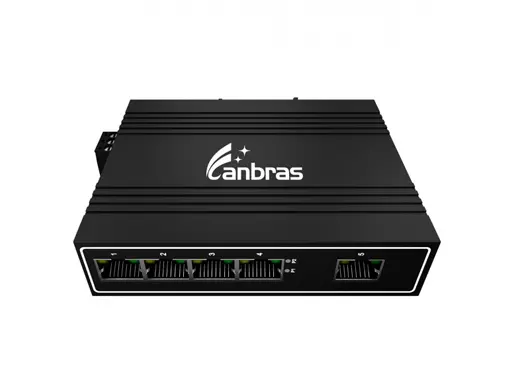

Fixed Port	5*10/100Base-T
Power Interface	Phoenix terminal, dual power supply
LED Indicators	P1/P2, OPT

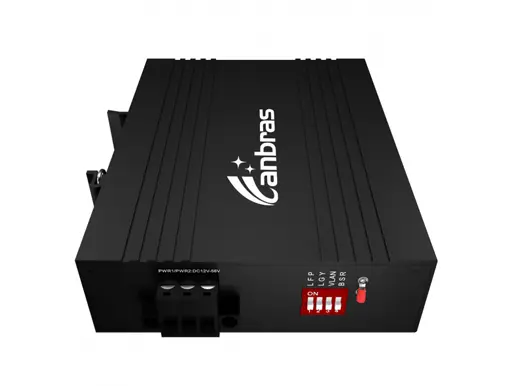

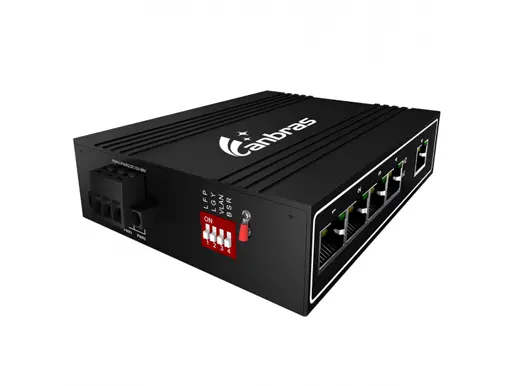

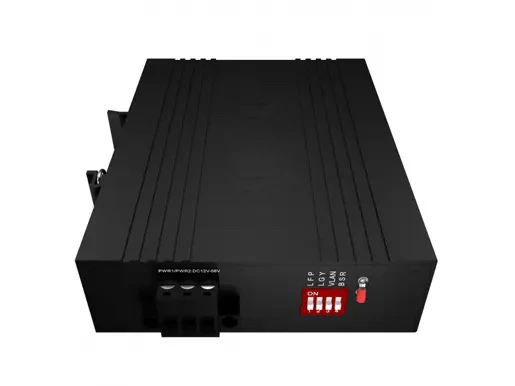

DIP Switch
1 LFP	Reserve
2 LGY	LEGACY (Standard & Non-standard PoE)
3 VLAN	Port Isolation
4 BSR	Storm Control Configuration
Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode Optical Fiber	/
Multimode Optical Fiber	/
Network Topology
Ring Topology	Unsupported
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	DC12-58V
Total Power Consumption	<5W
Layer 2 Switching
Switching Capacity	1G
Packet Forwarding Rate	0.744Mpps
MAC Address Table	2K
Buffer	768K
Forwarding Delay	<5us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	2K bytes
Storm Control	Support
Port Isolation	Support
Remote PD Reset	Unsupported
Environment
Operating Temperature	-40℃~75℃
Storage Temperature	-40℃~75℃
Relative Humidity	10%~90% （non-condensing）
Thermal Methods	Fanless, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	9111831mm (W×H×D)

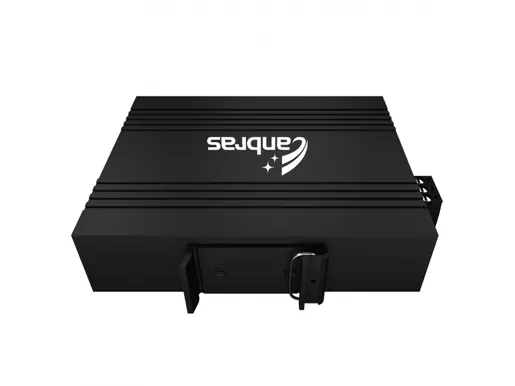

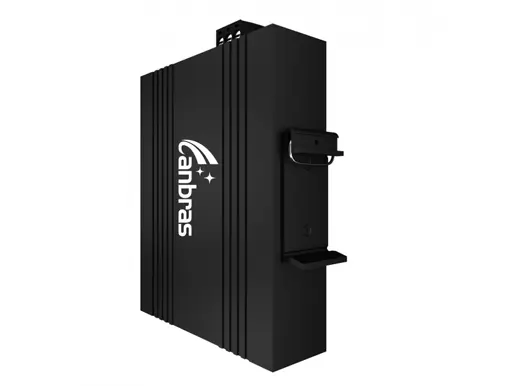

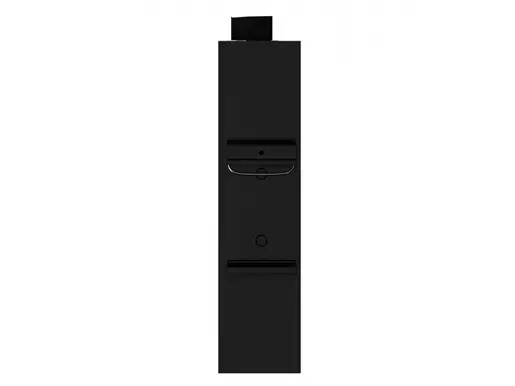

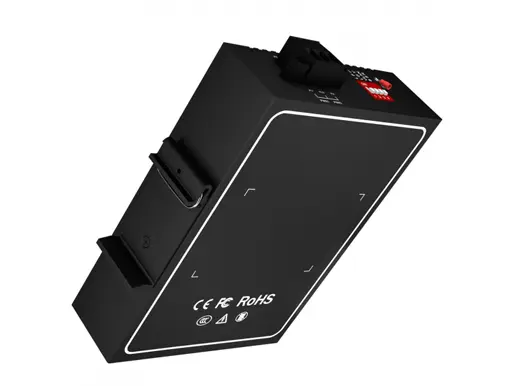

Installation Method	DIN-rail
Weight	0.36KG around
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
RS	IEC 61000-4-3 Level 3（10V/m）
EFI	IEC 61000-4-4 Level 3（1V/2V）
CS	IEC 61000-4-6 Level 3（10V/m）
PFMF	IEC 61000-4-8 Level 4（30A/m）
DIP	IEC 61000-4-11 Level 3（10V）
EMI	CLASS A
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free Fall	0.5m
Authentication
Authentication	CCC/CE/FCC/RoHS

Ordering Information
IDSAIR-0005F-Z4	5*10/100M RJ45 Port, PoE support 802.3af & at

Date	Version	Description			Download
2025-03-12		5*10/100Base-T Unmanaged Industrial Switch (PoE Optional)
