5Port 10/100M Fast Ethernet Switch

LA-SW-PF0005
5Port 10/100M Fast Ethernet Switch.
Overview
Specifications
Connectivity Solutions
Models
Resources

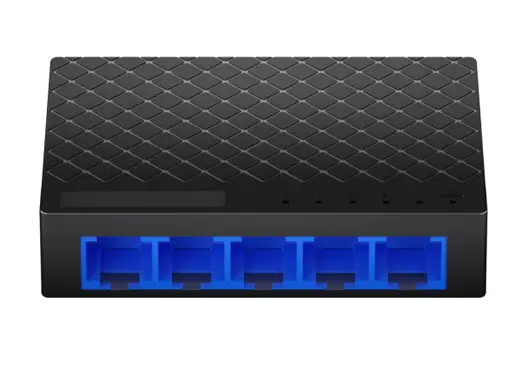

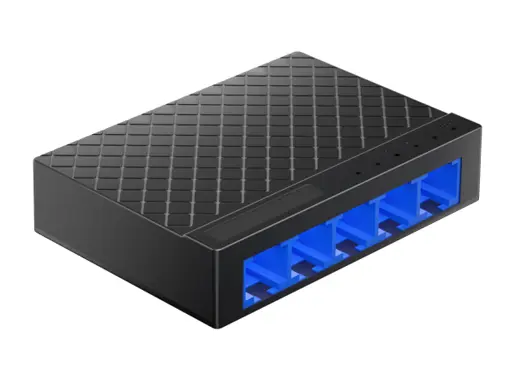

LA-SW-PF0005 is a desktop plastic case 5Port 10/100M Fast Ethernet Switch, adopts storage and forwarding, fanless design, support power indicator and network interface indicator. Plug and play, small and exquisite appearance, suitable for various home environments and enterprise use environments.

Provider Mode Ports
Fixed Port5*10/100Base-T, RJ45
Power interfaceDC terminal
LED Indicators
PWRPower indicator
Link/ActLink status indicator
Cable Type & Transmission Distance
Twisted-pair0-100m (CAT5e,CAT6)
Electrical Specifications
Input voltageDC 5V
Total Power consumptionFull load ≤3W
Layer 2 Switching
Switching capacity1G
Packet forwarding rate0.744Mpps
MAC address table2K
Buffer384K
Forwarding delay<5us
MDX/MIDXSupport
Jumbo FrameSupport 2K bytes
Environment
Operating temperature-10℃~55℃
Storage temperature-40℃~85℃
Relative humidity10%~95% (non-condensing)
Thermal methodsFanless design, natural heat dissipation
MTBF100,000 hours

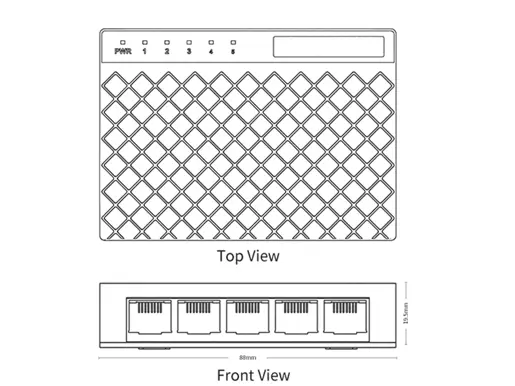

Mechanical Dimensions
Product size88*62.5*19.5mm
Installation MethodDesktop
Net Weight0.06KG around
Accessories
AccessoriesDevice, Qualified Certificate, User Manual, Power Adapter


  • Switching capacity: 1G

  • MAC address: 2K

  • Buffer: 384K

  • Jumbo frame: 2K bytes

  • Power Input: DC5V

  • Working temperature: -10℃ ~ 55℃

  • Shell: Plastic, fanless design

  • MTBF: 100000 hours
