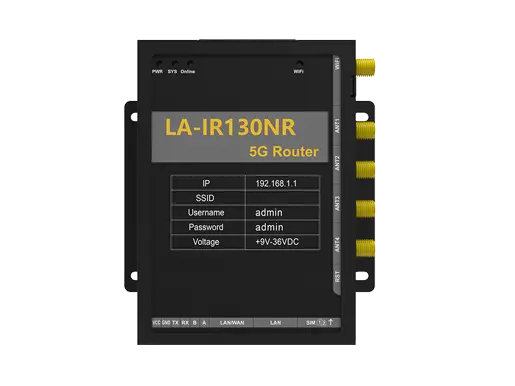

5G Industrial Router 1x1000M ETH WAN/LAN, 1x1000M ETH LAN 2 Micro-SIM slot & 2.4GHz/5.8GHz WIFI SuppLA-

IR130NR
LA-IR130NR is a wireless router for the Internet of Things, which uses public 3G/4G/5G networks to provide users with wireless long-distance big data transmission functions.
Overview
Specifications
Connectivity Solutions
Models
Resources

LA-IR130NR is a wireless router for the Internet of Things, which uses public 3G/4G/5G networks to provide users with wireless long-distance big data transmission functions. Provide 1xRS232,1xRS485,1xLAN and 1xWAN/LAN port to achieve transparent data transmission and routing function. The product has been widely used in the M2M industry in the IoT industry chain, such as smart grid, smart transportation, smart home, supply chain automation, industrial automation, and other fields.


Industrial-grade Design

● High-performance industrial-grade wireless module

● High-performance industrial-grade 32-bit communication processor

● Using Metal shell, protection grade IP30.

● Wide power input DC9-36V


Stability & Reliability

● WDT Watchdog design to ensure system stability

● Adopt a complete anti-drop mechanism to ensure that the data terminal is always online

● Built-in 1.5KV electromagnetic isolation protection for Ethernet interface

● RS232/RS485 interface power and data isolation, in line with CSA, UL and IEC standards

● SIM/UIM card interface built-in 15KV ESD protection

● Built-in reverse phase protection and over voltage protection for power interface

Standard & Convenience

● Standard RS232, RS485, Ethernet Interface

● Provide standard wired WAN port (support standard PPPOE protocol)

● Plug and Play

● Multiple working mode options Configuration and maintenance interface

● Support DIN rail and wall-mounting installation

● Support local and remote WEB mode or CLI mode


High Performance

● Multiple WAN connection methods, include static IP, DHCP, PPPOE, DHCP-4G/5G

● 3G/4G/5G and wired WAN dual link backup

● VPN client PPTP/L2TP/IPSEC

● VPN sever PPTP/L2TP/IPSEC

● Remote management SYSLOG/SNMP/TELNET/SSH/HTTPS

● Support local upgrade and remote upgrade

● Import and export configuration files

● NTP/Built in RTC

● DDNS

● Support VLAN, MAC address clone and PPPOE server

● WIFI Support 802.11b/g/n/ac. Support AP/AP Client/Bridge mode

● WIFI Support WEP, WPA, WPA2 and other encryption methods

● Support Private APN SIM card

● Support APN/VPDN

● Support DHCP server and DHCP client, NAT, DMZ, QOS

● Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols

● Support SPI firewall, VPN pass through, ACL, URL filter

● Support IPV6/IPV4, 5G LAN

● Support lock frequency, lock resident

● Support EOIP, bridge mode, VxLAN, virtual IP, GRETAP, etc.

● Support traffic statistics, VLAN management, and VLAN division

ProductStandard Version5G RedCap Version
Cellular Specification
ModuleIndustrial grade wireless module
Frequency5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/5G NR: N1/N3/N5/N8/N28/N41/N78/N79
n66/n71/n77/n78/n79LTE-FDD: B1/B3/B5/B8
LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/LTE-TDD: B34/B38/B39/B40/B41
B8/B12(17)/B13/B14/B20/B25/B26/B28/
B29/ B30/B38/B39/B40/B41/B42/B43/
B46/ B48/B71
Bandwidth5G NR: DL 3.4Gbps, UL 350MbpsDownlink: 226Mbps
LTE Cat20: DL 2.0Gbps, UL 150MbpsUplink: 120Mbps
HSPA+: DL 42Mbps, UL 5.76Mbps
Power< 23dBm
Sensitivity<-97dBm
Wi-Fi Specification
ModuleIEEE802.11b/g/n, 2.4G, AP mode
IEEE802.11ac, 5.8G, AP mode
FrequencyIEEE802.11b/g: 54Mbps
IEEE802.11n: 150Mbps
IEEE802.11ac: 433Mbps
SecurityWEP, WPA, WPA2, WPS
Power26dBm (11b), 21dBm (11ac/MCS7/HT40), 20dBm (11ac/MCS9/HT80)
Sensitive<-72dBm@54Mbps
Hardware System
CPUIndustrial-grade 32-bit communication processor
Flash32MB
DDR3512MB
Interface
WAN1x10/100/1000M Ethernet (RJ45), Auto MDI/MDIX,
Built-in 1.5KV electromagnetic isolation protection
Remarks: Can be used as LAN port
LAN1x10/100/1000M Ethernet (RJ45), Auto MDI/MDIX,
Built-in 1.5KV electromagnetic isolation protection
Console1xRS232/RS485, Built in 15KV ESD electromagnetic isolation protection
Data bit: 5, 6, 7, 8
Stop bit: 1, 1.5 (Optional), 2
Check: NONE, ODD, EVEN, SPACE (Optional) and MARK (Optional)
Baud rate: 2400~115200bits/s
Indicators"WIFI", "Online", "PWR", "SYS"
AntennaCellular: 4 standard SMA female antenna interfaces, acteristic impedance 50 ohmsCellular: 2 standard SMA female antenna interfaces, acteristic impedance 50 ohms WIFI: 1 standard SMA male antenna interfaces, acteristic impedance 50 ohms
WIFI: 1 standard SMA male antenna interfaces, acteristic impedance 50 ohms
SIM/UIMStandard drawer type user card interface
Support 1.8V/3V SIM/UIM card
Built-in 15KV ESD protection
Support Micro-SIM*2 card and eSIM
PowerTerminal power socket
Reset ButtonThrough this button, the parameter configuration can be restored to the factory
Power Supply
StandardDC12V/1.5A
RangeDC9-36V
Consumption<1.2A(12V)
Physical Properties
ShellMetal shell, IP30
Size106x76x23.5mm (Does not include antenna and mounting parts)
Weight285g
Others
Operating Temperature-35~+75°C (-31~+167°F)
Storage Temperature-40~+85°C (-40~+185°F)
Relative Humidity95% (No condensation)
