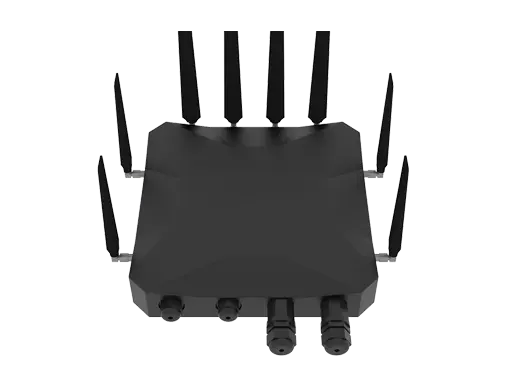

LA-IR200NR is a 5G industrial CPE that uses public 3G/4G/5G networks to provide users with wireless long-distance big data transmission functions. The product uses high-performance industrial-grade 32-bit communication processors and industrial-grade wireless modules, with embedded real-time operating system as the software support platform, and provides 1 RS232 (or RS485), 1 Ethernet LAN, and1 Ethernet WAN, 1 optical fiber interface and support WIFI function, can connect serial device, Ethernet device and WIFI device at the same time, realize data transparent transmission and routing function.This product has been widely used in the M2M industry in the Internet of Things industry chain, such as smart grid, smart transportation supply chain automation public safety, environmental protection, meteorology, digital medical treatment remote sensing survey, military, forestry, water, coal, petrochemical and other fields.
Industrial-grade Design
● High-performance industrial-grade wireless module
● High-performance industrial-grade 32-bit communication processor
● Metal shell, protection grade IP68, metal housing and system safety isolation
● Wide power input DC9-36V
Stability & Reliability
● WDT Watchdog design to ensure system stability
● Adopt a complete anti-drop mechanism to ensure that the data terminal is always online
● Built-in 1.5KV electromagnetic isolation protection for Ethernet interface
● RS232/RS485 interface power and data isolation, in line with CSA, UL and IEC standards
● SIM/UIM card interface built-in 15KV ESD protection
● Built-in reverse phase protection and over voltage protection for power interface
Standard & Convenience
● Standard RS232, RS485, Ethernet and Wi-Fi Interface
● Standard WAN port, support PPPOE protocol, which can be directly connected to ADSL equipment
● Intelligent data terminal, can enter data transmission state after power on
● Easy to use, flexible, multiple working mode options
● Convenient system configuration and maintenance interface (WEB /CLl)
● Support wall-mounted, pole-mounted installation
High Performance
● Multiple WAN connection methods, include Static IP/DHCP/PPPOE/DHCP-4G/5G
● 3G/4G/5G and wired WAN dual link backup(optional)
● VPN Tunnel: PPTP/L2TP/IPSEC/OPENVPN/GRE
● Remote management: SYSLOG, SNMP, TELNET, SSH, HTTPS
● Support firmware local upgrade and remote upgrade
● Support import and export configuration files
● NTP and Built-in RTC
● MAC address clone
● 2.4G WIFI support 802.11b/g/n,5.8G WIFI support 802.11ac
● Support WIFI AP mode, Client mode, bridge mode(optional)
● WIFI support WEP, WPA, WPA2 encryption
● Support multiple online and offline trigger modes
● Support APN/Private APN
● Support DHCP server/client, DHCP binding MAC, DDNS, NAT, DMZ, QOS, Traffic statistics, real-time display of data transmission rate
● Support TCP/IP, UDP, FTP, HTTP and other network protocols
● Support SP| firewall, access control, URL filter
● Support IPV6/IPV4
Cellular Specification | |
Module | Industrial grade wireless module |
Frequency | 5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 |
LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/ | |
B29/ B30/B38/B39/B40/B41/B42/B43/B46/ B48/B71 | |
Remarks: different modules support different network standards | |
Bandwidth | 5G NR: DL 3.4Gbps, UL 350Mbps |
LTE Cat20: DL 2.0Gbps, UL 150Mbps | |
HSPA+: DL 42Mbps, UL 5.76Mbps | |
Power | < 23dBm |
Sensitivity | <-97dBm |
Wi-Fi Specification | |
Module | IEEE802.11b/g/n, 2.4G, AP mode, Station mode (Optional) |
IEEE802.11ac, 5.8G, AP mode, Station mode (Optional) | |
Frequency | IEEE802.11b/g: 54Mbps |
IEEE802.11n: 300Mbps | |
IEEE802.11ac: 866Mbps | |
Security | WEP, WPA, WPA2 encryption, WPS (Optional) |
Power | 26dBm (11b), 21dBm (11ac/MCS7/HT40), 20dBm (11ac/MCS9/HT80) |
Sensitive | <-72dBm@54Mbps |
Hardware System | |
CPU | Industrial-grade 32-bit communication processor |
Flash | Nor flash 16MB N flash 128MB |
DDR3 | 512MB |
Interface | |
WAN | 1x1000M ETH port (RJ45 waterproof), auto adapt MDI/MDIX, built in 1.5KV ESD |
LAN | 1x1000M ETH port (RJ45 waterproof), auto adapt MDI/MDIX, built in 1.5KV ESD |
Optical Fiber | 1x1000M fiber interface (External all-plastic waterproof interface) |
Auto adapt MDl/MDlX, built in 1.5KV ESD | |
Console | 1xRS232/RS485 serial port (External all-plastic waterproof interface), Built in 15KV ESD |
Data bit: 5, 6, 7, 8 | |
Stop bit: 1, 1.5 (Optional), 2 | |
Check: NONE, ODD, EVEN, SPACE (Optional) and MARK (Optional) | |
Baud rate: 2400~115200bits/s | |
Indicators | "PWR", "SYS", "2.4G","5.8G", "Online", "Signal" |
Antenna | Cellular: 4 waterproof SMA female antenna, acteristic impedance 50 ohms |
WIFI: 4 waterproof SMA male antenna, acteristic impedance 50 ohms | |
SIM/UIM | Standard drawer type, 1.8V/3V SIM/UIM card, Built-in 15KV ESD protection |
Power | Terminal interface, built-in power reverse protection |
USB | USB2.0 (Built-in) |
Reset Button | Through this button, the parameter configuration can be restored to the factory |
Power Supply | |
Standard | DC12V/1.5A and Support POE (802.3af) power supply |
Range | DC9-36V |
Consumption | <1.2A(12V) |
Physical Properties | |
Shell | Metal shell, IP68 |
Size | 259x259x45mm (Does not include antenna and mounting parts) |
Weight | 2480g |
Others | |
Operating Temperature | -35~+75°C (-31~+167°F) |
Storage Temperature | -40~+85°C (-40~+185°F) |
Relative Humidity | 95% (No condensation) |
