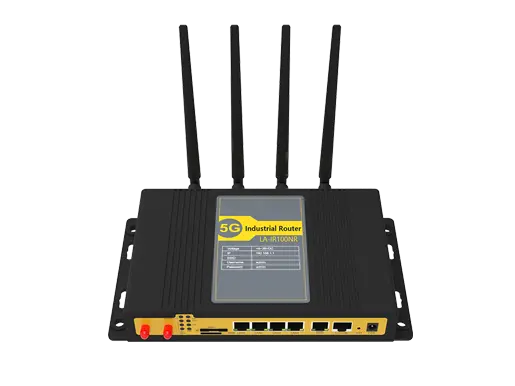

LA-IR100NR is a wireless communication router for the internet of Things (loT), it uses a high-performance industrial level 32-bit communication processor and wireless module, embedded with the real-time operating system as the software platform, and using 3G/4G/5G cellular network to provide users with wireless long-distance large data transmission function.
Industrial-grade Design
● High-performance industrial-grade wireless module
● High-performance industrial-grade 32-bit communication processor
● Metal shell, protection grade IP30. Metal housing and system safety isolation
● Wide power input DC9-36V
Stability & Reliability
● WDT Watchdog design to ensure system stability
● Adopt a complete anti-drop mechanism to ensure that the data terminal is always online
● Built-in 1.5KV electromagnetic isolation protection for Ethernet interface
● RS232/RS485 interface power and data isolation, in line with CSA, UL and IEC standards
● SIM/UIM card interface built-in 15KV ESD protection
● Built-in reverse phase protection and over voltage protection for power interface
Standard & Convenience
● Standard RS232, RS485, Ethernet and WIFI Interface
● Standard WAN port (support standard PPPOE protocol), which can be directly connected to ADSL equipment
● Intelligent data terminal, can enter data transmission state after power on
● Easy to use, flexible, multiple working mode options
● Convenient system configuration and maintenance interface (WEB/CLI)
● Support wall-mounted, pole-mounted installation
High Performance
● Multiple WAN connection methods, include static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE, DHCP-4G/5G
● 3G/4G/5G and wired WAN dual link backup(optional)
● VPN client PPTP/L2TP/IPSEC (only available in VPN version)
● VPN sever PPTP/L2TP/IPSEC (only available in VPN version)
● Remote management SYSLOG/SNMP/TELNET/SSH/HTTPS
● Support local upgrade and remote upgrade, Import and export configuration files
● NTP/Built in RTC
● MAC address clone
● WIFI support 802.11b/g/n/ac, support WIFI AP /AP Client/bridge mode etc. (optional)
● WIFI support WEP/WPA/WPA2 encryption
● Support multiple online and offline trigger modes
● Support APN/VPDN
● Support DHCP server/DHCP client/DHCP binding MAC/DDNS/NAT/DMZ/QOS
● Support TCP/IP/UDP/FTP (Optional)/HTTP and other network protocols
● Support SPI firewall
● Support URL filter
● Support IPV6/IPV4
Cellular Specification | |
Module | Industrial grade wireless module |
Frequency | 5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 |
LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/B29/ | |
B30/B38/B39/B40/B 41/B42/B43/ B46/ B48/B71 | |
Bandwidth | 5G NR: DL 3.4Gbps, UL 350Mbps |
LTE Cat20: DL 2.0Gbps, UL 150Mbps | |
HSPA+: DL 42Mbps, UL 5.76Mbps | |
Power | < 23dBm |
Sensitivity | <-97dBm |
Wi-Fi Specification | |
Module | IEEE802.11b/g/n, 2.4G, AP mode, Station mode (Optional) |
IEEE802.11ac, 5.8G, AP mode, Station mode (Optional) | |
Frequency | IEEE802.11b/g: 54Mbps |
IEEE802.11n: 300Mbps | |
IEEE802.11ac: 866Mbps | |
Bandwidth | 2xDI, 1xDO |
Security | WEP, WPA, WPA2 encryption, WPS (Optional) |
Power | 26dBm (11b), 21dBm (11ac/MCS7/HT40), 20dBm (11ac/MCS9/HT80) |
Sensitivity | <-72dBm@54Mbps |
Hardware System | |
CPU | Industrial-grade 32-bit communication processor |
Flash | Nor flash 16MB N flash 128MB |
DDR3 | 512MB |
Interface | |
WAN | 1x1000M ETH port, auto adapt MDI/MDIX, built in 1.5KV ESD |
LAN | 4x1000M ETH port, auto adapt MDI/MDIX, built in 1.5KV ESD |
Console | 1 x RS232, Built in 15KV ESD |
Data bit: 5, 6, 7, 8 | |
Stop bit: 1, 1.5 (Optional), 2 | |
Check: NONE, ODD, EVEN, SPACE (Optional) and MARK (Optional) | |
Baud rate: 2400~115200bits/s | |
Indicators | "PWR", "SYS", "2.4G","5.8G", "Online", "Signal" |
Antenna | Cellular: 4xSMA female, acteristic impedance 50 ohms |
WIFI: 2xSMA male, acteristic impedance 50 ohms | |
SIM/UIM | Standard drawer type (2xSIM slot), 1.8V/3V SIM/UIM, 15KV ESD protection |
Power | 2.5mm DC interface built-in power reverse protection |
TF Card | Micro SD card interface |
Reset Button | Through this button, the parameter configuration can be restored to the factory |
Power Supply | |
Standard | DC12V/1.5A |
Range | DC9-36V |
Consumption | <1.2A(12V) |
Physical Properties | |
Shell | Metal shell, IP30 |
Size | 244x135.5x35.8 mm (Does not include antenna and mounting parts) |
Weight | 980g |
Others | |
Operating Temperature | -35~+75°C (-31~+167°F) |
Storage Temperature | -40~+85°C (-40~+185°F) |
Relative Humidity | 95% (No condensation) |
