This product is a parallel 400Gb/s Quad Small Form Factor Pluggable--double density (QSFP-DD) optical module. It provides increased port density and total system cost savings. The QSFP-DD full- duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber. An optical fiber cable with an MTP/MPO-16 connector can be plugged into the QSFP-DD SR8 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP-DD MSA-compliant edge type connector. The central wavelengths of all the 8 parallel lanes are 850nm. It contains an optical MPO-16 connector for the optical interface and a 60-pin connector for the electrical interface. Host FEC is required to support up to 70m OM3 multi-mode fiber transmission. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet harshest external operating conditions including temperature, humidity and EMI interference.
Features
● QSFP-DD MSA compliant
● 8 parallel lanes on 850nm center wavelength
● Compliant to IEEE 802.3bs Specification
● Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC
● Operating case temperature: 0 to 70oC
● 8x53.125Gb/s electrical interface (400GAUI-8)
● Data Rate 53.125Gbps (PAM4) per channel.
● Maximum power consumption 12W
● MPO-16 connector
● RoHS compliant

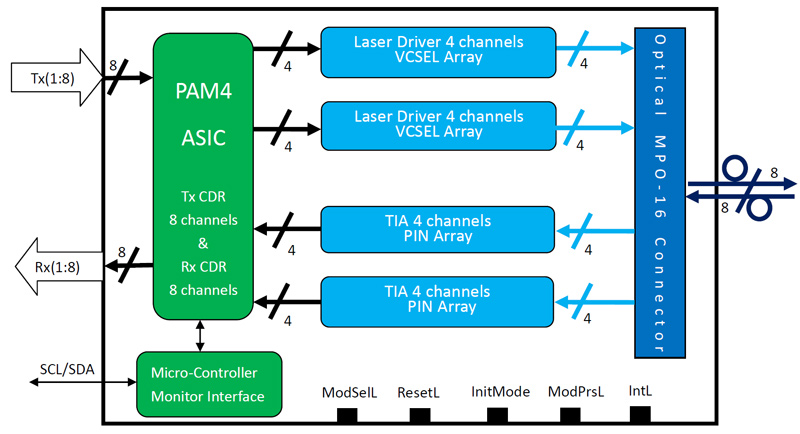

Transceiver Block Diagram
Figure 1. Transceiver Block Diagram
Optical interface and Pin Assignment

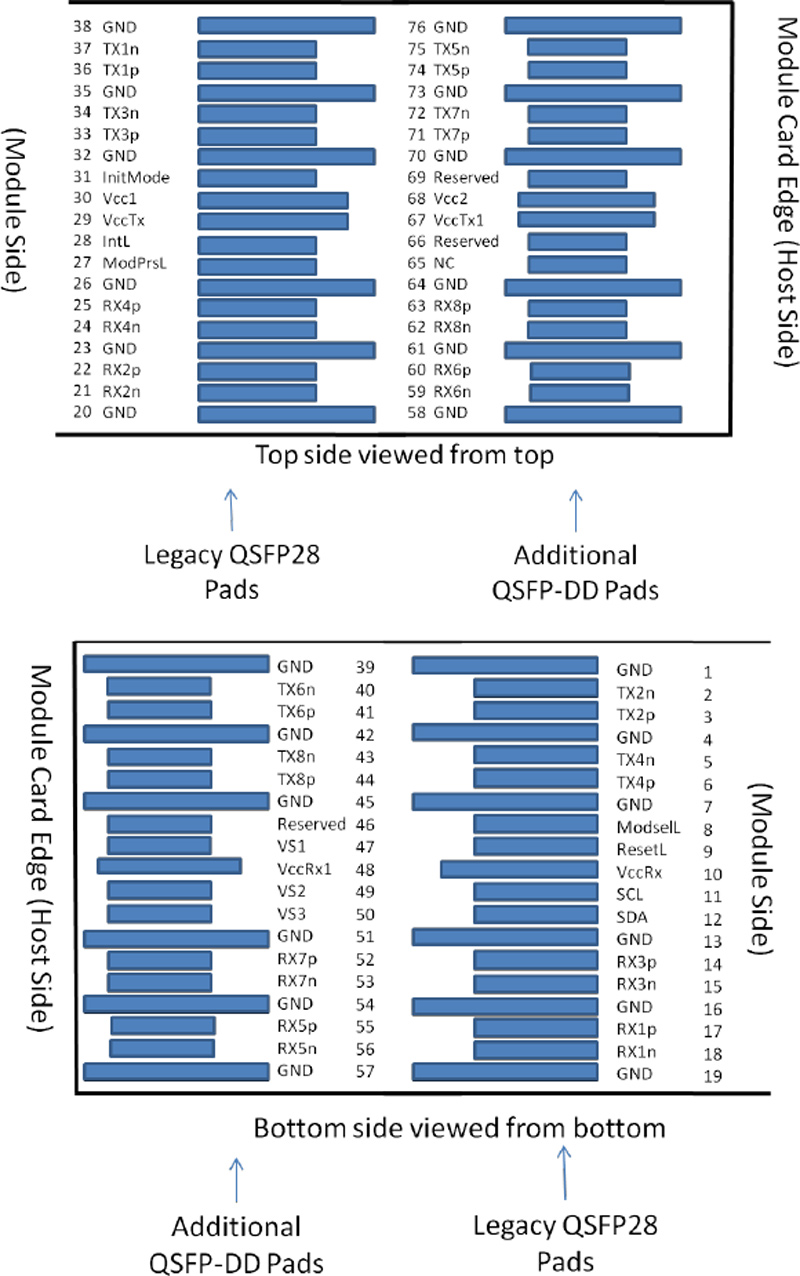

The electrical pinout of the QSFP-DD module is shown as Figure 2. And Figure 3 shows the optical interface of MPO-16.
Figure 2. MSA Compliant Connector

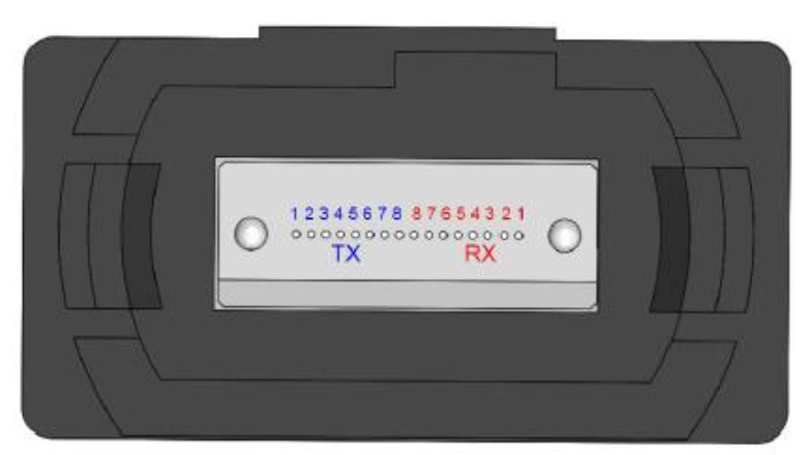

Figure 3. MPO-16 Optical Connector Interface
Pin Definition
Pin | Logic | Symbol | Deion | Plug Sequence |
1 | GND | Ground | 1B | |
2 | CML-I | Tx2n | Transmitter Inverted Data Input | 3B |
3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input | 3B |
4 | GND | Ground | 1B | |
5 | CML-I | Tx4n | Transmitter Inverted Data Input | 3B |
6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | 3B |
7 | GND | Ground | 1B | |
8 | LVTTL-I | ModSelL | Module Select | 3B |
9 | LVTTL-I | ResetL | Module Reset | 3B |
10 | VccRx | +3.3V Power Supply Receiver | 2B | |
11 | LVCMOS- I/O | SCL | 2-wire serial interface clock | 3B |
12 | LVCMOS- I/O | SDA | 2-wire serial interface data | 3B |
13 | GND | Ground | 1B | |
14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | 3B |
15 | CML-O | Rx3n | Receiver Inverted Data Output | 3B |
16 | GND | Ground | 1B | |
17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | 3B |
18 | CML-O | Rx1n | Receiver Inverted Data Output | 3B |
19 | GND | Ground | 1B | |
20 | GND | Ground | 1B | |
21 | CML-O | Rx2n | Receiver Inverted Data Output | 3B |
22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | 3B |
23 | GND | Ground | 1B | |
24 | CML-O | Rx4n | Receiver Inverted Data Output | 3B |
25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | 3B |
26 | GND | Ground | 1B | |
27 | LVTTL-O | ModPrsL | Module Present | 3B |
28 | LVTTL-O | IntL | Interrupt | 3B |
29 | VccTx | +3.3V Power supply transmitter | 2B | |
30 | Vcc1 | +3.3V Power supply | 2B | |
31 | LVTTL-I | InitMode | Initialization mode; In legacy QSFP applications, the InitMode pad is called LPMODE | 3B |
32 | GND | Ground | 1B | |
33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | 3B |
34 | CML-I | Tx3n | Transmitter Inverted Data Input | 3B |
35 | GND | Ground | 1B | |
36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | 3B |
37 | CML-I | Tx1n | Transmitter Inverted Data Input | 3B |
38 | GND | Ground | 1B | |
39 | GND | Ground | 1A | |
40 | CML-I | Tx6n | Transmitter Inverted Data Input | 3A |
41 | CML-I | Tx6p | Transmitter Non-Inverted Data Input | 3A |
42 | GND | Ground | 1A | |
43 | CML-I | Tx8n | Transmitter Inverted Data Input | 3A |
44 | CML-I | Tx8p | Transmitter Non-Inverted Data Input | 3A |
45 | GND | Ground | 1A | |
46 | Reserved | For future use | 3A | |
47 | VS1 | Module Vendor Specific 1 | 3A | |
48 | VccRx1 | 3.3V Power Supply | 2A | |
49 | VS2 | Module Vendor Specific 2 | 3A | |
50 | VS3 | Module Vendor Specific 3 | 3A | |
51 | GND | Ground | 1A | |
52 | CML-O | Rx7p | Receiver Non-Inverted Data Output | 3A |
53 | CML-O | Rx7n | Receiver Inverted Data Output | 3A |
54 | GND | Ground | 1A | |
55 | CML-O | Rx5p | Receiver Non-Inverted Data Output | 3A |
56 | CML-O | Rx5n | Receiver Inverted Data Output | 3A |
57 | GND | Ground | 1A | |
58 | GND | Ground | 1A | |
59 | CML-O | Rx6n | Receiver Inverted Data Output | 3A |
60 | CML-O | Rx6p | Receiver Non-Inverted Data Output | 3A |
61 | GND | Ground | 1A | |
62 | CML-O | Rx8n | Receiver Inverted Data Output | 3A |
63 | CML-O | Rx8p | Receiver Non-Inverted Data Output | 3A |
64 | GND | Ground | 1A | |
65 | NC | No Connect | 3A | |
66 | Reserved | For future use | 3A | |
67 | VccTx1 | 3.3V Power Supply | 2A | |
68 | Vcc2 | 3.3V Power Supply | 2A | |
69 | Reserved | For Future Use | 3A | |
70 | GND | Ground | 1A | |
71 | CML-I | Tx7p | Transmitter Non-Inverted Data Input | 3A |
72 | CML-I | Tx7n | Transmitter Inverted Data Input | 3A |
73 | GND | Ground | 1A | |
74 | CML-I | Tx5p | Transmitter Non-Inverted Data Input | 3A |
75 | CML-I | Tx5n | Transmitter Inverted Data Input | 3A |
76 | GND | Ground | 1A |

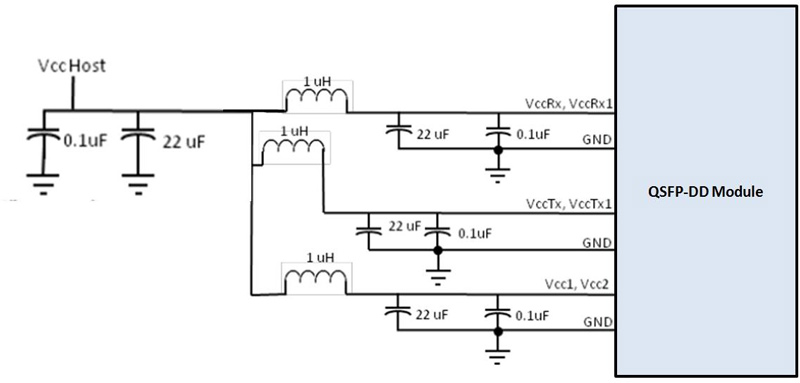

Recommended Power Supply Filter
Figure 4. Recommended Power Supply Filter
Absolute Maximum Ratings
It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.
Parameter | Symbol | Min | Max | Units | Notes |
Storage Temperature | TS | -40 | 85 | degC | |
Operating Case Temperature | TOP | 0 | 70 | degC | |
Power Supply Voltage | VCC | -0.5 | 3.6 | V | |
Relative Humidity (non-condensation) | RH | 0 | 85 | % |
Recommended Operating Conditions and Power Supply Requirements
Parameter | Symbol | Min | Typical | Max | Units | Notes |
Operating Case Temperature | TOP | 0 | 70 | degC | ||
Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
Data Rate, each Lane | 26.5625 | GBd | PAM4 | |||
Data Rate Accuracy | -100 | 100 | ppm | |||
Pre-FEC Bit Error Ratio | 2.4x10-4 | |||||
Post-FEC Bit Error Ratio | 1x10-12 | 1 | ||||
Link Distance with OM3 | D | 0.5 | 100 | m | 2 |
Notes:
1. FEC provided by host system.
2. FEC required on host system to support maximum distance.
Electrical Characteristics
The following electrical acteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Test | Min | Typical | Max | Units | Notes | |||||||
Point | |||||||||||||
Power Consumption | 12 | W | |||||||||||
Supply Current | Icc | 3.63 | A | ||||||||||
Transmitter (each Lane) | |||||||||||||
Signaling Rate, each Lane | TP1 | 26.5625 ± 100 ppm | GBd | ||||||||||
Differential pk-pk Input Voltage Tolerance | TP1a | 900 | mVpp | 1 | |||||||||
Differential Termination Mismatch | TP1 | 10 | % | ||||||||||
IEEE 802.3- | |||||||||||||
Differential Input Return Loss | TP1 | 2015 | dB | ||||||||||
Equation | |||||||||||||
-8.30E-04 | |||||||||||||
IEEE 802.3- | |||||||||||||
Differential to Common Mode Input Return Loss | TP1 | 2015 | dB | ||||||||||
Equation | |||||||||||||
-8.30E-05 | |||||||||||||
Module Stressed Input Test | TP1a | See IEEE 802.3bs 120E.3.4.1 | 2 | ||||||||||
Single-ended Voltage Tolerance Range (Min) | TP1a | -0.4 to 3.3 | V | ||||||||||
DC Common Mode Input Voltage | TP1 | -350 | 2850 | mV | 3 | ||||||||
Receiver (each Lane) | |||||||||||||
Signaling Rate, each lane | TP4 | 26.5625 ± 100 ppm | GBd | ||||||||||
Differential Peak-to-Peak Output Voltage | TP4 | 900 | mVpp | ||||||||||
AC Common Mode Output Voltage, RMS | TP4 | 17.5 | mV | ||||||||||
Differential Termination Mismatch | TP4 | 10 | % | ||||||||||
IEEE 802.3- | |||||||||||||
Differential Output Return Loss | TP4 | 2015 | |||||||||||
Equation | |||||||||||||
-8.30E-01 | |||||||||||||
IEEE 802.3- | |||||||||||||
Common to Differential Mode Conversion Return Loss | TP4 | 2015 | |||||||||||
Equation | |||||||||||||
-8.30E-02 | |||||||||||||
Transition Time, 20% to 80% | TP4 | 9.5 | ps | ||||||||||
Near-end Eye Symmetry Mask | TP4 | 0.265 | UI | ||||||||||
Width (ESMW) | |||||||||||||
Near-end Eye Height, | TP4 | 70 | mV | ||||||||||
Differential | |||||||||||||
Far-end Eye Symmetry Mask | TP4 | 0.2 | UI | ||||||||||
Width (ESMW) | |||||||||||||
Far-end Eye Height, Differential | TP4 | 30 | mV | ||||||||||
Far-end Pre-cursor ISI Ratio | TP4 | -4.5 | 2.5 | % | |||||||||
Common Mode Output Voltage (Vcm) | TP4 | -350 | 2850 | mV | 3 |
Notes:
1. With the exception to IEEE 802.3bs 120E.3.1.2 that the pattern is PRBS31Q or scrambled idle.
2. Meets BER specified in IEEE 802.3bs 120E.1.1.
3. DC common mode voltage generated by the host. Specification includes effects of ground offset voltage.
Optical Characteristics
Parameter | Symbol | Min | Typical | Max | Units | Notes |
Transmitter | ||||||
Center Wavelength | λC | 840 | 850 | 860 | nm | |
Data Rate, each Lane | 26.5625 ± 100 ppm | GBd | ||||
Modulation Format | PAM4 | |||||
RMS Spectral Width | ∆λrms | 0.6 | nm | Modulated | ||
Average Launch Power, each Lane | PAVG | -6.5 | 4 | dBm | 1 | |
Outer Optical Modulation | ||||||
Amplitude (OMAouter), each Lane | POMA | -4.5 | 3 | dBm | 2 | |
Launch Power in OMAouter minus TDECQ, each Lane | -5.9 | dB | ||||
Transmitter and Dispersion Eye Clouser for PAM4, each Lane | ||||||
TDECQ | 4.5 | dB | ||||
Extinction Ratio | ER | 3 | dB | |||
Optical Return Loss | TOL | 12 | dB | |||
Tolerance | ||||||
Average Launch Power of OFF Transmitter, each Lane | Poff | -30 | dBm | |||
Encircled Flux | ≥ 86% at 19 μm | |||||
≤ 30% at 4.5 μm | ||||||
Receiver | ||||||
Center Wavelength | λC | 840 | 850 | 860 | nm | |
Data Rate, each Lane | 26.5625 ± 100 ppm | GBd | ||||
Modulation Format | PAM4 | |||||
Damage Threshold, each Lane | THd | 5 | dBm | 3 | ||
Average Receive Power, each | -7.9 | 4 | dBm | 4 | ||
Lane | ||||||
Receive Power (OMAouter), each Lane | 3 | dBm | ||||
Receiver Sensitivity | SEN | -6.5 | dBm | 5 | ||
(OMAouter), each Lane | ||||||
Stressed Receiver Sensitivity | SRS | -3 | dBm | 6 | ||
(OMAouter), each Lane | ||||||
Receiver Reflectance | RR | -12 | dB | |||
LOS Assert | LOSA | -30 | dBm | |||
LOS De-assert | LOSD | -12 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dB | |||
Stressed Conditions for Stress Receiver Sensitivity (Note 7) | ||||||
Stressed Eye Closure for PAM4 (SECQ), Lane under Test | 4 | dB | ||||
OMAouter of each Aggressor Lane | 3 | dBm |
Notes:
1. Average launch power, each lane (min) is informative and not the principal indicator of signal strength.
A transmitter with launch power below this value cannot be compliant; however,
a value above this does not ensure compliance.
2. Even if the TDECQ < 1 dB, the OMAouter (min) must exceed the minimum value specified here.
3. The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level.
4. Average receive power, each lane (min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant;
however, a value above this does not ensure compliance.
5. Receiver Sensitivity OMAouter, each lane (max) is informative and is defined for a BER of 2.4x10-4.
6. Measured with conformance test signal at receiver input for the BER of 2.4x10-4.
7. These test conditions are for measuring stressed receiver sensitivity. They are not acteristics of the receiver.
Digital Diagnostic Functions
The following digital diagnostic acteristics are defined over the normal operating conditions unless otherwise specified.
Parameter | Symbol | Min | Max | Units | Notes |
Temperature monitors absolute error | Over operating temperature range | ||||
DMI_Temp | -3 | 3 | degC | ||
Supply voltage monitor | DMI _VCC | -0.1 | 0.1 | V | Over full operating |
absolute error | range | ||||
Channel RX power monitor absolute error | |||||
DMI_RX_Ch | -2 | 2 | dB | 1 | |
Channel Bias current | DMI_Ibias_Ch | -10% | 10% | mA | |
monitor | |||||
Channel TX power | DMI_TX_Ch | -2 | 2 | dB | 1 |
monitor absolute error |
Notes:
1. Due to measurement accuracy of different fibers, there could be an additional +/-1 dB fluctuation, or a +/- 3 dB total accuracy.

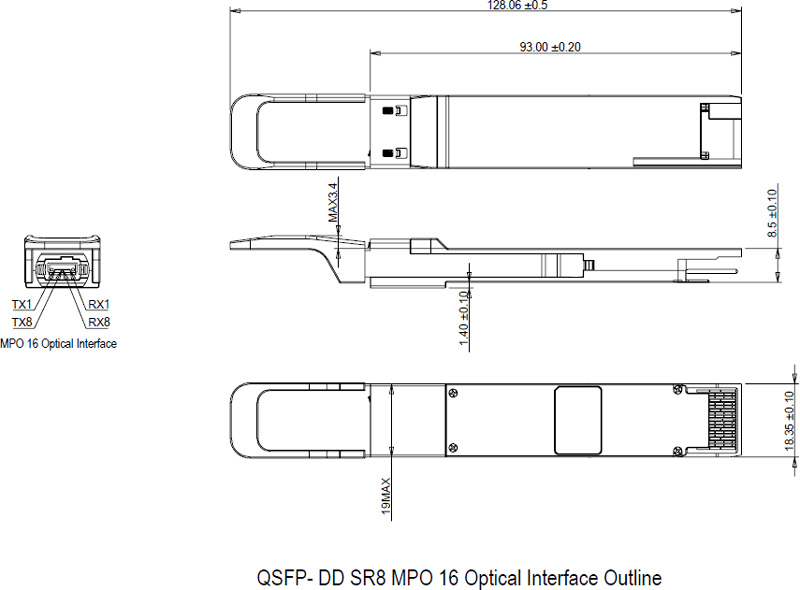

Outline Drawing (mm)
Applications
● Data Center Interconnect
● 400G Ethernet
● InfiniBand interconnects
● Enterprise networking
